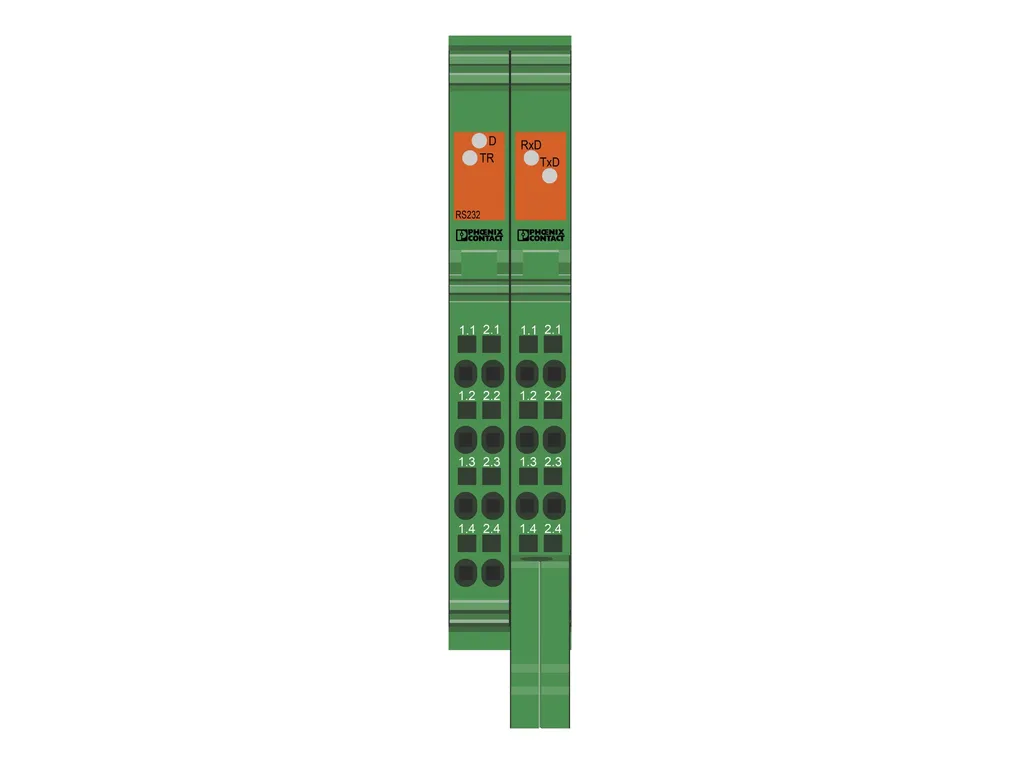

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8f49d2b498684640a945b59e148b2698/-S204x204-FJPG Width: 24.4 mm Height: 136.8 mm Depth: 71.5 mm |
| Interfaces | Inline local bus Connection method: Inline data jumper Transmission speed: 500 kbps RS-232 Number of interfaces: 1 Connection method: Spring-cage connection Transmission speed: 110 bps ... 38400 bps (can be parameterized) Transmission physics: Copper Data bits: 7 or 8 Stop bits: 1 or 2 Input buffer: 4 kByte Output buffer: 1 kByte |
| System properties | Module ID code (dec.): 220 ID code (hex): DC Length code (hex): 01 Length code (dec): 01 Process data channel: 16 bit Input address area: 2 Byte Output address area: 2 Byte Register length: 6 Byte Required parameter data: 27 Byte Required configuration data: 5 Byte |
| Product properties | Type: modular Product type: I/O component Product family: Inline |
| Electrical properties | Maximum power dissipation for nominal condition: 5.4 W Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 225 mA (all connections of the serial interface are short-circuited) typ. 155 mA |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINEN61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINEN61131-2) |
| Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Mounting | Mounting type: DIN rail mounting |
| ECLASS | ECLASS-11.0: 27242605 ECLASS-12.0: 27242605 ECLASS-13.0: 27242608 |
| ETIM | ETIM 9.0: EC001601 |
| UNSPSC | UNSPSC 21.0: 32151600 |
