| Dimensions | Width: 48.8 mm Height: 119.5 mm Depth: 71.5 mm Note on dimensions: Housing dimensions |
| Interfaces | Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 2 Mbps |
| System properties | Module ID code (dec.): 189 ID code (hex): BD Length code (hex): 81 Length code (dec): 129 Process data channel: 8 bit Input address area: 0 Byte Output address area: 1 Byte Register length: 8 bit Required parameter data: 3 Byte Required configuration data: 4 Byte |

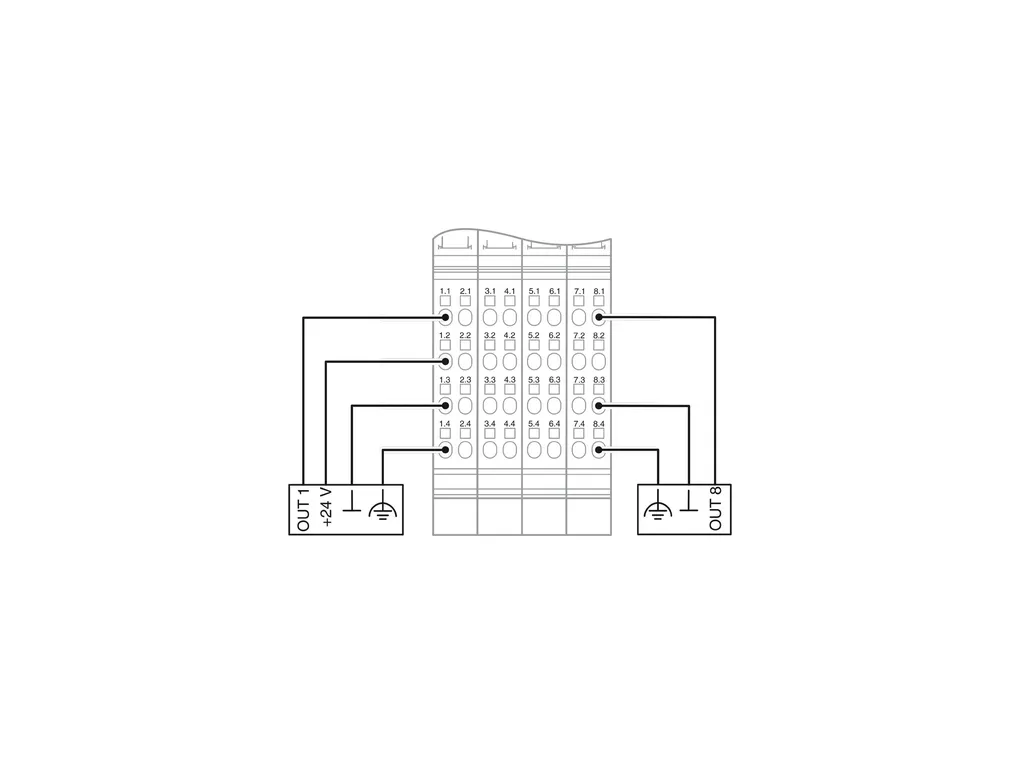

| Output data | Digital Output name: Digital outputs Connection method: Spring-cage connection Connection technology: 4-conductor Number of outputs: 8 Protective circuit: Overload protection, short-circuit protection of outputs Output voltage: 24 VDC (US - 1 V) Maximum output current per channel: 500 mA Maximum output current per module: 4 A Nominal output voltage: 24 VDC (voltage difference at Inom ⤠1 V) Nominal load, inductive: 12 W Nominal load, lamp: 12 W Nominal load, ohmic: 12 W Behavior with overload: Auto restart Behavior with inductive overload: Output can be destroyed Behavior at voltage switch-off: The output follows the power supply without delay |
| Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields Diagnostics messages: Short-circuit or overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module |
| Electrical properties | Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 85 mA Power consumption: 0.64 W Potentials: Segment circuit supply (U Supply voltage: 24 VDC (via voltage jumper) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 4 A Electrical isolation/isolation of the voltage ranges Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics): 500 VAC, 50 Hz, 1 min. Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics): 500 VAC, 50 Hz, 1 min. Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O): 500 VAC, 50 Hz, 1 min. Test voltage: 24V supply (I/O) / functional ground: 500 VAC, 50 Hz, 1 min. |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINEN61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINEN61131-2) |
| Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Mounting | Mounting type: DIN rail mounting |
| ECLASS | ECLASS-11.0: 27242604 ECLASS-12.0: 27242604 ECLASS-13.0: 27242604 |
| ETIM | ETIM 9.0: EC001599 |
| UNSPSC | UNSPSC 21.0: 32151600 |
