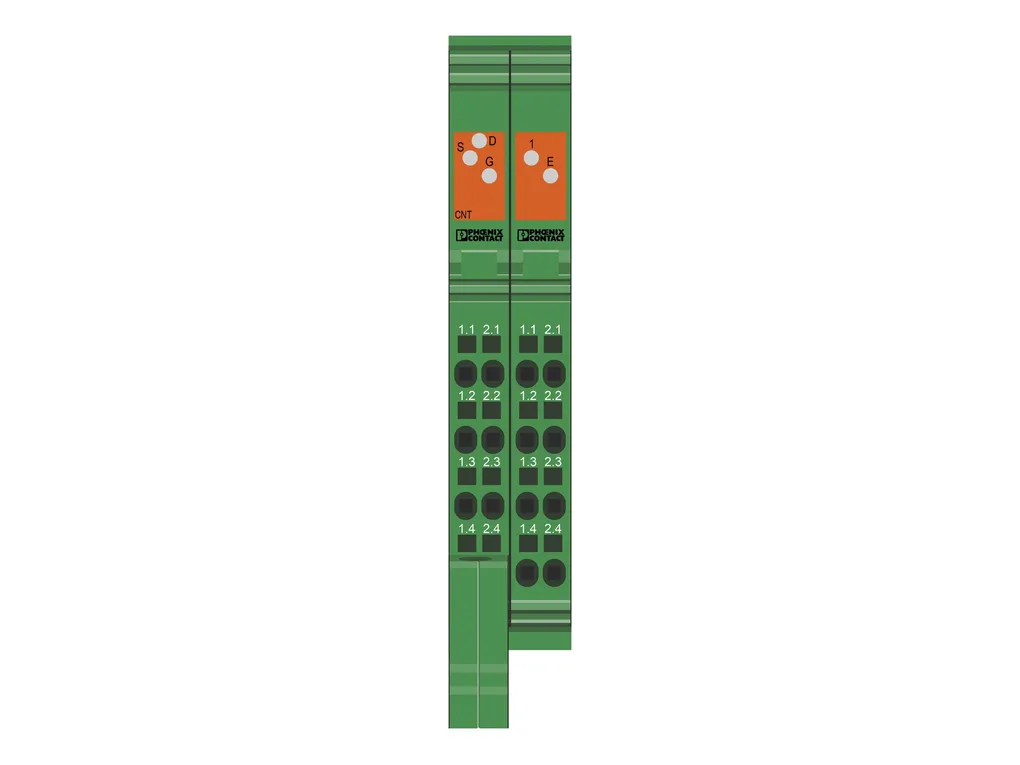

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/20a984302842e949b5ce7beb58df3766/-S204x204-FJPG Width: 24.4 mm Height: 135 mm Depth: 71.5 mm |
Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
Interfaces | Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps Transmission physics: Copper |
System properties | Module ID code (dec.): 191 ID code (hex): BF Length code (hex): 02 Length code (dec): 02 Process data channel: 32 bit Input address area: 4 Byte Output address area: 4 Byte Register length: 4 Byte Required parameter data: 1 Byte Required configuration data: 5 Byte |
Input data | Counter Input name: Counter input for 24 V signals Connection method: Spring-cage connection Connection technology: 2-, 3-conductor Number of inputs: 1 (only one counter input can be used, either for 24 V or for 5 V signals) Operating mode: Event counting, frequency/time measurement Input voltage: 24 VDC (Nominal voltage) 30 VDC (maximum) Input voltage range "0" signal: 0 VDC ... 5 VDC Input voltage range "1" signal: 15 VDC ... 30 VDC Input frequency: max. 100 kHz Input current: typ. 5 mA Input resistance: approx. 5.7 ké Counterâ Input name: Counter input for 5 V signals Connection method: Spring-cage connection Connection technology: 2-conductor (shielded), external 5 V supply Number of inputs: 1 (only one counter input can be used, either for 24 V or for 5 V signals) Operating mode: Event counting, frequency/time measurement Input voltage: 5 VDC (Nominal voltage) 8 VDC (maximum) Input voltage range "0" signal: 0 V ... 1.5 V Input voltage range "1" signal: 3.5 V ... 8 V Input frequency: max. 100 kHz Input current: typ. 5 mA Input resistance: approx. 1.7 ké |
Output data | Digital Output name: Switching output Connection method: Spring-cage connection Connection technology: 2-conductor Number of outputs: 1 Protective circuit: Short-circuit protection; Yes, short-circuit-proof (automatically switched on again) Overload protection Output voltage: 24 VDC (Nominal voltage) Output current: max. 0.5 A (Nominal current) Nominal load, inductive: max. 12 VA (1.2 H, 48 é) Nominal load, lamp: max. 12 W Nominal load, ohmic: max. 12 W (48é) Reverse voltage resistance to short pulses: Reverse voltage proof Behavior in the event of ohmic overload: Auto restart after eliminating the overload Behavior with inductive overload: Output can be destroyed Behavior in the event of lamp overload: Auto restart after eliminating the overload Overcurrent shut-down: min. 0.7 A |
Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields Operating mode: Process data operation with 2 words Diagnostics messages: Sensor supply short-circuit Sensor supply overload |
Electrical properties | Maximum power dissipation for nominal condition: 1.2 W Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 50 mA typ. 40 mA Power consumption: max. 0.375 W Potentials: Segment circuit supply (U Supply voltage: 24 VDC (via voltage jumper) Current draw: max. 1 A min. 0 A (without connected peripherals) Supply: Designation: Power supply for sensors Supply voltage: 24 VDC (generated from segment supply US) Electrical isolation/isolation of the voltage ranges Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O): 500 VAC, 50 Hz, 1 min. Test voltage: 7.5V supply (bus logic)/functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: 24V supply (I/O) / functional ground: 500 VAC, 50 Hz, 1 min. |
Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing) |
Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
Mounting | Mounting type: DIN rail mounting |
ECLASS | ECLASS-11.0: 27242605 ECLASS-12.0: 27242605 ECLASS-13.0: 27242605 |
ETIM | ETIM 9.0: EC001601 |
UNSPSC | UNSPSC 21.0: 32151600 |
