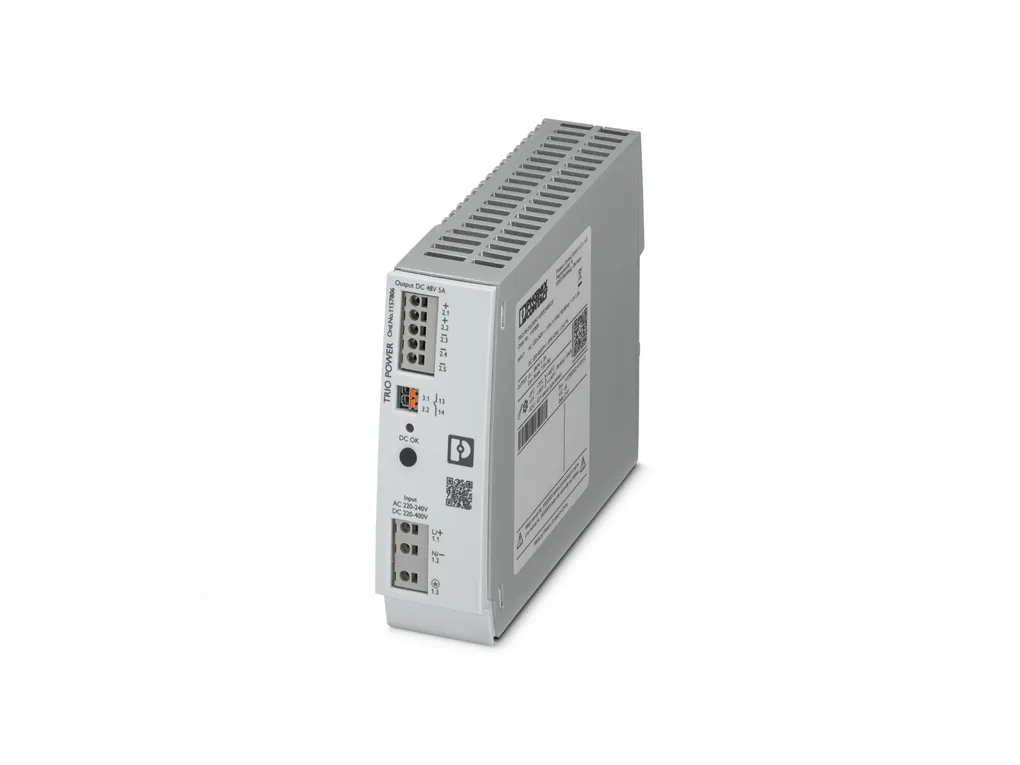

2866381 PHOENIX CONTACT - Technology Bsa

Input data	AC operation Nominal input voltage range: 100 VÃAC ... 240 VÃAC Input voltage range: 85 VÃAC ... 264 VÃAC (Derating < 90 V AC: 2,5 %/V) Derating: < 90 VÃAC (2.5Ã%/V) Input voltage range AC: 85 VÃAC ... 264 VÃAC (Derating < 90 V AC: 2,5 %/V) Electric strength, max.: 300 VÃAC Voltage type of supply voltage: AC Inrush current: < 15 A Inrush current integral (I²t): 1.4 A²s AC frequency range: 45 Hz ... 65 Hz Mains buffering time: > 13 ms (120ÃVÃAC) > 13 ms (230 V AC) Current consumption: 4.6 A (120ÃVÃAC) 2.4 A (230 V AC) Nominal power consumption: 533 VA Protective circuit: Transient surge protection; Varistor Power factor (cos phi): 0.99 Typical response time: < 1 s Input fuse: 10 A (slow-blow, internal) Permissible backup fuse: B16 Recommended breaker for input protection: 16 A (Characteristics B, C, D, K) Discharge current to PE: < 3.5 mA
Output data	Efficiency: 91 % (for 230 V AC and nominal values) Output characteristic: U/I Nominal output voltage: 24 VÃDC Ã±1Ã% Setting range of the output voltage (U_Set): 22.5 VÃDC ... 29.5 VÃDC (> 24 VÃDC, constant capacity restricted) Nominal output current (I_N): 20 A (U_OUT = 24 V DC) Derating: 55°C ... 70°C (2.5%/K) Feedback voltage resistance: 35 VÃDC Protection against overvoltage at the output (OVP): < 35 VÃDC Max. capacitive load: unlimited Active current limitation: Approx. 25 A (for short-circuit) Control deviation: < 1 % (change in load, static 10 % ... 90 %) < 2 % (change in load, dynamic 10 % ... 90 %) < 0.1 % (change in input voltage Ã±10 %) Residual ripple: < 10 mV_PP Output power: 480 W Peak switching voltages nominal load: < 80 mV_PP Maximum no-load power dissipation: 4 W Power loss nominal load max.: 46 W Rise time: < 2 ms (U_OUT (10 % ... 90 %)) Connection in parallel: yes, for redundancy and increased capacity Connection in series: yes
Connection data	Input Connection method: Screw connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 2.5 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 2.5 mm² Conductor cross section AWG min.: 24 Conductor cross section AWG max.: 14 Stripping length: 9 mm Screw thread: M2,5 Tightening torque, min: 0.4 Nm Tightening torque max: 0.5 Nm Output Connection method: Screw connection Conductor cross section, rigid min.: 0.5 mm² Conductor cross section, rigid max.: 6 mm² Conductor cross section flexible min.: 0.5 mm² Conductor cross section flexible max.: 4 mm² Conductor cross section AWG min.: 20 Conductor cross section AWG max.: 10 Stripping length: 14 mm Screw thread: M3 Tightening torque, min: 0.5 Nm Tightening torque max: 0.6 Nm
Signaling	Types of signaling: LED Operating voltage display: Green LED Signal output Status display: "DC OK" LED green Note on status display: U_OUT > 21.5 V: LED lights up
Electrical properties	Insulation voltage input/output: 4 kV AC (type test) 2 kV AC (routine test) 2 kV (routine test) Insulation voltage output / PE: 500 VÃDC (type test) Insulation voltage input / PE: 2 kV AC (type test) 2 kV AC (routine test) Insulation voltage input, output / housing: 4 kV (type test)
Product properties	Product type: Power supply Product family: TRIO POWER MTBF (IEC 61709, SN 29500): > 915000 h Insulation characteristics Protection class: I (with PE connection) Overvoltage category: III Degree of pollution: 2
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/688a44da5e666d4e8acd726a889bc6b0/-S204x204-FJPG Width: 115 mm Height: 130 mm Depth: 152.5 mm Installation dimensions Installation distance right/left: 0 mm / 0 mm Installation distance top/bottom: 50 mm / 50 mm
Mounting	Mounting type: DIN rail mounting Assembly instructions: alignable: horizontally 0Ãmm, vertically 50Ãmm Mounting position: horizontal DIN rail NS 35, EN 60715 With protective coating: No
Material specifications	Housing material: Metal Type of housing: Steel sheet, zinc-plated Side element version: Aluminum
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 70°C (> 55° C derating : 2.5%/K) Ambient temperature (storage/transport): -40°C ... 85°C Climatic class: 3K3 (in acc. with EN 60721) Max. permissible relative humidity (operation): Ã¢Ã¢°¤ 95 % (at 25°C, non-condensing) Shock: 18 ms, 30g, in each space direction (according to IEC 60068-2-27) Vibration (operation): < 15 Hz, amplitude Ã±2.5 mm (according to IEC 60068-2-6) 15 Hz ... 150 Hz, 2.3g, 90 min.
Standards and regulations	Standard Ã¢Ã¢¬Ã¢ Electronic equipment for use in electrical power installations and their assembly into electrical power installations: ENÃ50178/VDEÃ0160 (PELV) Standard Ã¢Ã¢¬Ã¢ Limitation of mains harmonic currents: ENÃ61000-3-2 Standard - Electrical safety: ENÃ60950-1/VDEÃ0805 (SELV) Standard Ã¢Ã¢¬Ã¢ Protection against shock currents, basic requirements for protective separation in electrical equipment: ENÃ50178 Standard Ã¢Ã¢¬Ã¢ Safety extra-low voltage: ENÃ60950-1 (SELV) ENÃ60204 (PELV) Standard - Safe isolation: DINÃVDEÃ0100-410
Approvals	UL approvals: UL/C-UL listed ULÃ508 UL/C-UL Recognized ULÃ60950-1 Conformity/Approvals SIL in accordance with IEC 61508: 0
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive 2014/35/EC EMC requirements for noise emission: ENÃ61000-6-3 ENÃ61000-6-4 EMC requirements for noise immunity: ENÃ61000-6-1 ENÃ61000-6-2 Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU Electrostatic discharge Standards/regulations: ENÃ61000-4-2 Electrostatic dischargeÃ¢Ã¢¬Ã¢¹ Contact discharge: 8 kV (Test Level 4) Discharge in air: 8 kV (Test Level 3) Comments: Criterion A Electromagnetic HF field Standards/regulations: ENÃ61000-4-3 Electromagnetic HF fieldÃ¢Ã¢¬Ã¢¹ Frequency range: 80 MHz ... 1 GHz 1 GHz ... 2 GHz 2 GHz ... 3 GHz Test field strength: 10 V/m Comments: Criterion A Fast transients (burst) Standards/regulations: ENÃ61000-4-4 Fast transients (burst)Ã¢Ã¢¬Ã¢¹ Input: 4 kV (Test Level 4 - asymmetrical) Output: 4 kV (Test Level 4 - asymmetrical) Signal: 2 kV (Test Level 3 - asymmetrical) Comments: Criterion A Surge voltage load (surge) Standards/regulations: ENÃ61000-4-5 Input: 2 kV (Test Level 3 - symmetrical) 4 kV (Test Level 4 - asymmetrical) Output: 1 kV (Test Level 2 - symmetrical) 2 kV (Test Level 3 - asymmetrical) Comments: Criterion A Conducted interference Standards/regulations: ENÃ61000-4-6 Conducted interferenceÃ¢Ã¢¬Ã¢¹ Frequency range: 0.15 MHz ... 80 MHz Comments: Criterion A Voltage: 10 V (Test Level 3) Conducted interferenceÃ¢Ã¢¬Ã¢¹Ã¢Ã¢¬Ã¢¹ Frequency range: 0.15 MHz ... 80 MHz Comments: Criterion A Voltage: 10 V (Test Level 3) Voltage dips Standards/regulations: ENÃ61000-4-11 Emitted interference Standards/regulations: ENÃ61000-6-3 Radio interference voltage in acc. with EN 55011: ENÃ55011 (ENÃ55022) ClassÃB, area of application: Industry and residential Emitted radio interference in acc. with EN 55011: EN 55011 (EN 55022) Class B, area of application: Industry and residential
