IB IL AO 4/8/U/BP-2MBD-PAC - Analog module
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)

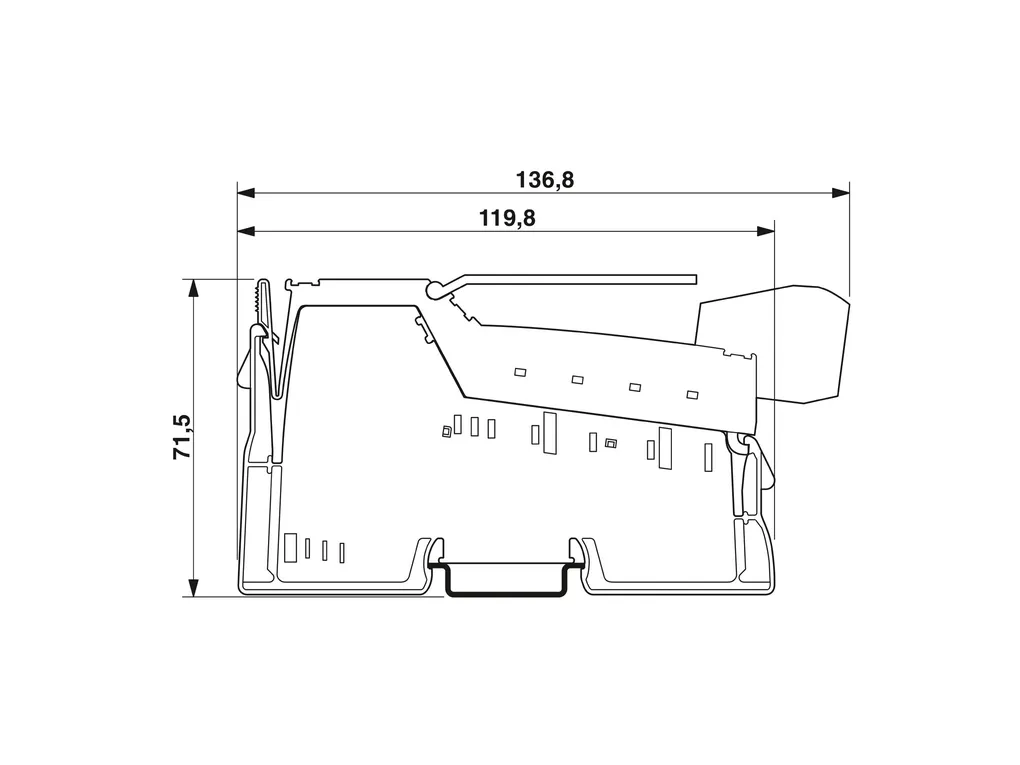

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8f49d2b498684640a945b59e148b2698/-S204x204-FJPG Width: 48.8 mm Height: 136.8 mm Depth: 71.5 mm |
Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
Interfaces | Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 2 Mbps Transmission physics: Copper |
System properties | Module ID code (dec.): 223 ID code (hex): DF Length code (hex): 05 Length code (dec): 05 Process data channel: 80 bit Input address area: 10 Byte Output address area: 10 Byte Register length: 96 bit Required parameter data: 27 Byte Required configuration data: 5 Byte |
Output data | Analog Output name: Analog outputs Connection technology: 2-conductor Note regarding the connection technology: shielded Number of outputs: 8 D/A converter resolution: 16 bit Protective circuit: Transient protection of outputs Data formats: IB IL, IB ST, IB RT, standardized representation, S7 compatible Representation of output values: 16 bits (15 bits + sign) Process data update: < 2 ms (depends on operating mode) Load/output load current output: > 2 ké Voltage output signal: 0 V ... 10 V -10 V ... 10 V 0 V ... 5 V -5 V ... 5 V Load/output load voltage output: > 2 ké 0.05% |
Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields |
Electrical properties | Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 120 mA typ. 100 mA Potentials: Supply of analog modules (U Supply voltage: 24 VDC (via voltage jumper) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 95 mA typ. 72 mA |
Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINEN61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINEN61131-2) |
Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
Mounting | Mounting type: DIN rail mounting |
ECLASS | ECLASS-11.0: 27242601 ECLASS-12.0: 27242601 ECLASS-13.0: 27242601 |
ETIM | ETIM 9.0: EC001596 |
UNSPSC | UNSPSC 21.0: 32151600 |
