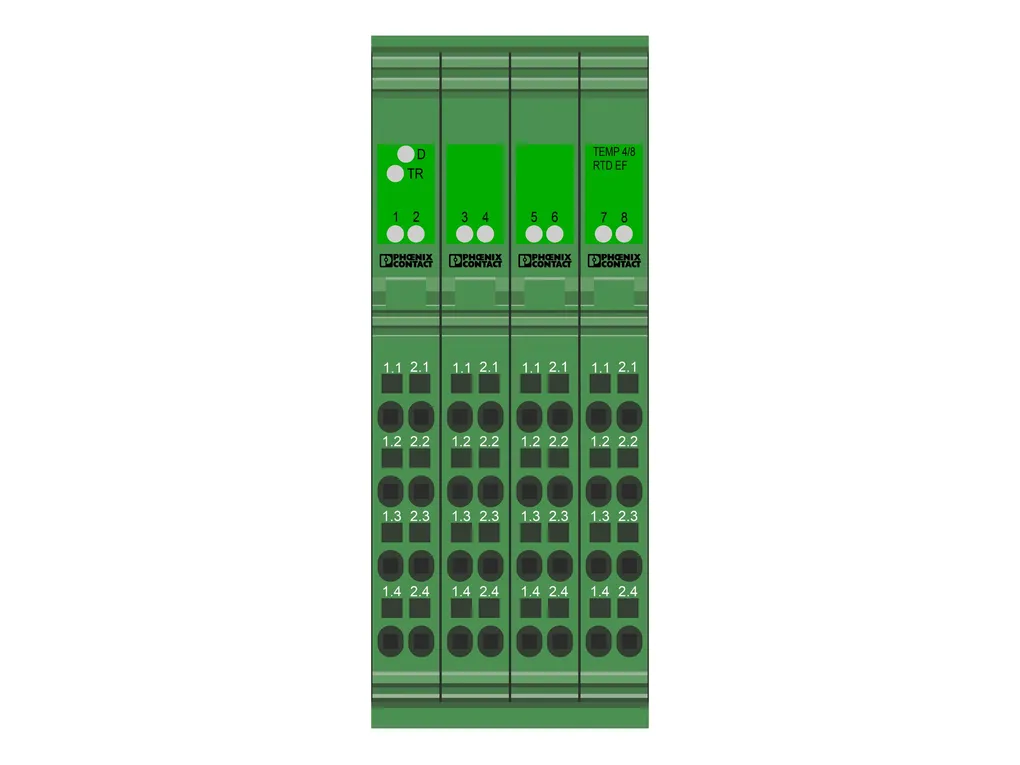

2897402 PHOENIX CONTACT - Technology Bsa

Tecnichal data

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2182c65be3908e489150116208cdf69e/-S204x204-FJPG Width: 48.8 mm Height: 119.8 mm Depth: 71.5 mm Note on dimensions: Housing dimensions
Notes	Utilization restriction CCCex note: Use in potentially explosive areas is not permitted in China.
Interfaces	Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps Transmission physics: Copper
System properties	Module ID code (dec.): 223 ID code (hex): DF Length code (hex): 05 Length code (dec): 05 Process data channel: 80 bit Input address area: 10 Byte Output address area: 10 Byte Register length: 96 bit Required parameter data: 31 Byte Required configuration data: 5 Byte
Input data	Analog Input name: Analog RTD inputs Description of the input: Input for resistive temperature sensors Number of inputs: 8 (for resistance temperature detectors) Connection method: Spring-cage connection Connection technology: 4-conductor Note regarding the connection technology: shielded A/D converter resolution: 24 bit Sensor types (RTD) that can be used: Pt, Ni, KTY, Cu sensors, linear resistors Data formats: IB IL, S7-compatible Measuring principle: Sigma/Delta process Measured value representation: 16 bits (15 bits + sign bit) Input filter time: 100 ms 120 ms 200 ms 480 ms (adjustable) Differential non-linearity: typ. 1ppm / ±0.0001% (in all ranges) Integral non-linearity: typ. 30ppm / ±0.003% (Pt 100) typ. 20ppm / ±0.002% (R_Lin 500Ã©) typ. 200ppm / ±0.02% (R_Lin 5000Ã©) Linear resistance measuring range: 0 Ã© ... 500 Ã© 0 Ã© ... 5 kÃ© 0 Ã© ... 30 kÃ© Process data update: 1.8 s (Up to 3.3 s possible depending on operating mode)
Product properties	Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields Operating mode: Process data mode with 5 words/1 word PCP Diagnostics messages: Failure of the internal I/O supply I/O error message sent to the bus coupler Failure of or insufficient communications power U_L I/O error message sent to the bus coupler User error Error message in the process data Insulation characteristics Overvoltage category: II (IEC 60664-1, EN60664-1) Pollution degree: 2 (IEC 60664-1, EN60664-1)
Electrical properties	Maximum power dissipation for nominal condition: 0.59 W Potentials Power consumption: typ. 0.85 W (entire device) Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 120 mA typ. 95 mA Potentials: Supply of analog modules (U Supply voltage: 24 VDC (via voltage jumper) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 15 mA typ. 6 mA Electrical isolation/isolation of the voltage ranges Test voltage: 7.5 V supply (bus logic), 24 V supply U_ANA / I/O: 500 VAC, 50 Hz, 1 min. Test voltage: 7.5V supply (bus logic), 24V supply U_ANA/ functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: I/O/functional ground: 500 VAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing)
Standards and regulations	Protection class: III (IEC 61140, EN61140, VDE0140-1)
Mounting	Mounting type: DIN rail mounting

Technical Specs

ECLASS	ECLASS-11.0: 27242601 ECLASS-12.0: 27242601 ECLASS-13.0: 27242601
ETIM	ETIM 9.0: EC001596
UNSPSC	UNSPSC 21.0: 32151600
