Product properties | Type: DIN rail module, one-piece Product type: Device circuit breakers Product family: CBM Number of positions: 1 No. of channels: 4 Insulation characteristics Protection class: III Pollution degree: 2 |
Electrical properties | No. of channels: 4 General Operating voltage: 18 VDC ... 30 VDC Rated voltage: 24 VDC Rated current IN: max. 40 ADC 0.5/1/2/4/6/10ADC(adjustable per output channel) Rated current (pre-adjusted): 0.5 A Rated surge voltage: 0.5 kV Tripping method: E (electronic) Feedback resistance: max. 35 VDC Required backup fuse: Only required if Imax of the power supply > the short-circuit switching capacity. Integrated failsafe element. Short-circuit switching capacity: 300 A Dielectric strength: max. 30 VDC (Load circuit) Active current limitation: typ. 2.0 x IN (0.5 - 1A) typ. 1.5 x IN (2 - 10 A) Fuse: electronic Efficiency: > 99 % Closed circuit current I0: typ. 42 mA Power dissipation: 1 W (No-load operation) 9 W (Nominal operation) Module initialization time: 3.3 s Waiting time after switch off of a channel: 10 s (at overload / short circuit) Measuring tolerance I: typ. 40 % (0.5A...1A) typ. 10 % (2 - 10A) Temperature derating: 40 ADC (at 70°C(65°C for UL 2367)) MTBF (IEC 61709, SN 29500): 2001962 h (at 25°C) 1292135 h (at 40°C) 653352 h (at 60°C) Fail-safe element: 15 ADC (per output channel) Load circuit Shutdown time: 0.02 s (> 1.3 x IN) 30 s (1.1 ... 1.3 x IN) Undervoltage switch-off: ⤠17.8 VDC (active) ⥠19 VDC (inactive) Overvoltage switch-off: ⥠30.5 VDC (active) ⤠29.5 VDC (inactive) Max. capacitive load: 75000 µF (per channel at 24VDC) Reset Input voltage range: 7 VDC ... 30 VDC (Reset with falling edge) Current consumption: typ. 0.4 mA (at 24 V DC) Pulse length: ⥠50 ms (High signal) ⥠50 ms (Low signal) Voltage: < 5 VDC (Low signal) > 8 VDC (High signal) Status output Output voltage: 24 VDC Output current: max. 20 mA (when I > 80%at at least one channel) Indicator/remote signaling Connection name: Remote indication circuit Switching function: N/O contact Operating voltage: 0 VDC ... 30 VDC Operating current: 1 mA DC ... 100 mA DC |
Connection data | Main circuit IN+ Connection method: Push-in connection Stripping length: 18 mm Conductor cross section rigid: 0.75 mm² ... 16 mm² Conductor cross section AWG: 20 ... 4 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.75 mm² ... 10 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.75 mm² ... 16 mm² Main circuit IN- Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² Main circuit OUT Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² Remote indication circuit Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² |
Signaling | DC OK LED off: off (No supply voltage) DC OK LED yellow: lit (Undervoltage active, voltage â¤17.8V, active channels switched off and channel LEDs are lit red) flashing (Undervoltage switch-off inactive, device was in undervoltage switch-off) DC OK LED green: lit (Operating voltage in nominal range 18...30V) DC OK LED red: lit (Overvoltage switch-off active, voltage â¥30.5V, channels switched off and channel LEDs are lit red) flashing (Overvoltage switch-off inactive, device was in overvoltage shutdown) Channel LED off: off (Channel switched off) Channel LED yellow: lit (Channel switched on, channel load>80%) Channel LED yellow-green: flashing (Channel switched on, nominal current assistant active) Channel LED green: lit (Channel switched on) flashing (Channel switched on, programming mode active) Channel LED red: lit (Channel switched off, over- or undervoltage active) ON temporarily (Channel switched off, 10s cool-down phase, overload or short-circuit release) flashing (Channel switched off, ready to be switched back on, overload or short-circuit release) Channel LED red-yellow: flashing (Channel switched on, overload mode, capacity approximately 110...130%, shutdown after 30s) Channel LED red-green: flashing (Channel switched off, programming mode active, current adjustment after overload or short-circuit release) |

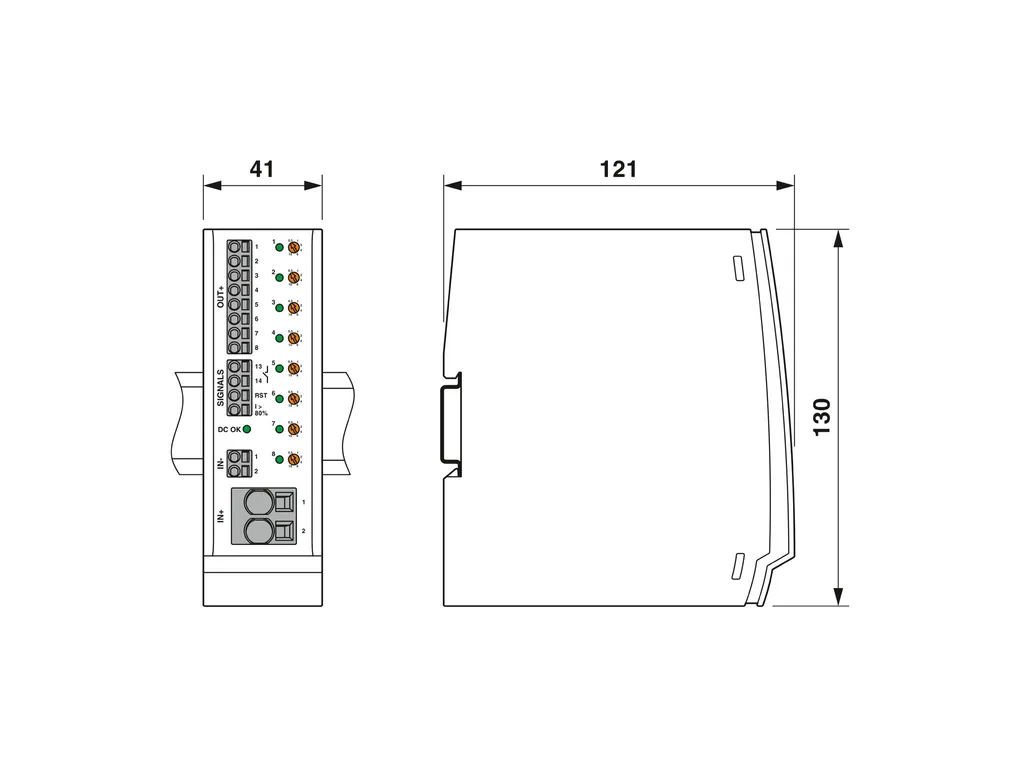

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/935cdde00c7c9d4cba53a37b52925243/-S204x204-FJPG Width: 41 mm Height: 130 mm Depth: 121 mm (incl. DIN rail 7.5mm) |
Material specifications | Material: PC PA 6.6 PC PBT-FR17 POM Flammability rating according to UL 94: V-0 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 70°C (Startup at -40C type-tested) -25°C ... 65°C (for UL 2367) Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ⤠6000 m (amsl) Humidity test: 240 h, 95 % RH, 40°C Shock (operation): 30g (IEC 60068-2-27, Test Ea) Vibration (operation): 5Hz...24.9Hz (Amplitude±1.6mm; in accordance with IEC 60068-2-6, Test Fc) 24.9Hzâ¦150Hz (Acceleration4g; in accordance with IEC 60068-2-6, Test Fc with additional resonance frequency testing in accordance with DNV GL) |
Approvals | UL approval Identification: UL/C-UL Listed UL 508 UL Recognized UL 2367 UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) Shipbuilding approval Identification: DNV GL DNV GL data Temperature: D Humidity: B Vibration: B EMC: A Enclosure: Required protection according to the Rules shall be provided upon installation on board |
Standards and regulations | Standards/specifications: EN61000-6-2 EN61000-6-3 EN60068-2-6 EN60068-2-1 EN60068-2-2 EN60068-2-78 Note: EMC â Immunity for industrial areas EMC â Emission for residential, business and commercial properties and small operations Environmental influences â Vibrations (sinusoidal) Environmental influences â Part 2-1: Tests â Test A: Cold Environmental influences â Part 2-2: Tests â Test B: Dry heat Environmental influences â Moisture and heat, constant |
Mounting | Mounting type: DIN rail: 35 mm |
ECLASS | ECLASS-11.0: 27140401 ECLASS-13.0: 27140401 ECLASS-12.0: 27140401 |
ETIM | ETIM 9.0: EC003538 |
UNSPSC | UNSPSC 21.0: 39121400 |
