| Product properties | Product type: Component housing lower part Product family: UM108 Type: Basic profile Housing type: Press-drawn section housings Housing series: UM |

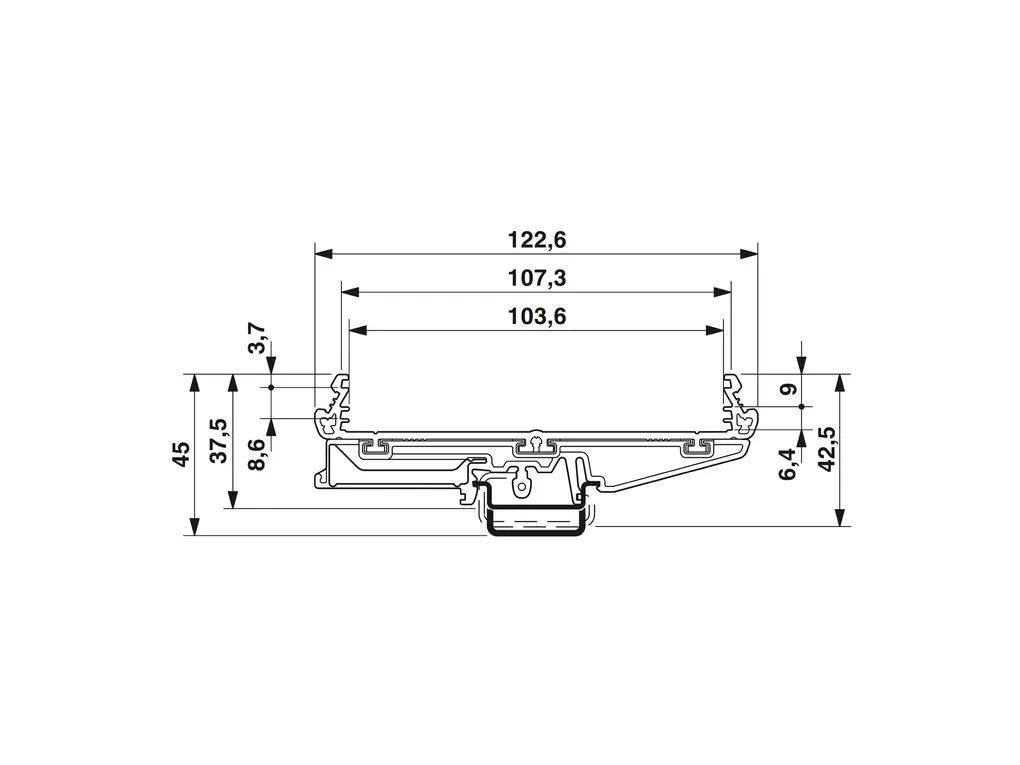

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ed94640a3b084844925b93aacc21791f/-S204x204-FJPG Depth: 21.5 mm Length: 200 cm External dimensions Profile width (external): 107.5 mm Internal dimensions Profile width (internal): 122.6 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
| Material specifications | Color: green (6021) Housing material: PVC |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -15°C ... 50°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 50°C Ambient temperature (assembly): -5°C ... 50°C Relative humidity (storage/transport): 95 % |
| PCB data | Number of PCB holders: 2 Thickness of the PCB: 1.4 mm ... 1.8 mm |
| Mounting | Mounting position: parallel to the DIN rail |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
| ECLASS | ECLASS-11.0: 27182701 ECLASS-13.0: 27190601 |
| ETIM | ETIM 8.0: EC002779 |
| UNSPSC | UNSPSC 21.0: 31261500 |
