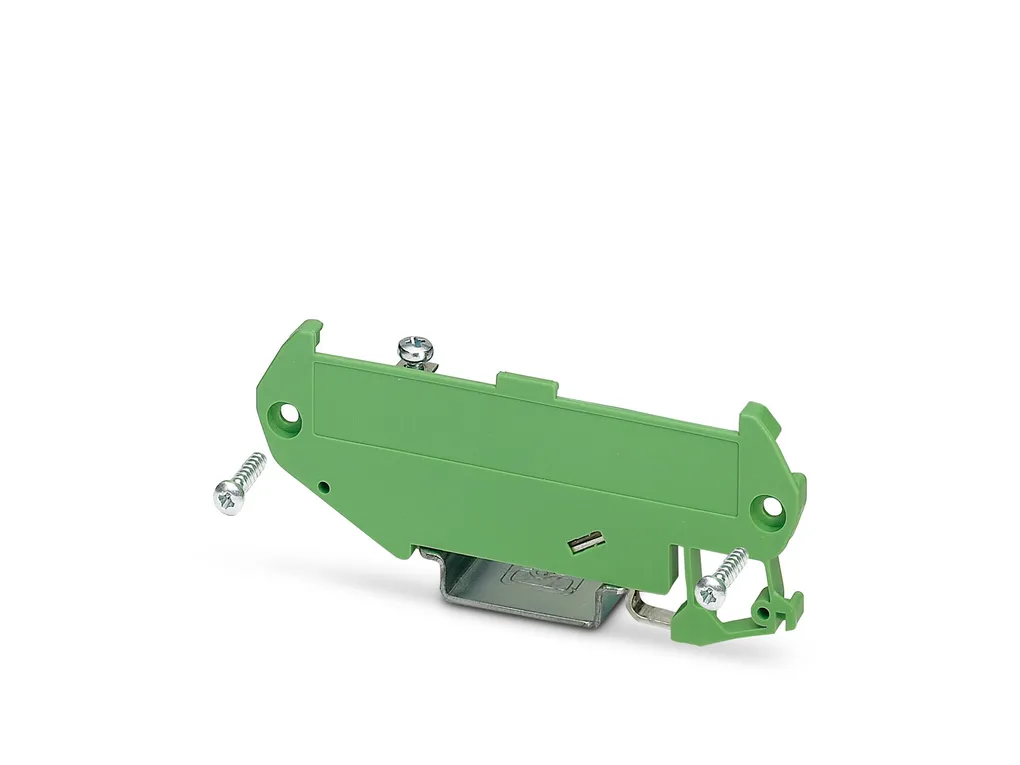

| Product properties | Type: Module width 45 mm, since the housing can remain open at the top, it is possible for parts to protrude above the actual profile height Plug-in module base element Product type: Component housing lower part Product family: UMK BE Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UMK |
| Dimensions | Depth: 15.5 mm Length: 45 mm External dimensions Profile width (external): 77 mm Internal dimensions Profile width (internal): 72.2 mm |
| Material specifications | Color: green (6021) Flammability rating according to UL 94: V2 Surface characteristics: untreated Housing material: Polyamide |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 % |
