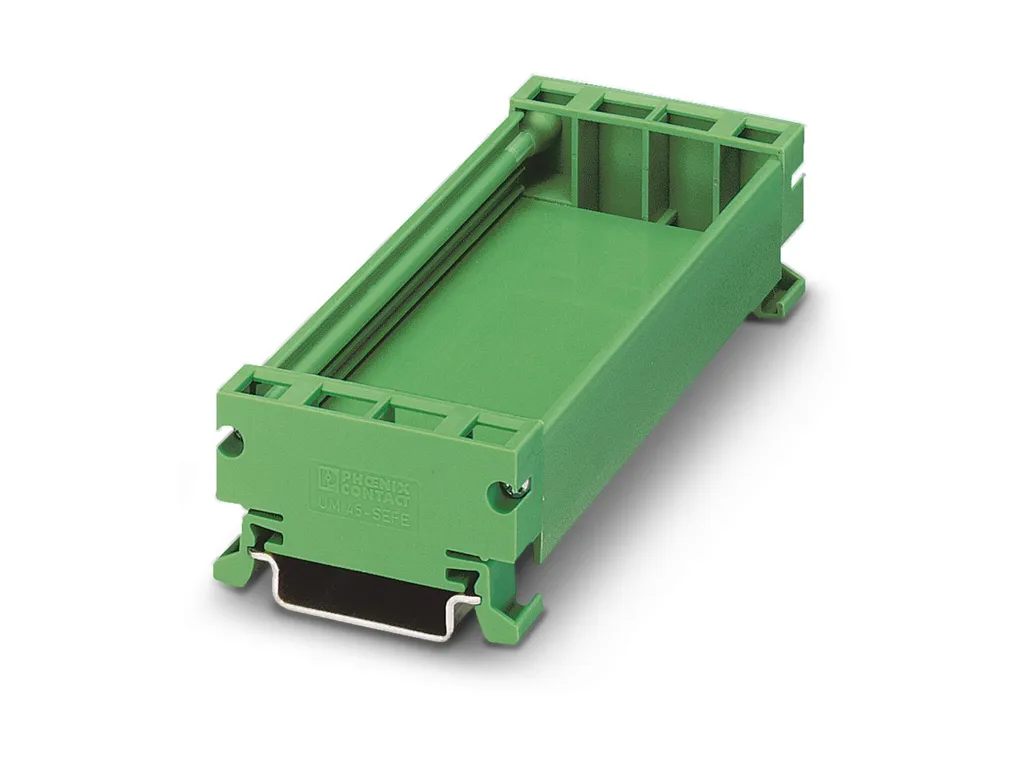

Product properties | Product type: Panel mounting base side part Product family: UM45 Type: Lateral element Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6b7429ca5e68c7428d9cb990976c3f5a/-S204x204-FJPG Depth: 45 mm |
Material specifications | Color: green (6021) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) |
ECLASS | ECLASS-11.0: 27182701 ECLASS-13.0: 27190602 |
ETIM | ETIM 8.0: EC002779 |
UNSPSC | UNSPSC 21.0: 31261500 |
