PHOENIX CONTACT 2909471

Not available

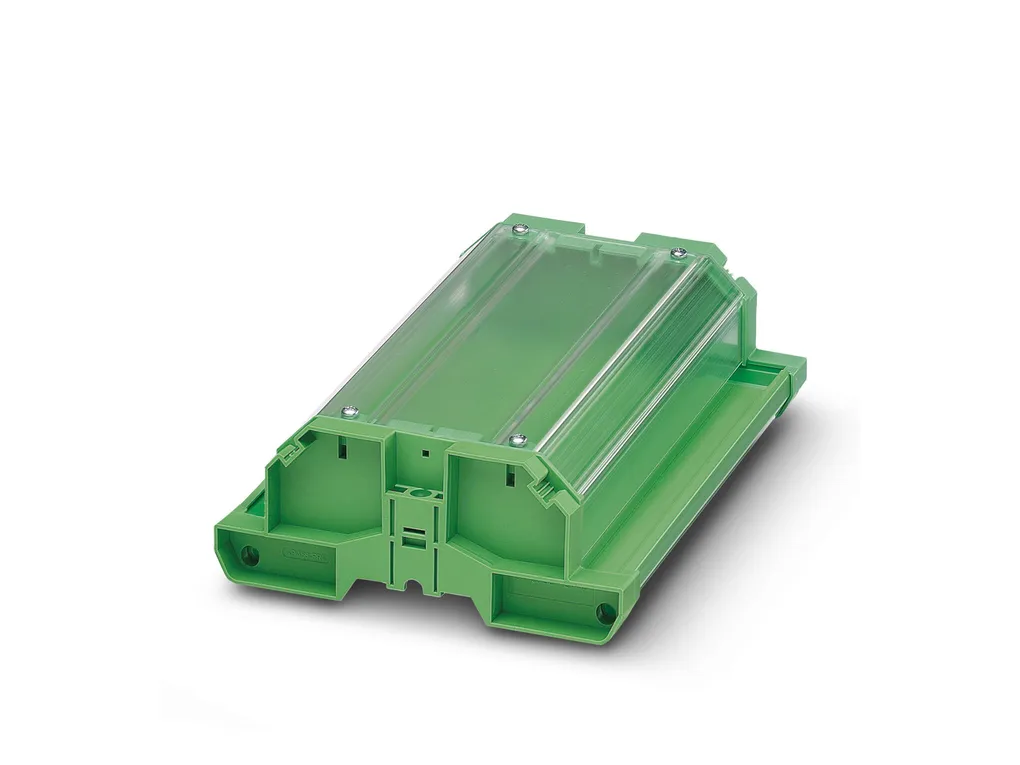

UM122-FE - Foot element

UM 122 FE foot element, for UM 122 profile housing

Product Code: 2909471

Partner cod.: 2909471

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Product properties	Product type: Base latches Product family: UM122 Type: Base element for the DIN rail, for mounting below UM PROFILE (width: 122mm) Housing type: Press-drawn section housings Housing series: UM
Dimensions	Width: 14.3 mm Height: 135.9 mm Depth: 20.95 mm
Material specifications	Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide
Mounting	Mounting type: DIN rail mounting

Technical Specs

ECLASS	ECLASS-11.0: 27182701 ECLASS-13.0: 27190605
ETIM	ETIM 8.0: EC002779
UNSPSC	UNSPSC 21.0: 31261500

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf
