| Product properties | Type: Connection system integrated, housing closed Complete housing equipped with 3 screw connections per side Product type: Complete housing Product family: UEG Number of positions: 8 Pitch: 5 mm Housing type: Component housing Housing series: UEG Pin layout: Linear pinning |

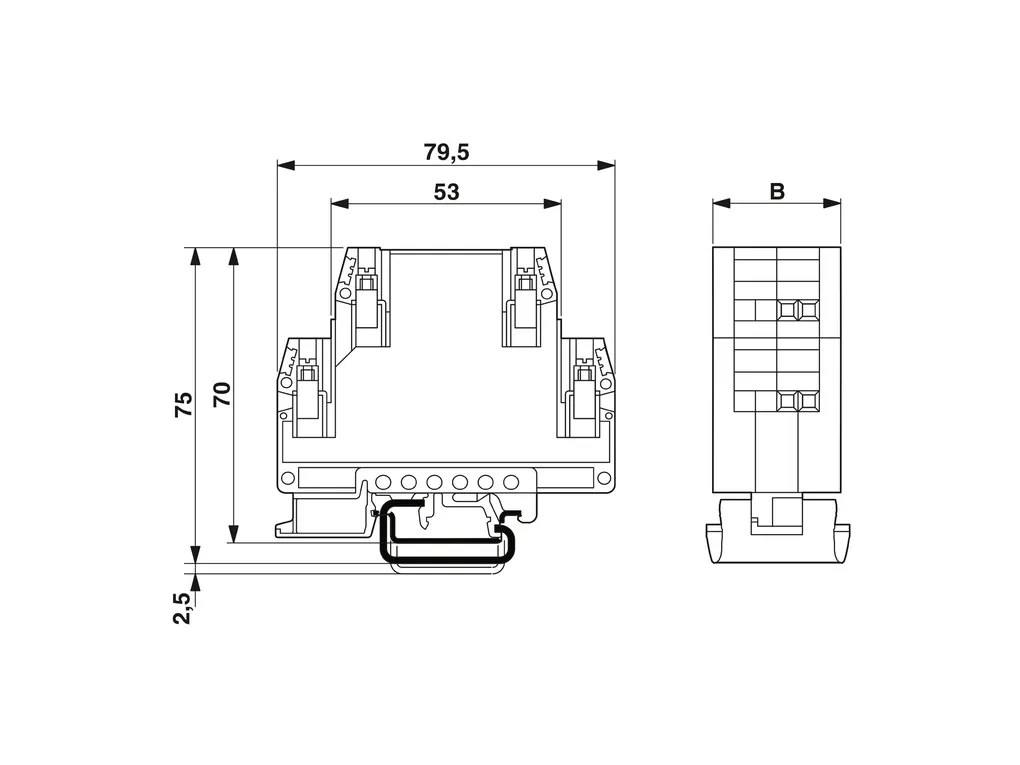

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f534ddacdc28a040b38dac838dc118c5/-S204x204-FJPG Width: 20 mm Installed height: 70 mm Height NS 35/7,5: 70 mm Depth: 79.5 mm Pitch: 5 mm |
| Material specifications | Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C |
| Mounting | Mounting type: DIN rail mounting Pin layout: Linear pinning Connection method: Screw connection |
| ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190501 |
| ETIM | ETIM 8.0: EC001031 |
| UNSPSC | UNSPSC 21.0: 31261500 |
