Product properties | Product type: Component housing lower part Product family: UM100 Type: Basic profile Housing type: Press-drawn section housings Housing series: UM |

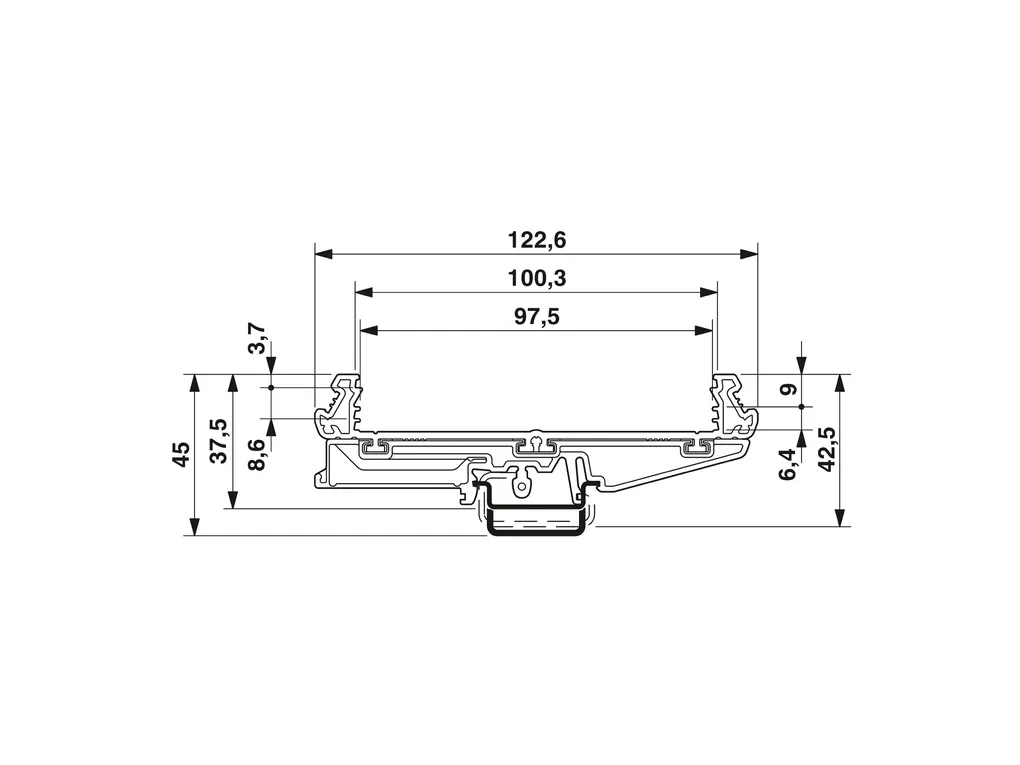

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7a32718eca3d8742a2a3b460764b4971/-S204x204-FJPG Depth: 21.5 mm Length: 100 cm External dimensions Profile width (external): 122.6 mm Internal dimensions Profile width (internal): 100 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
Material specifications | Color: green (6021) Flammability rating according to UL 94: V0 Housing material: PVC |
Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -15°C ... 50°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 50°C Ambient temperature (assembly): -5°C ... 50°C Relative humidity (storage/transport): 95 % |
PCB data | Number of PCB holders: 2 Thickness of the PCB: 1.4 mm ... 1.8 mm |
Mounting | Mounting position: parallel to the DIN rail |
Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
ECLASS | ECLASS-11.0: 27182701 ECLASS-13.0: 27190601 |
ETIM | ETIM 8.0: EC002779 |
UNSPSC | UNSPSC 21.0: 31261500 |
