PHOENIX CONTACT 2942409
PHOENIX CONTACTNot available

EMG 17-LG/O - Electronic housing

Electronic housing, with universal foot, for p.c.b. insertion, without screw connection terminal blocks and cover, pitch 5, with open terminal space
Product Code: 2942409
Partner cod.: 2942409
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
Product propertiesType: Lower part of housing, removable cover optional
Lower and upper part, with universal foot, with open clamping space
Product type: Complete housing
Product family: EMG
Set comprises: 2942988 EMG 17-LG/SET
Housing type: Component housing
Housing series: EMG

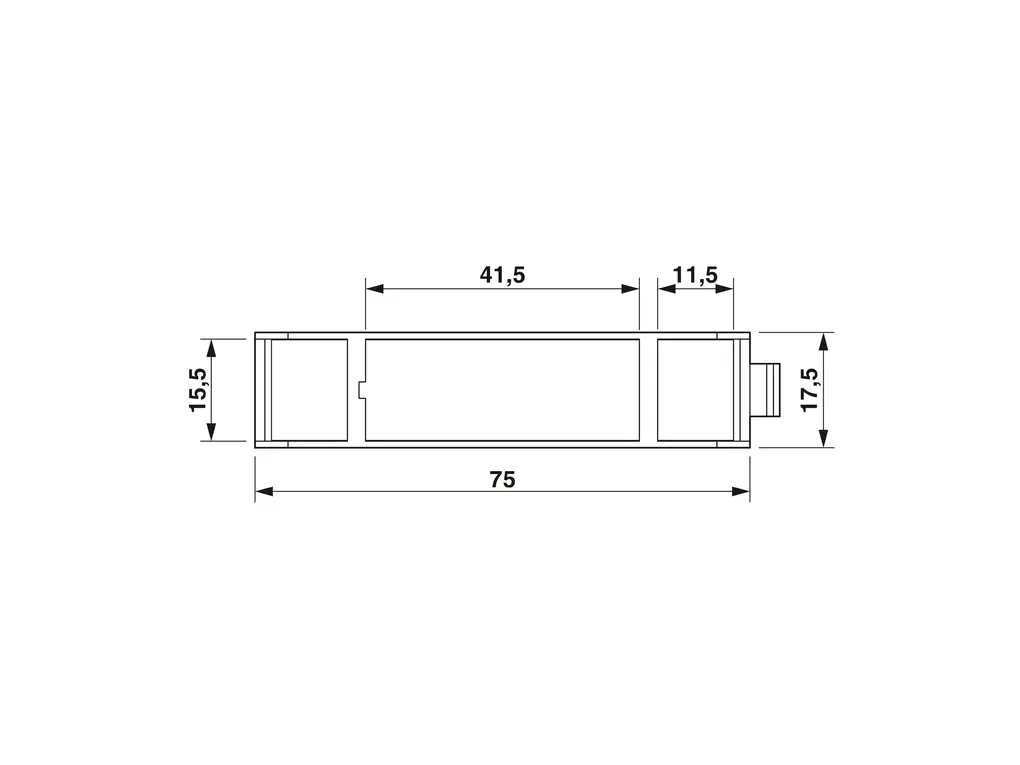

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c5c5235eed174b4fbac01712d4ef6c95/-S204x204-FJPG
Width: 17.5 mm
Installed height: 47.5 mm
Height NS 35/7,5: 47.5 mm
Depth: 75 mm
Length: 75 mm
Material specificationsColor: green
Flammability rating according to UL 94: V0
Surface characteristics: untreated
Housing material: Polycarbonate, glass-fiber-reinforced
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): -40°C ... 125°C
MountingMounting type: DIN rail mounting
Technical Specs
ECLASSECLASS-11.0: 27182702
ECLASS-13.0: 27190101
ETIMETIM 8.0: EC001031
UNSPSCUNSPSC 21.0: 31261500
