PHOENIX CONTACT 2942962
PHOENIX CONTACTNot available

EMG 12-LG/SET - Electronic housing

Electronic housing set, consisting of electronic housing and printed circuit termination blocks, pitch 5
Product Code: 2942962
Partner cod.: 2942962
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
Product propertiesType: Lower housing part, removable cover as option, connection system integrated
Lower and upper part, with universal foot, including PCB terminal blocks
Product type: Stackable housing set
Product family: EMG LG SET
Number of positions: 4
Pitch: 5 mm
Housing type: Component housing
Housing series: EMG

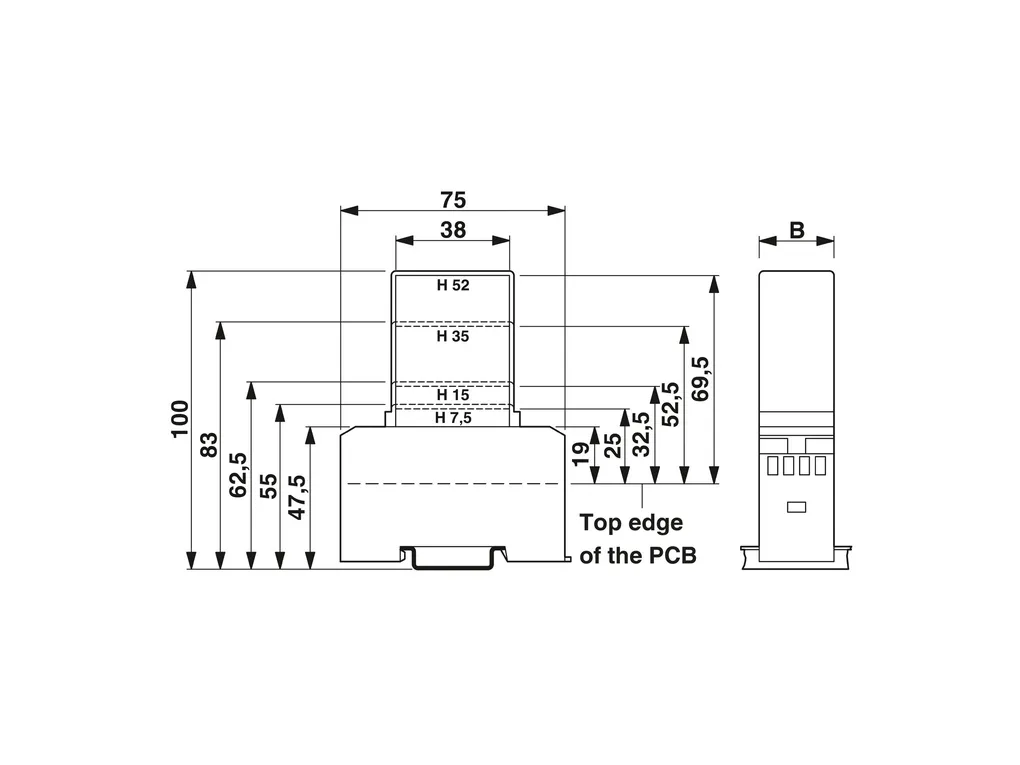

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e7e3639cca3cdc4aaa699907eed76adc/-S204x204-FJPG
Width: 12.5 mm
Installed height: 47.5 mm
Height NS 35/7,5: 55 mm
100 mm
Depth: 75 mm
Length: 75 mm
Pitch: 5 mm
Material specificationsColor: green
Flammability rating according to UL 94: V0
Surface characteristics: untreated
Housing material: Polycarbonate, glass-fiber-reinforced
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): -40°C ... 125°C
Technical Specs
ECLASSECLASS-11.0: 27182702
ECLASS-13.0: 27190301
ETIMETIM 8.0: EC001031
UNSPSCUNSPSC 21.0: 31261500
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_16715.pdf

Material_description_00001.pdf
