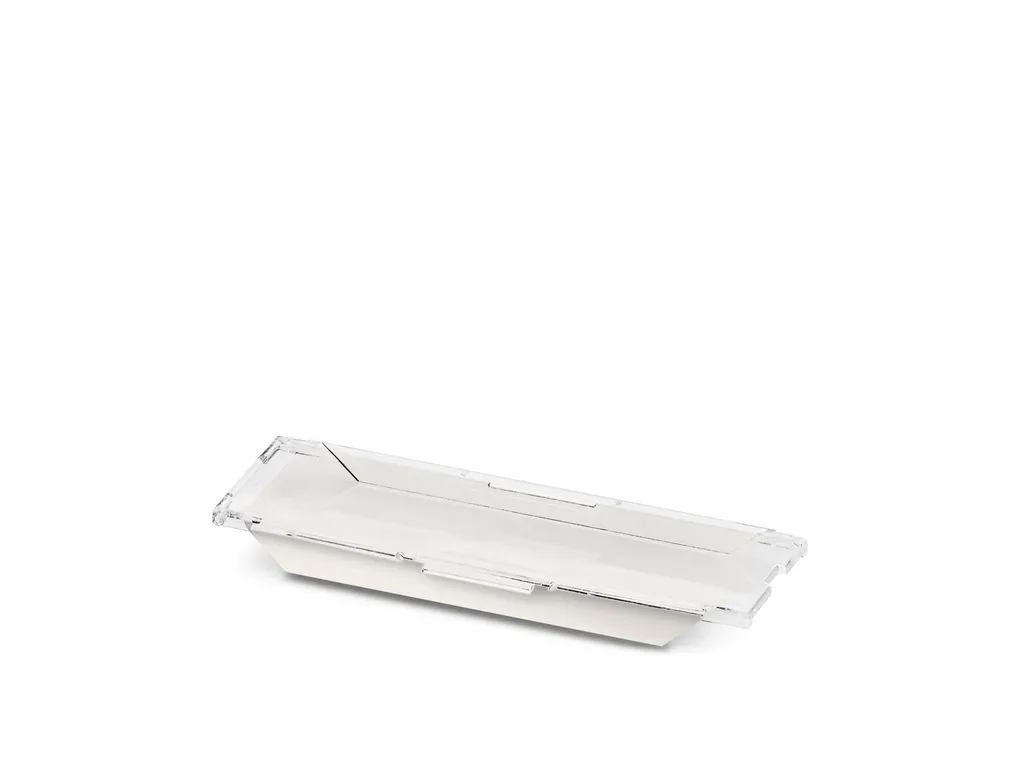

EMG 45-B8 - Electronic housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Type: Lower housing part, removable cover as option, connection system integrated, PCB integrated Lower and upper part with snap-on foot, with PCB and solder tags that are led to the MKDS 3/... connection terminal blocks Product type: Stackable housing set Product family: EMG Number of positions: 16 Pitch: 5.08 mm Housing type: Component housing Housing series: EMG |

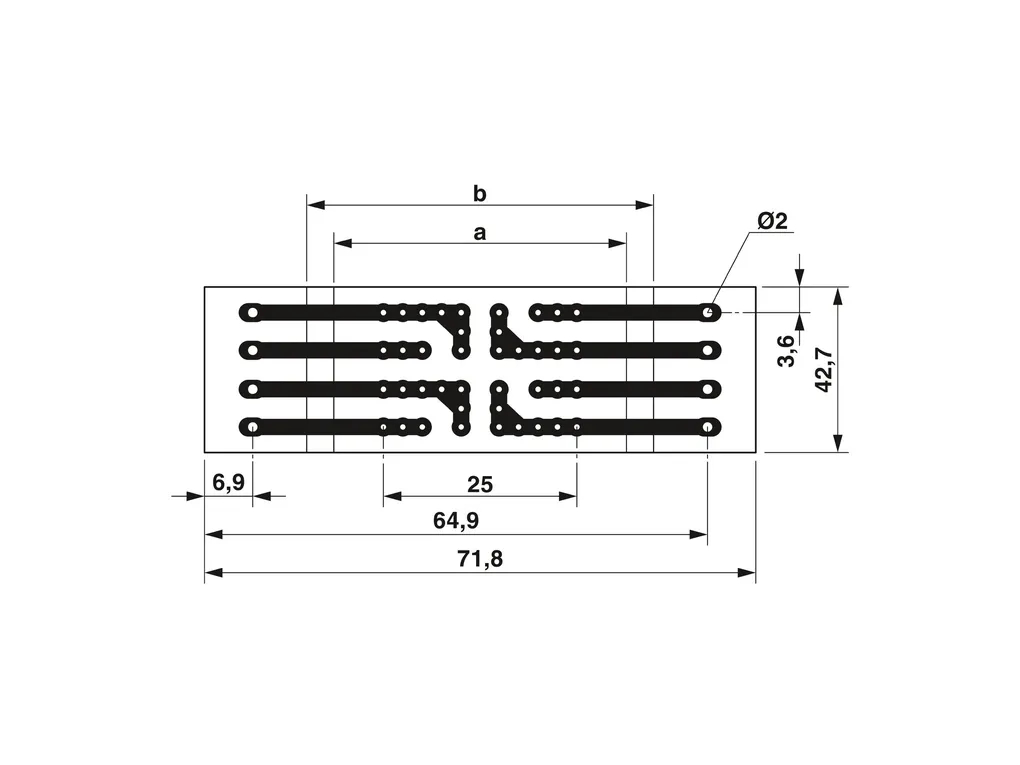

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3194a3844380c1439c1a0d6ce186119c/-S204x204-FJPG Width: 45 mm Installed height: 47.5 mm Height NS 35/7,5: 55 mm 83 mm 100 mm Depth: 75 mm Length: 75 mm Pitch: 5.08 mm |
Material specifications | Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polycarbonate, glass-fiber-reinforced |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 125°C |
Mounting | Mounting type: DIN rail mounting |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190301 |
ETIM | ETIM 8.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
