PHOENIX CONTACT 2955593
PHOENIX CONTACT 2955593
PHOENIX CONTACTAvailable

UM-SE - Lateral element

Side element, for closing both ends of the base element UM-BEFE
Product Code: 2955593
Partner cod.: 2955593
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesProduct type: Panel mounting base side part
Product family: UM ST SE
Type: Lateral element
Housing type: Press-drawn section housings
Ventilation openings present: no
Housing series: UM
Material specificationsColor: green (6021)
Flammability rating according to UL 94: V0
Surface characteristics: untreated
Housing material: Polyamide
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation)

Other products

Description other products

PHOENIX CONTACT 2201612

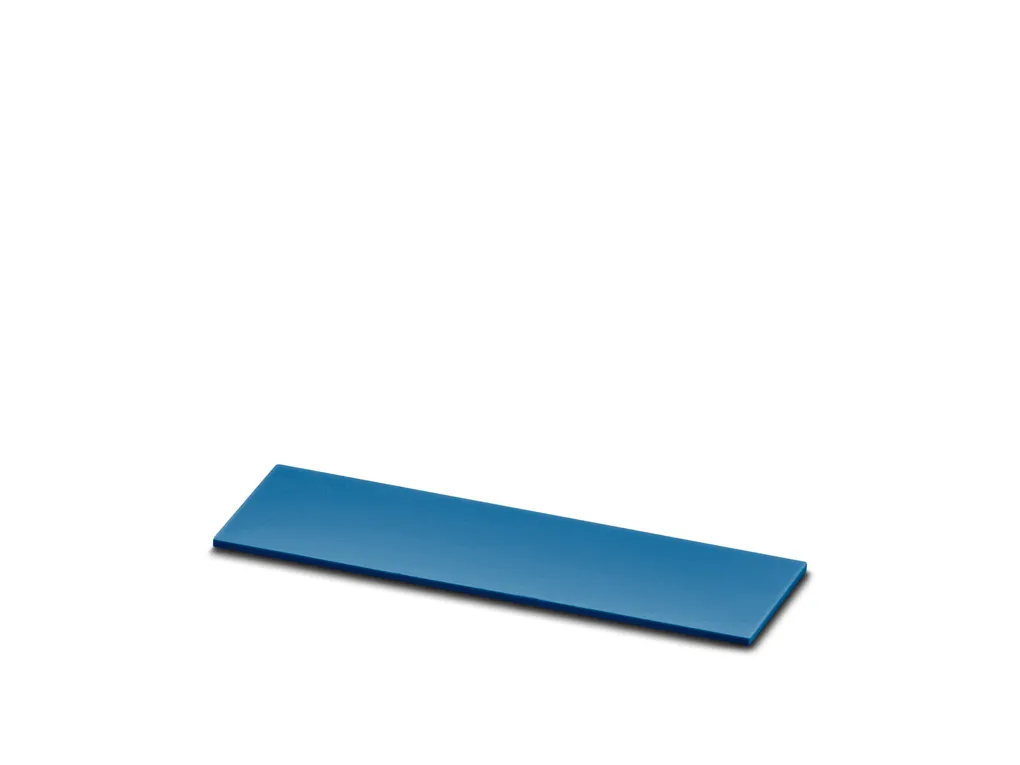

ME MAX 22,5 PLATE BU - Insertion plate
Cod. Articolo: 2201612
DIN rail housing, Insertion plate, width: 19.2 mm, height: 73.6 mm, depth: 1 mm, color: blue (5015)
More info →
PHOENIX CONTACT 1304125

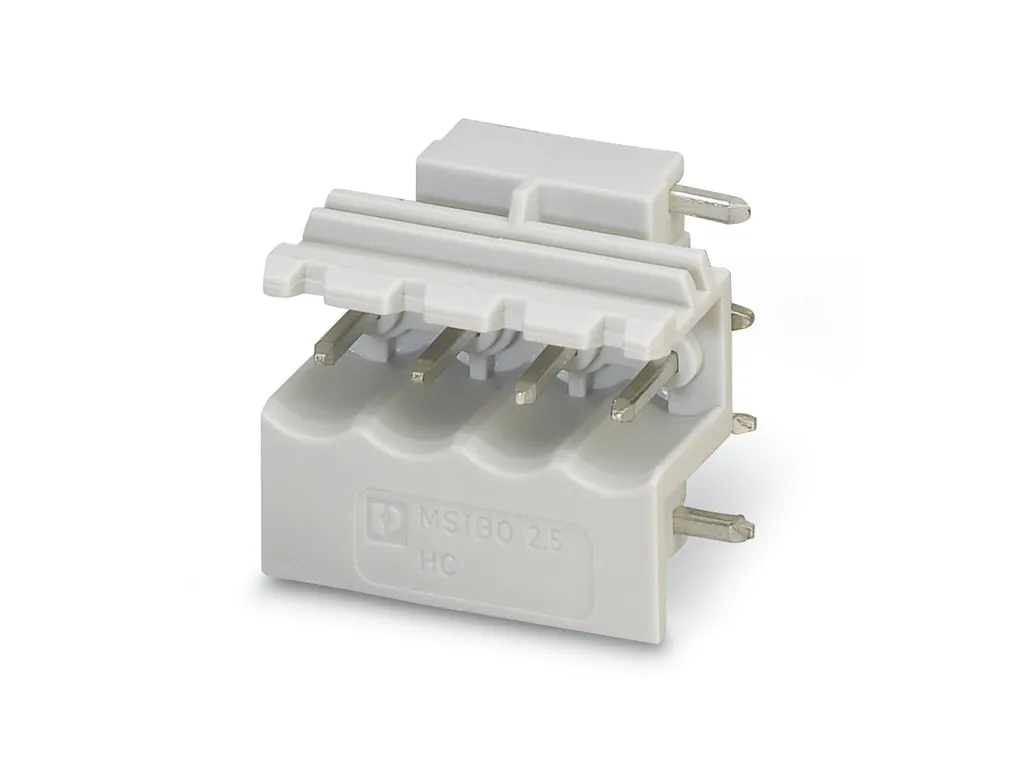

MSTBO 2,5/ 4-G1R KMGY CD:1,4 - PCB header
Cod. Articolo: 1304125
PCB headers, nominal cross section: 2.5 mm2, color: light grey, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: MSTBO 2,5/..-G1R, pitch: 5 mm, connection method: pluggable, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, locking: without, type of packaging: packed in cardboard, Product with pin output on right side
More info →
PHOENIX CONTACT 2203405

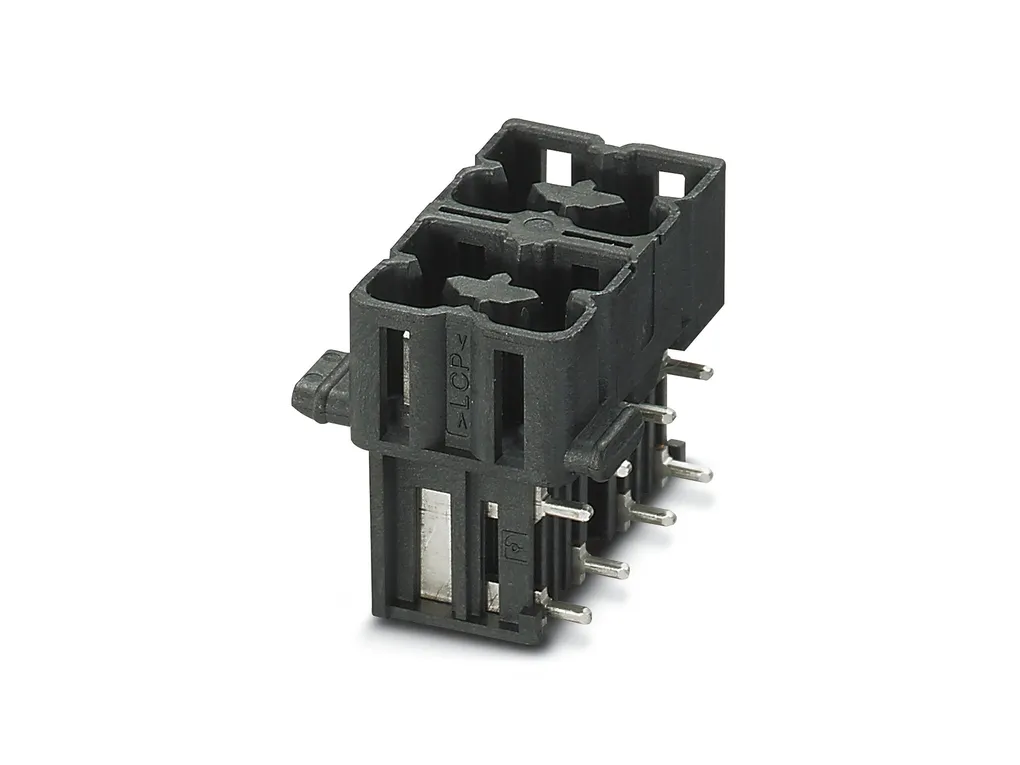

HSCH 2,5-2U/ 8 THR 9005 - PCB header
Cod. Articolo: 2203405
PCB headers, nominal cross section: 2.5 mm2, color: black, nominal current: 8 A, rated voltage (III/2): 250 V, contact surface: Tin, contact connection type: Pin, number of potentials: 8, number of rows: 2, number of positions: 8, number of connections: 8, product range: HSCH 2,5/..-G-THR, pitch: 5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.3 mm, number of solder pins per potential: 1, plug-in system: HSC 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: 44 mm wide tape
More info →
