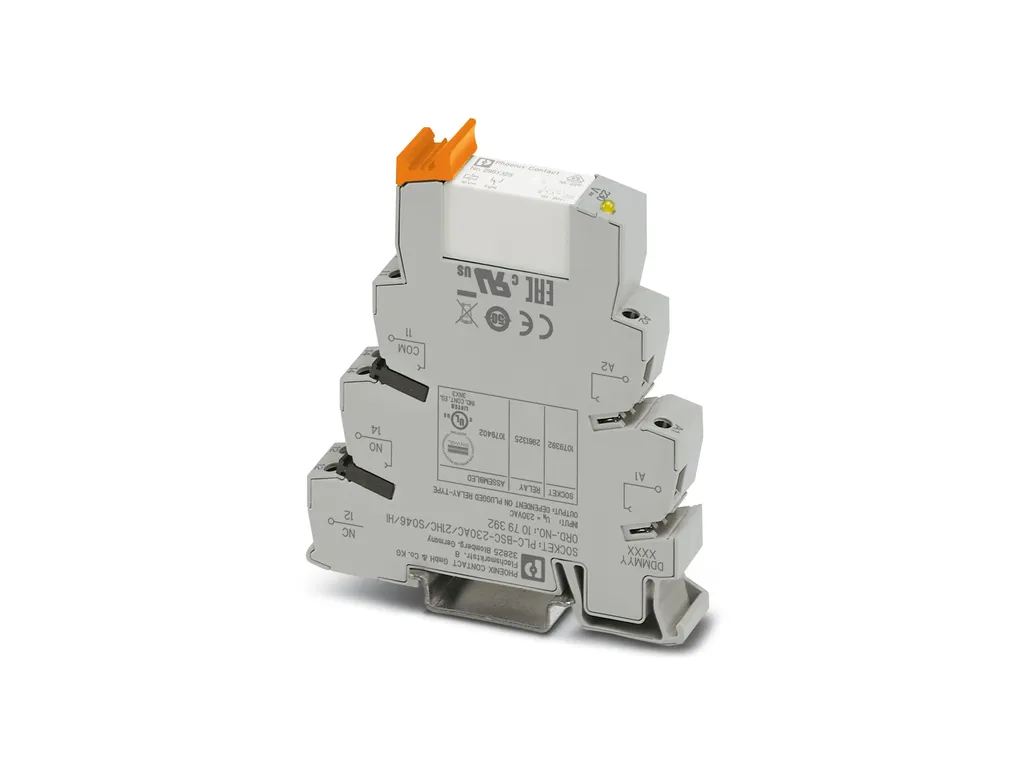

2966809 PHOENIX CONTACT - Technology Bsa

Tecnichal data

Product properties	Product type: Solid-state relay module Product family: PLC-INTERFACE Application: Input function Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Standards/regulations Insulation: Basic insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.81 W Test voltage (Input/output): 2.5 kV (50Hz, 1min., input/output)
Input data	Nominal input voltage U_N: 230 VAC 220 VDC Input voltage range in reference to U_N: 0.8 ... 1.1 Input voltage range: 184 VAC ... 253 VAC 176 VDC ... 242 VDC Switching threshold "0" signal in reference to U_N: Ã¢¤ 0.3 Switching threshold "1" signal in reference to U_N: Ã¢¥ 0.8 Typical input current at U_N: 3.5 mA Typical response time: 3 ms (at U_N) Typical turn-off time: 5 ms (at U_N) Operating voltage display: Yellow LED Protective circuit: Bridge rectifier; Bridge rectifier Transmission frequency: 10 Hz
Output data	Contact switching type: 1 N/O contact Design of digital output: electronic Output voltage range: 3 VDC ... 48 VDC Limiting continuous current: 100 mA Voltage drop at max. limiting continuous current: Ã¢¤ 1 V Output circuit: 2-conductor, floating Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection
Connection data	Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.6 Nm ... 0.8 Nm
Dimensions	Width: 6.2 mm Height: 80 mm Depth: 94 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -25°C ... 70°C
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group EN60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Standards/regulations Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any

Technical Specs

ECLASS	ECLASS-11.0: 27371604 ECLASS-12.0: 27371604 ECLASS-13.0: 27371604
ETIM	ETIM 9.0: EC001504
UNSPSC	UNSPSC 21.0: 39122300
