UMK-BE 45 BK - Base element
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Type: Module width 45 mm, since the housing can remain open at the top, it is possible for parts to protrude above the actual profile height Plug-in module base element Product type: Component housing lower part Product family: UMK BE Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UMK |

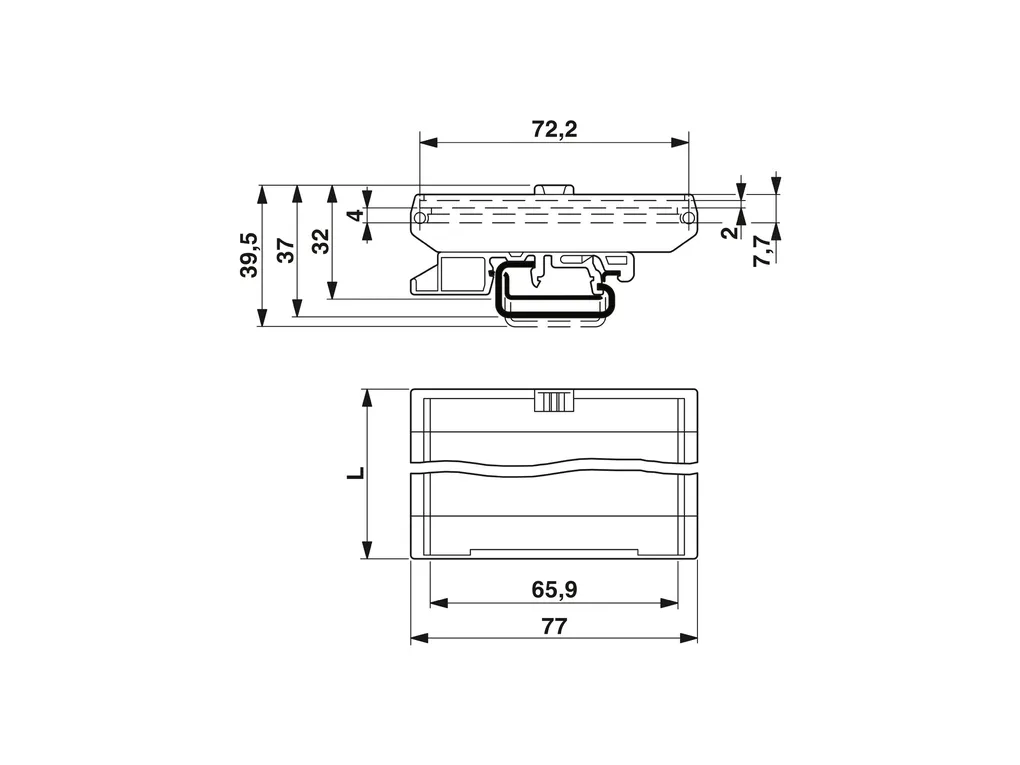

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ac79939fa9d247489ce82be1127c7337/-S204x204-FJPG Depth: 15.5 mm Length: 45 mm External dimensions Profile width (external): 77 mm Internal dimensions Profile width (internal): 72.2 mm |
Material specifications | Color: black (9005) Flammability rating according to UL 94: V2 Surface characteristics: untreated Housing material: Polyamide |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 % |
ECLASS | ECLASS-11.0: 27182701 ECLASS-13.0: 27190601 |
ETIM | ETIM 8.0: EC002779 |
UNSPSC | UNSPSC 21.0: 31261500 |
