PHOENIX CONTACT 2977490

PHOENIX CONTACT 2977490

Not available

UM 72-SEFE/R BK - Lateral element

Side element, right, with foot, width: 5 mm, width: 72 mm, for mounting on NS 32 or NS 35/7.5

Product Code: 2977490 Copia - Copy

Copia - Copy

Partner cod.: 2977490 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: Panel mounting base side part Product family: UM72 Type: Lateral element (right) Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM

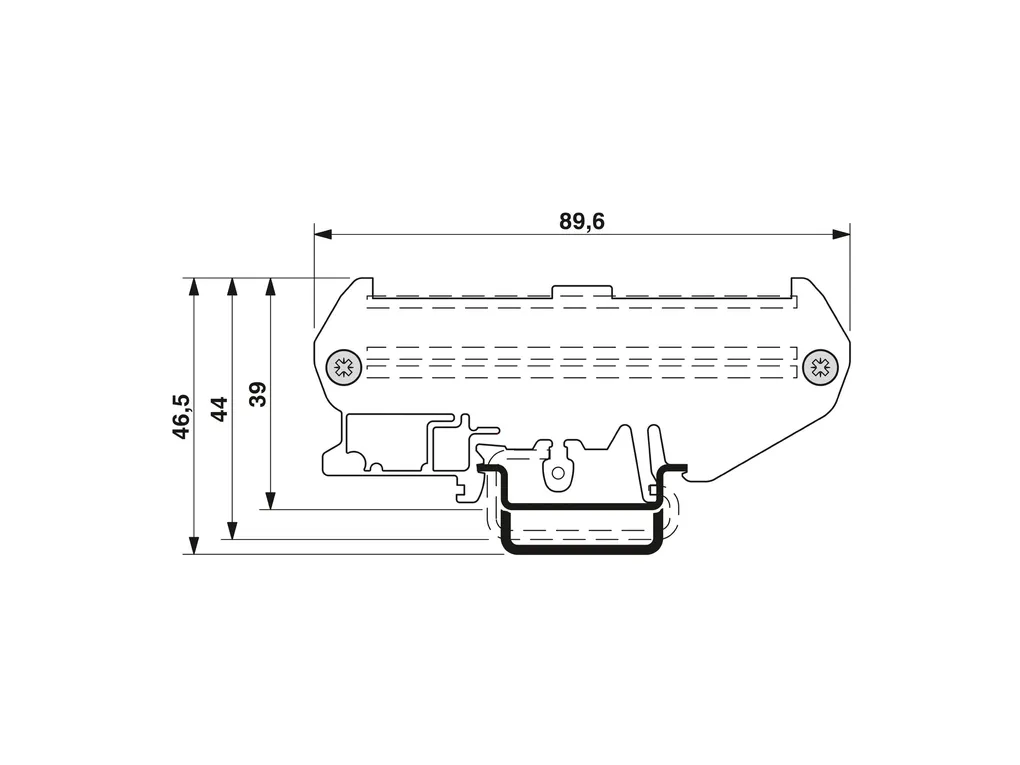

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a88d2673c89f7e418a81f38bf752ada4/-S204x204-FJPG Width: 5 mm Height: 89.6 mm Depth: 37.6 mm
Material specifications	Color: black (9005) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 %
Mounting	Mounting type: DIN rail mounting

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Technical_drawing_41615.pdf

Technical_drawing_41616.pdf

Other products

Description other products

PHOENIX CONTACT 2200935

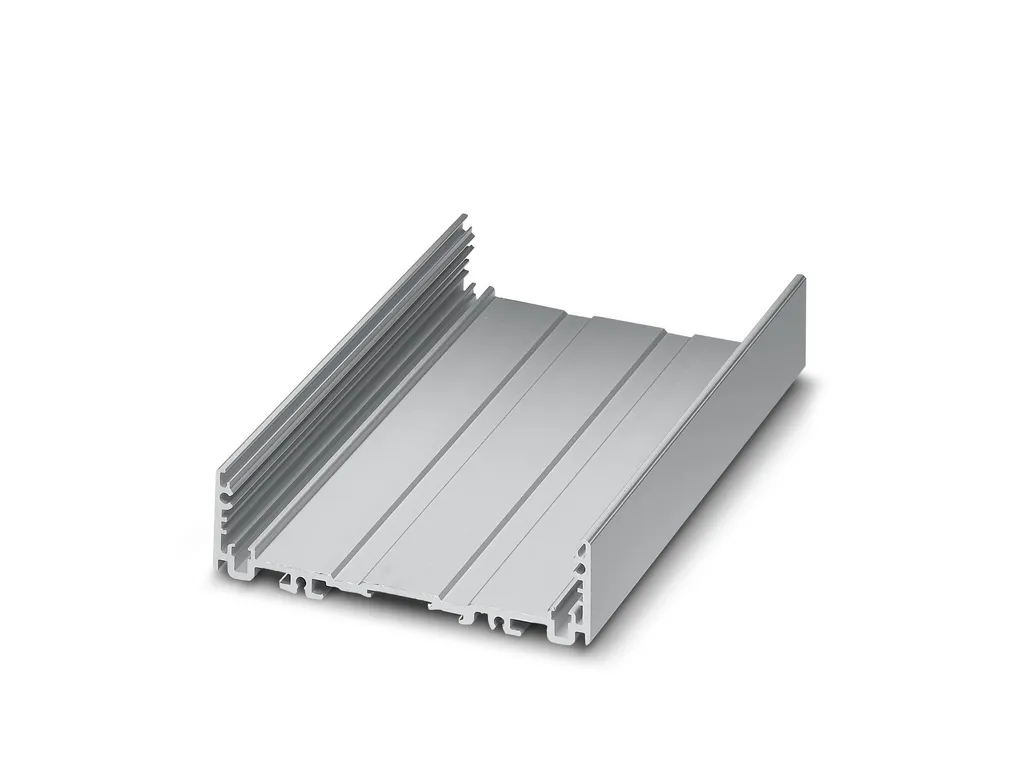

UM-ALU 4-100,5 PROFILE 42,5 - Profile
Cod. Articolo: 2200935

Press-drawn section housings, Screw mounting, Basic profile, color: aluminum color, profile width (internal): 100.5 mm, profile width (external): 105 mm, length: 42.5 mm, depth: 29.4 mm

PHOENIX CONTACT 2909552

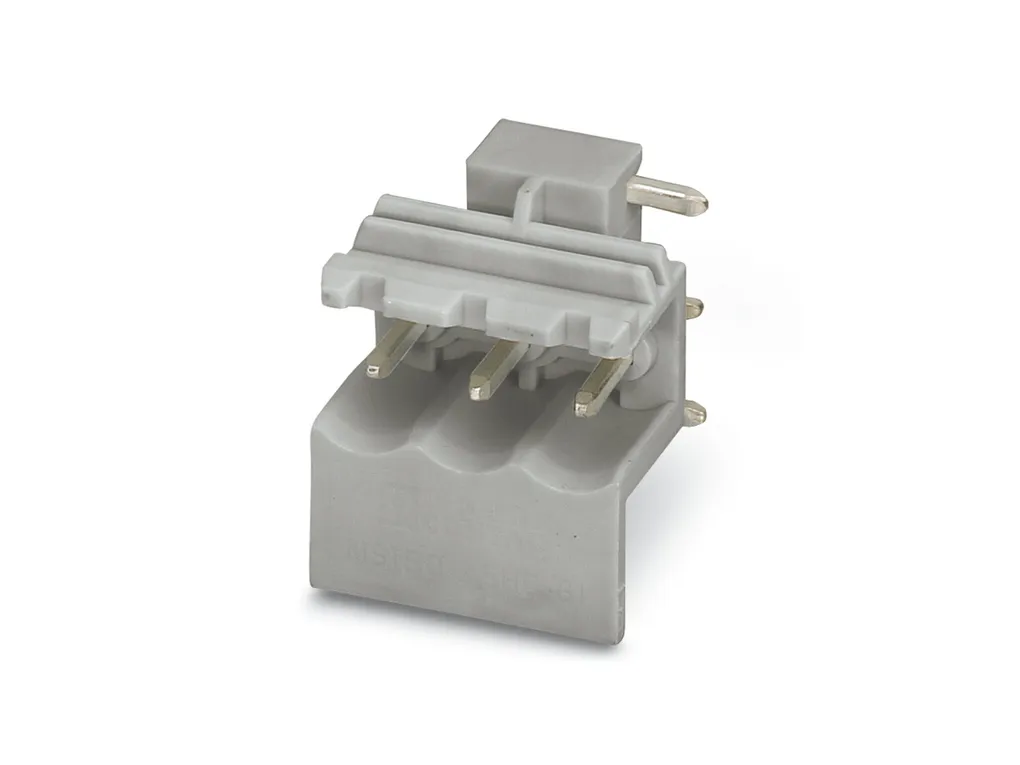

MSTBO 2,5/ 3-G1R GY - PCB header
Cod. Articolo: 2909552

PCB headers, nominal cross section: 2.5 mm², color: gray, nominal current: 12 A, rated voltage (III/2): 320 V, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: MSTBO 2,5/..-G1R, pitch: 5 mm, connection method: pluggable, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, locking: without, type of packaging: packed in cardboard, Product with pin output on right side

PHOENIX CONTACT 2200333

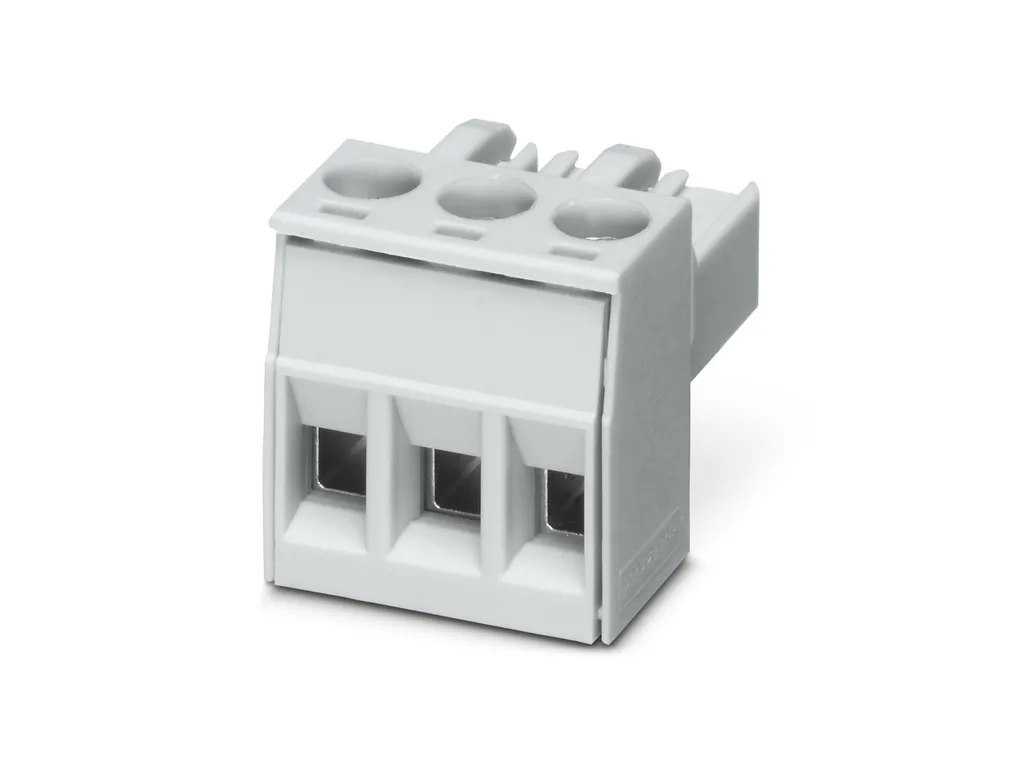

MSTBT 2,5 HC/ 3-STP GY7035 - Printed-circuit board connector
