Notes | General: For terminal marking, please use marking material with 8.2 mm pitch. For lever marking, please use marking material with 6.2 mm pitch. The current is determined by the fuse used, the voltage by the selected LED. If the fuse is faulty, the downstream circuit will not be disconnected. |

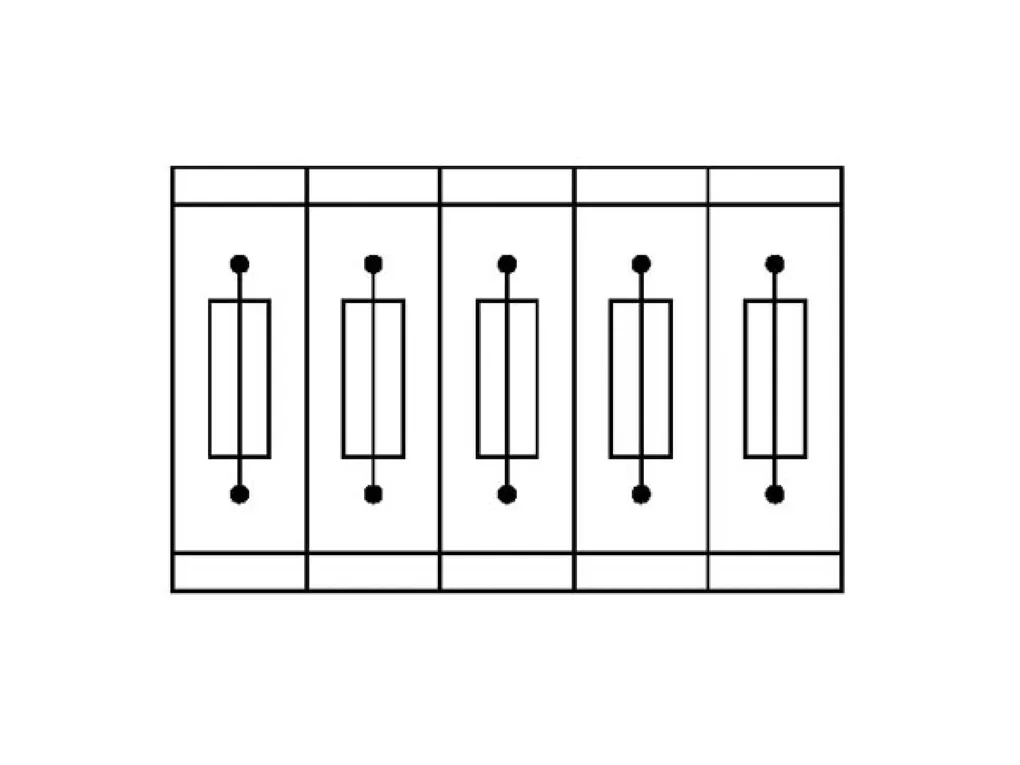

Product properties | Product type: Fuse terminal block Number of positions: 1 Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Electrical properties | Fuse type: Glass / ceramics / ... Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.02 W Fuse: G / 5 x 20 / 5 x 25 / 5 x 30 LED voltage range: 15 V AC/DC ... 30 V AC/DC LED current range: 3.5 mA ... 8.1 mA |
Input data | LED voltage range: 15 V AC/DC ... 30 V AC/DC |
Connection data | Number of connections per level: 2 Nominal cross section: 4 mm² Level 1 above 1 below 1 Screw thread: M3 Tightening torque: 0.6 ... 0.8 Nm Stripping length: 8 mm Internal cylindrical gage: A4 Connection in acc. with standard: IEC 60947-7-3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Cross section AWG: 24 ... 12 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 24 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 4 mm² Cross-section with insertion bridge, rigid: 4 mm² Cross-section with insertion bridge, flexible: 4 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 1.5 mm² 2 conductors with same cross section, flexible: 0.2 mm² ... 1.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm² Nominal current: 6.3 A Maximum load current: 6.3 A (the current is determined by the fuse used) 6.3 A Nominal voltage: 24 V 800 V (As a disconnect terminal block) Nominal cross section: 1 mm² |
Dimensions | Width: 8.2 mm Height: 72.5 mm Depth on NS32: 61.5 mm Depth on NS35/7,5: 56.5 mm Depth on NS35/15: 64 mm |
Material specifications | Color: black Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 125°C |
Mechanical properties | Mechanical data Open side panel: No |
Environmental and real-life conditions | Oscillation/broadband noise Specification: DINEN50155 (VDE0115-200):2008-03 Spectrum: Service life test category1, classB, body mounted Frequency: f1 = 5 Hz to f2 = 150 Hz ASD level: 1.857 (m/s²)²/Hz Acceleration: 0.8g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINEN50155 (VDE0115-200):2008-03 Pulse shape: Half-sine Acceleration: 5g Shock duration: 30ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
Standards and regulations | Connection in acc. with standard: IEC 60947-7-3 |
Mounting | Mounting type: NS 35/7,5 NS35/15 NS32 |
ECLASS | ECLASS-11.0: 27141116 ECLASS-12.0: 27141116 ECLASS-13.0: 27250113 |
ETIM | ETIM 8.0: EC000899 |
UNSPSC | UNSPSC 21.0: 39121400 |
