P-CO - Component connector

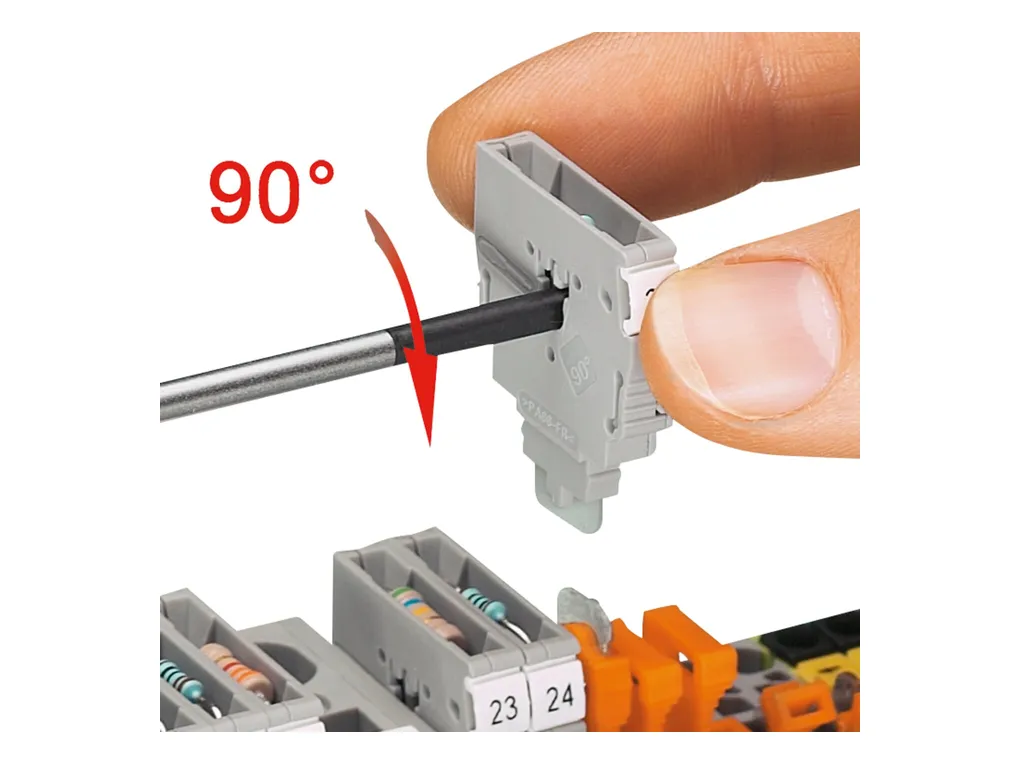

Component connector, for installing components that can be individually selected, nom. voltage: 250 V, nominal current: 6 A, connection method: Plug-in connection, pitch: 5.2 mm, width: 5.1 mm, height: 24.2 mm, number of positions: 1, color: gray, mounting type: Pluggable (slot)
Product Code: 3036796
Partner cod.: 3036796
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
NotesGeneral: Components with a wire diameter from 0.5mm up to 0.8mm can be used
Product propertiesProduct type: Component plug terminal block
Number of positions: 1
Pitch: 5.2 mm
Potentials: 1
Insulation characteristics
Pollution degree: 3
Connection dataConductor cross section rigid: 0.5 mm² ... 0.8 mm²
Conductor cross section flexible: 0.5 mm² ... 0.8 mm²
Nominal current: 6 A
Maximum load current: 6 A (with 0.5 mm² conductor cross section)
Nominal voltage: 250 V
Nominal cross section: 0.5 mm²
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6e4018d129f3594fadbdaa7a3d498cfe/-S204x204-FJPG
Width: 5.1 mm
Height: 24.2 mm
Depth: 33.2 mm
Pitch: 5.2 mm
Material specificationsColor: gray
Flammability rating according to UL 94: V0
Insulating material group: I
Insulating material: PA
Static insulating material application in cold: -60°C
Relative insulation material temperature index (Elec., UL 746 B): 130°C
Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162): passed
Specific optical density of smoke NFPA 130 (ASTM E 662): passed
Smoke gas toxicity NFPA 130 (SMP 800C): passed
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C)
Ambient temperature (assembly): -5°C ... 70°C
Ambient temperature (actuation): -5°C ... 70°C
Permissible humidity (storage/transport): 30 % ... 70 %
MountingMounting type: Pluggable (slot)
Technical Specs
ECLASSECLASS-11.0: 27141149
ECLASS-13.0: 27250305
ECLASS-12.0: 27141149
ETIMETIM 9.0: EC002018
UNSPSCUNSPSC 21.0: 39121600
