PHOENIX CONTACT 3209634
PHOENIX CONTACTNot available

PT 2,5-TWIN/1P RD - Feed-through terminal block

Feed-through terminal block, nom. voltage: 500 V, nominal current: 24 A, number of connections: 3, number of positions: 1, connection method: Push-in / plug connection, Rated cross section: 2.5 mm2, cross section: 0.14 mm2-4 mm2, mounting type: NS 35/7,5, NS35/15, color: red
Product Code: 3209634
Partner cod.: 3209634
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
NotesGeneral: The max. load current must not be exceeded by the total current of all connected conductors.
Current and voltage are determined by the plug used.
Product propertiesProduct type: Plug-in terminal block
Number of positions: 1
Number of connections: 3
Number of rows: 1
Potentials: 1
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Electrical propertiesRated surge voltage: 6 kV
Maximum power dissipation for nominal condition: 0.77 W
Connection dataNumber of connections per level: 3
Nominal cross section: 2.5 mm²
Stripping length: 8 mm ... 10 mm
Internal cylindrical gage: A3
Connection in acc. with standard: IEC 61984
Conductor cross section rigid: 0.14 mm² ... 4 mm²
Cross section AWG: 26 ... 12 (converted acc. to IEC)
Conductor cross section flexible: 0.14 mm² ... 4 mm²
Conductor cross section, flexible [AWG]: 26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm²

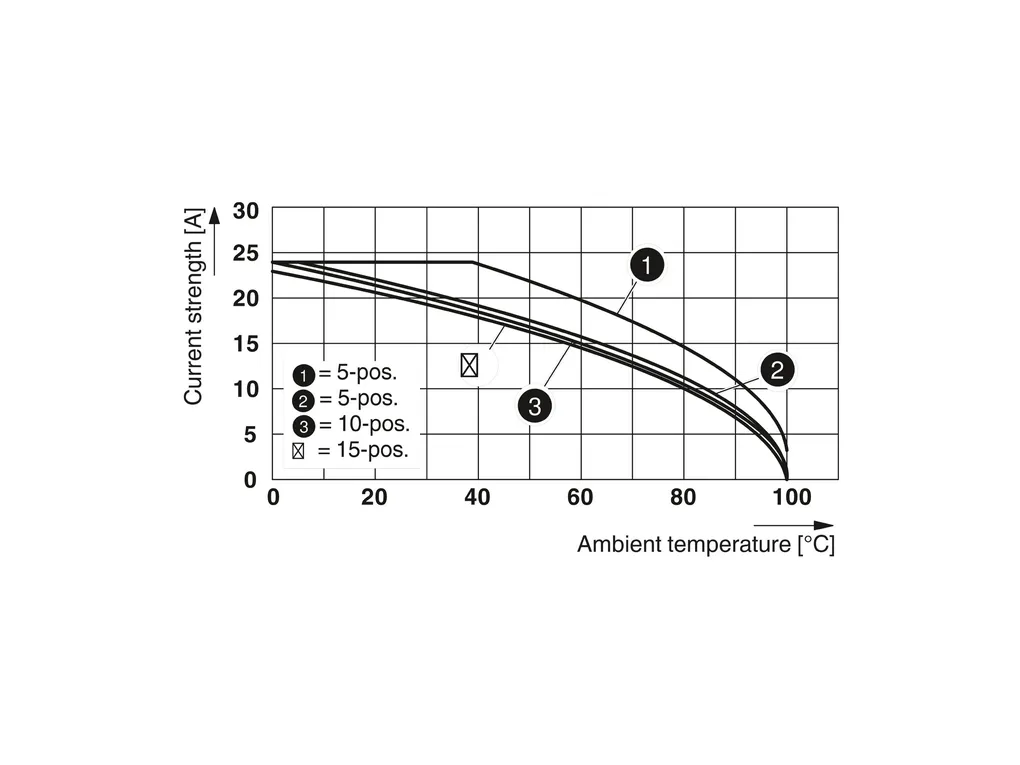

Nominal current: 24 A
Maximum load current: 24 A (with 4mm² conductor cross section, rigid)
Nominal voltage: 500 V
Connection cross sections directly pluggable
Conductor cross section rigid: 0.34 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve): 0.34 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve): 0.34 mm² ... 2.5 mm²
DimensionsWidth: 5.2 mm
End cover width: 2.2 mm
Height: 60.5 mm
Depth on NS35/7,5: 36.5 mm
Depth on NS35/15: 44 mm
Material specificationsColor: red
Flammability rating according to UL 94: V0
Insulating material group: I
Insulating material: PA
Mechanical propertiesMechanical data
Open side panel: Yes
Environmental and real-life conditionsAmbient conditions
Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C)
Ambient temperature (assembly): -5°C ... 70°C
Ambient temperature (actuation): -5°C ... 70°C
Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulationsConnection in acc. with standard: IEC 61984
MountingMounting type: NS 35/7,5
NS35/15
Technical Specs
ECLASSECLASS-11.0: 27141120
ECLASS-13.0: 27250117
ETIMETIM 9.0: EC000897
UNSPSCUNSPSC 21.0: 39121400
Description
Feed-through terminal block, nom. voltage: 500 V, nominal current: 24 A, connection method: Push-in / plug connection, number of connections: 3, number of positions: 1, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 5.2 mm, color: red, mounting type: NS 35/7,5, NS 35/15
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00210.pdf

Approvals_00241.pdf

Approvals_00270.pdf

Approvals_00348.pdf

Approvals_00639.pdf

Approvals_00658.pdf

Approvals_00802.pdf

Approvals_01095.pdf

Manufacturer_declaration_02766.pdf

Manufacturer_declaration_05515.pdf

Safety_notes_00001.pdf

Technical_drawing_44265.pdf
