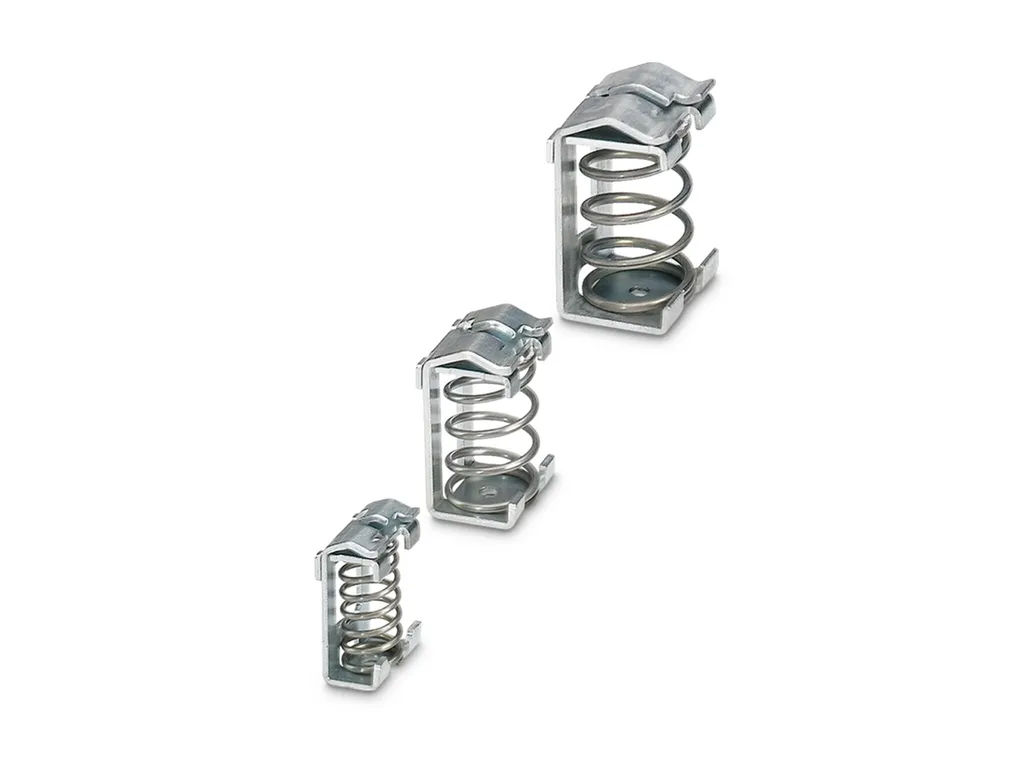

Product properties | Product type: Shield connection clamp Pitch: 12.4 mm Number of connections: 1 Number of rows: 1 |
Electrical properties | Maximum power dissipation for nominal condition: 1.31 W |
Connection data | Grounding foot: Yes Screw thread: M4 Conductor cross section rigid: 3 mm² ... 8 mm² Cross section AWG: 12 ... 10 (converted acc. to IEC) Conductor cross section flexible: 3 mm² ... 8 mm² Conductor cross section, flexible [AWG]: 12 ... 10 (converted acc. to IEC) |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a7f7b457ca1e464c9255e4363fe8e7b3/-S204x204-FJPG Width: 12.4 mm Height: 18 mm Depth: 34.9 mm Pitch: 12.4 mm |
Material specifications | Color: silver Material: Steel |
Cable/line | External cable diameter: 3 mm ... 8 mm |
Mechanical properties | Mechanical data Open side panel: No |
Mounting | Mounting type: direct screw connection |
ECLASS | ECLASS-11.0: 27141150 ECLASS-12.0: 27141150 ECLASS-13.0: 27250309 |
ETIM | ETIM 9.0: EC002020 |
UNSPSC | UNSPSC 21.0: 39121400 |
