| Notes | General: Protective hose length is measured stretched out; length tolerance±5% |

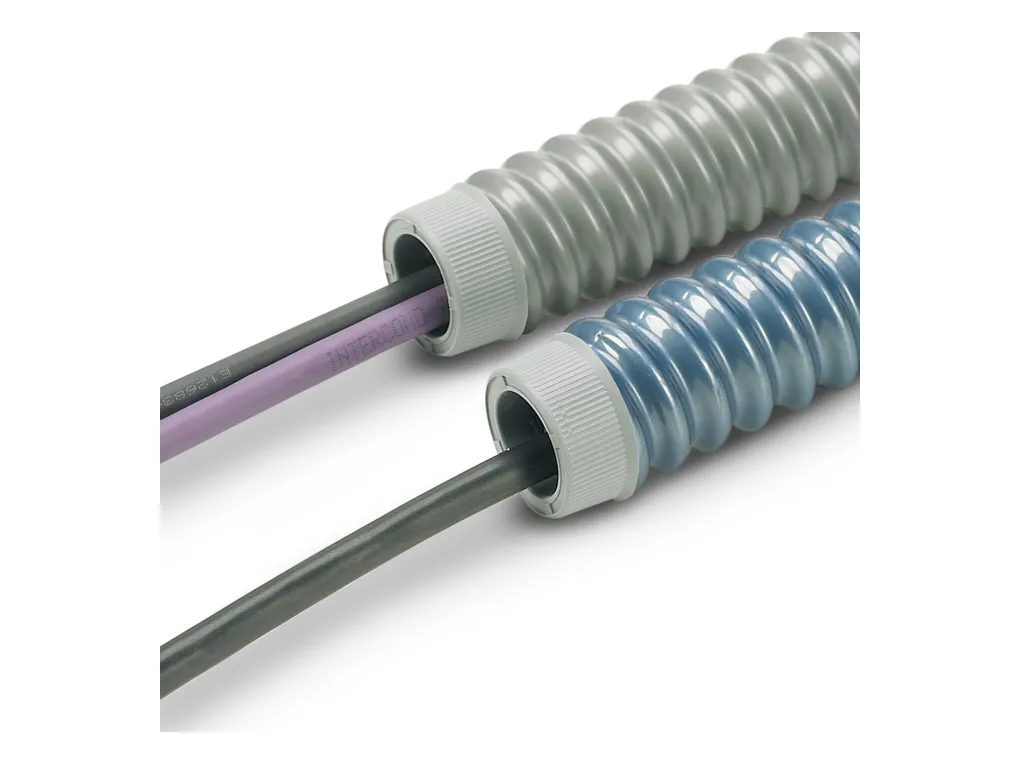

| Product properties | Product type: Corrugated pipe Tensile strength GRP: 100 N |
| Dimensions | External dimensions Outside diameter: 36 mm Internal dimensions Internal diameter: 29 mm |
| Material specifications | Material: PUR PU Flammability rating according to UL 94: V2 Components: free from silicone, halogen, and cadmium |
| Cable/line | Bending radius, dynamic: 65 mm Bending radius, static: 25 mm Tensile strength: 100 N Halogen-free: yes |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 Ambient temperature (operation): -40°C ... 100°C Resistance to UV radiation: no Short-term temperature: 120°C |
| Standards and regulations | Resistance to UV radiation: no |
| ECLASS | ECLASS-11.0: 27430304 ECLASS-13.0: 27430304 ECLASS-12.0: 27430304 |
| ETIM | ETIM 9.0: EC001177 |
| UNSPSC | UNSPSC 21.0: 40141700 |
