| Product properties | Product type: Interface module Product family: VARIOFACE Number of positions: 16 No. of channels: 8 |
| Electrical properties | No. of channels: 8 Nominal voltage UN: 24 VDC Max. current carrying capacity per branch: 50 mA (in as-supplied state, with one 50 mAF fuse, max. 1 A permitted) Supported controller EMERSON DeltaV Suitable I/O card: VE4003S2B4 VE4005S2B3 VE4003S2B5 SE4003S2B4 |
| Connection data | Field level Connection method: Screw connection Stripping length: 7 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Controller level Connection method: IDC/FLK pin strip Number of connections: 1 Number of positions: 16 Pitch: 2.54 mm |
| Signaling | Status display present: Yes, if the fuse fails |
| Dimensions | Item dimensions Width: 61 mm Height: 126 mm Depth: 71 mm |
| Material specifications | Housing insulation material: Polyamide PA non-reinforced |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: IEC 60664 DINEN50178 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| Notes | General: For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| ECLASS | ECLASS-11.0: 27141152 ECLASS-13.0: 27141152 ECLASS-12.0: 27141152 |
| ETIM | ETIM 9.0: EC002780 |
| UNSPSC | UNSPSC 21.0: 39121400 |

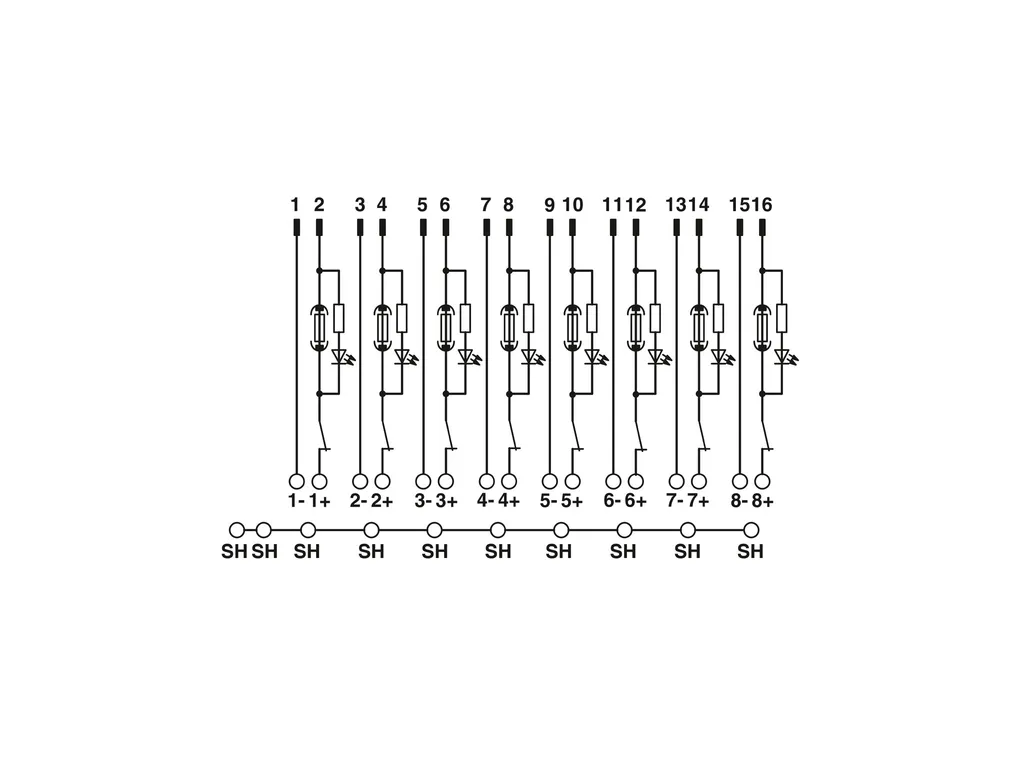

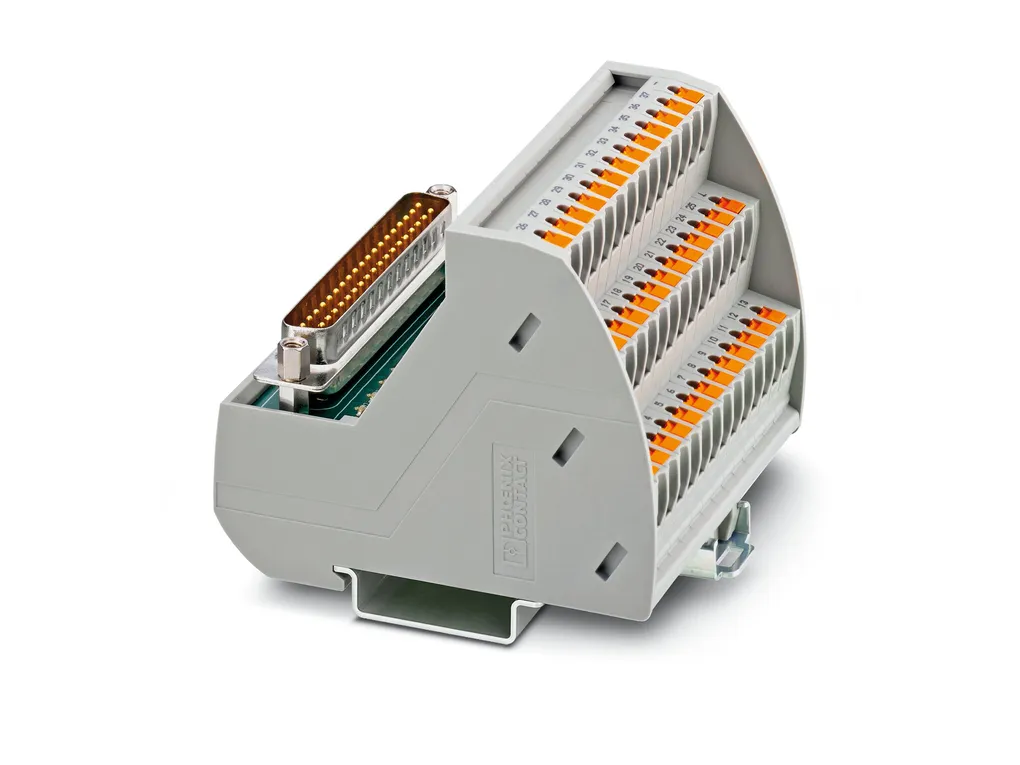

Description other products
