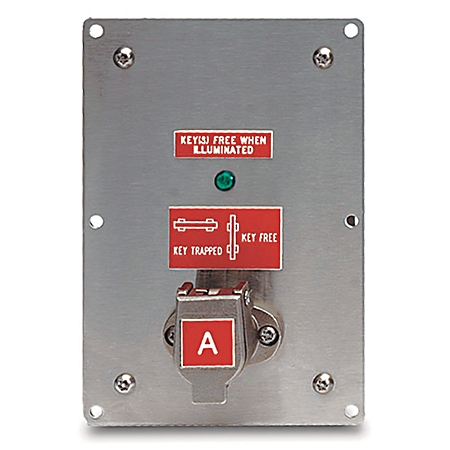

Trapped Key Interlock, Boltlock reverse op extend 13-, DualReverseBoltExtend 13-27mm, Primary Code, Bi, Secondary Code, Bh

Trapped Key Interlock,Boltlock reverse op extend 13-,DualReverseBoltExtend 13-27mm,Primary Code,Bi,Secondary Code,Bh

Product Code: 440T-MS3118BBIBH

Partner cod.: 440T-MS3118BBIBH

ROCKWELL AUTOMATION

Tecnichal data

Type of accessory/spare part	Mechanical locking
Width	48.5 mm
Height	65.5 mm
Depth	27.4 mm
Type of switch	Reverse operation bolt lock with 8 mm bolt extends 13...27 mm
Bolt diameter	15 mm
Operating temperature	-40 Ã°C
Key code 1 position 1	Code 1 position 1 - code B
Key code 1 position 2	Code 1 position 2 - code I
Key code 2 position 1	Code 2 position 1 - code B
Key code 2 position 2	Code 2 position 2 - code H
Mounting	SBL: 2 x M5 counterbored from top or 2 x M5 from underside with M5 nuts
Key condition	Single reverse operation bolt lock with 8 mm bolt extends 13...27 mm
Material	Faceplate: 316L Stainless Steel
Torque to key	14 Nm
Relative humidity	95 %
Shear force to key	15.1 kN
Mechanical life operations	200000
