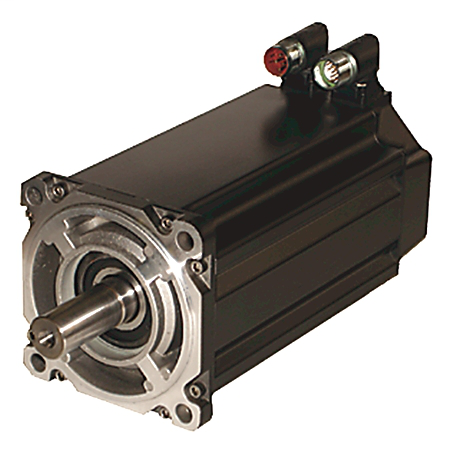

ROCKWELL AUTOMATION MPL-B680D-SJ74AA
ROCKWELL AUTOMATION MPL-B680D-SJ74AA
ROCKWELL AUTOMATION MPL-B680D-SJ74AA
ROCKWELL AUTOMATIONAvailable

Servo Motor, Rotary, Low Inertia, IEC, 480V AC, 1024 Sin/Cos, 2000 rpm Maximum, 62.8 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Single-Turn Absolute Encoder Feedback, 24V DC Brake, 215 mm Bolt Circle Metric Flange Mounting, Keyed Shaft,

Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 6 = 215 mm (8.46 in.), Stack Length 80 = 203.2 mm (8.0 in.), 2000 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
Product Code: MPL-B680D-SJ74AA
Partner cod.: MPL-B680D-SJ74AA
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
PRODUCT SELECTIONProduct TypeBulletin MPL - Low-Inertia Brushless Servo Motors ProductVoltage460 VFrame Size6 = 215 mm (8.46 in.)Magnet Stack Length80 = 203.2 mm (8.0 in.)RPM2000 RPMFeedbackSingle-turn High-resolution EncoderEnclosureKeyed Shaft ExtensionConnectorsSpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)Brake Option24 V DC Brake
Technical Specs
Specifications
Armature Voltage:460 V
Frame:6 = 215 mm (8.46 in.)
Speed Rating:2000 RPM
Product Selection
Product Type:Bulletin MPL - Low-Inertia Brushless Servo Motors Product
Voltage:460 V
Frame Size:6 = 215 mm (8.46 in.)
Magnet Stack Length:80 = 203.2 mm (8.0 in.)
RPM:2000 RPM
Feedback:Single-turn High-resolution Encoder
Enclosure:Keyed Shaft Extension
Connectors:SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
Brake Option:24 V DC Brake
Description
Servo Motor, Rotary, Low Inertia, IEC, 480V AC, 1024 Sin/Cos, 2000 rpm Maximum, 62.8 N-M, 1/4 Turn Right Angle Rotatable DINConnector, Hiperface Single-Turn Absolute Encoder Feedback, 24V DC Brake, 215 mm Bolt Circle Metric Flange Mounting, KeyedShaft, Standard
