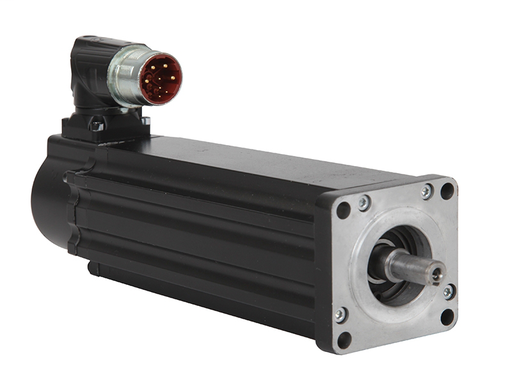

ROCKWELL AUTOMATION VPL-B1654D-QK12AS
ROCKWELL AUTOMATION VPL-B1654D-QK12AS
ROCKWELL AUTOMATION VPL-B1654D-QK12AS
ROCKWELL AUTOMATIONNot available

Servo Motor, Low Inertia, 480V AC, 165mm Bolt Circle Frame Size, 4 (Four) Magnet Stacks, 3000 RPM Rated Speed, Multi-turn 23 bit Safety Rated, Keyless Shaft, SpeedTec Right Angle DIN, No Holding Brake, IEC Metric Mounting Flange, IP66 Shaft Seal Fitted

VPL Low Inertia Motors, 480V AC, 165mm Bolt Circle Frame Size, 4 (Four) Magnet Stacks, D Winding, 3000 RPM Rated Speed, 23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution Encoder, Keyless Shaft, Single SpeedTec Din Connector, No Holding Brake, , IP66 Shaft Seal Fitted
Product Code: VPL-B1654D-QK12AS
Partner cod.: VPL-B1654D-QK12AS
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
PRODUCT SELECTIONBulletin NumberVPL Low Inertia MotorsVoltage Class480V ACFrame Size165mm Bolt Circle Frame SizeStack Length4 (Four) Magnet StacksRated SpeedD Winding, 3000 RPM Rated SpeedFeedback23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution EncoderShaft ExtensionKeyless ShaftConnectorsSingle SpeedTec Din ConnectorBrake OptionNo Holding BrakeMountingIEC Metric Mounting FlangeFactory OptionsIP66 Shaft Seal FittedTorque RatingTorque Rating
Technical Specs
Product Selection
Bulletin Number:VPL Low Inertia Motors
Voltage Class:480V AC
Frame Size:165mm Bolt Circle Frame Size
Stack Length:4 (Four) Magnet Stacks
Rated Speed:D Winding, 3000 RPM Rated Speed
Feedback:23 bit Single-turn, 12 bit Multi-turn, and 12 bit Secondary Channel SIL2 Pl(d) Safety Rated High Resolution Encoder
Shaft Extension:Keyless Shaft
Connectors:Single SpeedTec Din Connector
Brake Option:No Holding Brake
Mounting:IEC Metric Mounting Flange
Factory Options:IP66 Shaft Seal Fitted
Torque Rating:Torque Rating
Description
Servo Motor, Low Inertia, 480V AC, 165mm Bolt Circle Frame Size, 4 (Four) Magnet Stacks, 3000 RPM Rated Speed, Multi-turn 23 bit Safety Rated, Keyless Shaft, SpeedTec Right Angle DIN, No Holding Brake, IEC Metric Mounting Flange, IP66 Shaft Seal Fitted
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

vpl-in001_-en-p.pdf

knx-td001_-en-p.pdf
