PHOENIX CONTACT 0830931
PHOENIX CONTACTNon disponibile

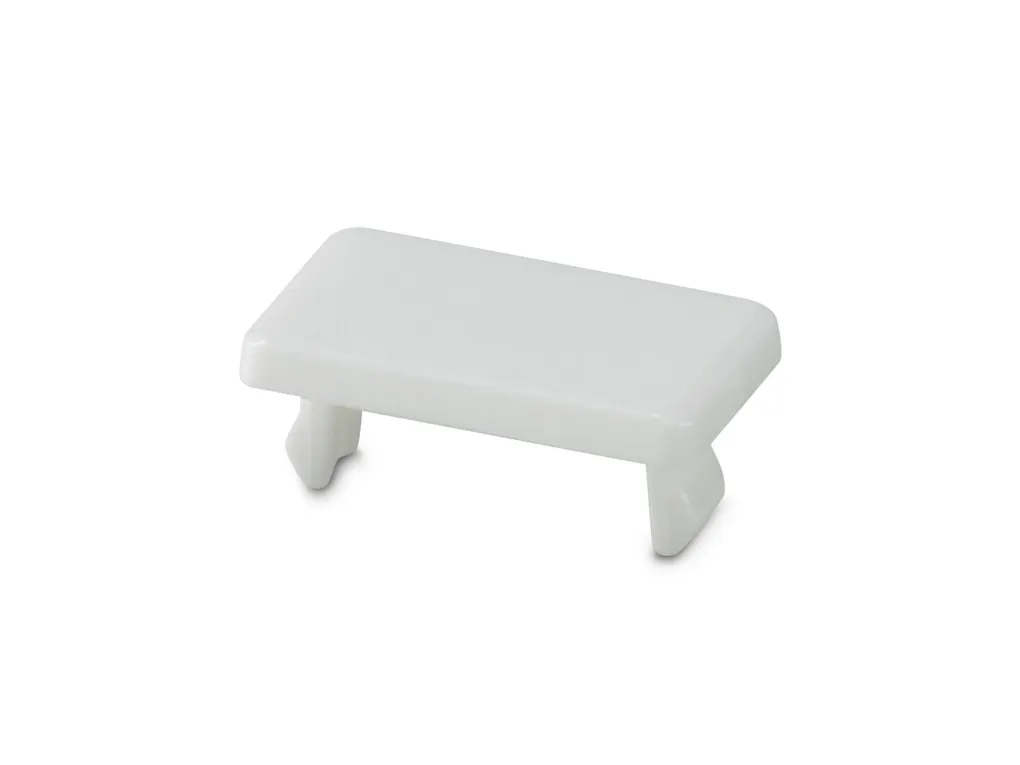

UM7-TM (6X10) - Marker for terminal blocks

Marker for terminal blocks, Strip, white, unlabeled, can be labeled with: TOPMARKNEO, TOPMARK LASER, BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: snapped, for terminal block width: 6 mm, lettering field size: 6x10mm, Number of individual labels: 20
Cod. Articolo: 0830931
Cod. Fornitore: 0830931
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Terminal marking
Pitch: 6 mm
Type: high
Area of application: Legrand
Marking
Number of individual labels: 20
Number of individual labels per row: 10
Number of marker strips: 2
DimensionsWidth: 6 mm
Length: 10 mm
Pitch: 6 mm
Material specificationsRoHS compliant: yes
Color: white
Material: PC
Flammability rating according to UL 94: V2
Components: free from silicone, halogen, and cadmium
Environmental and real-life conditionsTest for substances that would hinder coating with paint or varnish
Result: Test passed
UV resistance
Specification: ISO4892-2:2013-03 (following)
Result: Test passed
Test duration: 96 h
Wipe resistance of inscriptions
Specification: IEC 61010-1:2010-06
DINEN62208 (VDE0660-511):2012-06 (in parts)
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification: DIN50018:2013-05
Result: Test passed
Climate level: AHT 1.0 S
Cycles: 2
Salt spray test
Specification: DINEN60068-2-11:2000-02
Result: Test passed
Ambient conditions
Ambient temperature (operation): -40°C ... 120°C
Recommended ambient temperature (storage/transport): 23°C
Recommended humidity (storage/transport): 50 %
Standards and regulationsWipe resistance: DINEN61010-1 (VDE0411-1)
MountingMounting type: snapped
Specifiche
ECLASSECLASS-11.0: 27281101
ECLASS-12.0: 27281101
ECLASS-13.0: 27281101
ETIMETIM 9.0: EC000761
UNSPSCUNSPSC 21.0: 39131500
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05526.pdf

Technical_drawing_04233.pdf
