| Notes | General: In addition, shrink splice protection (Item No.: 1019676) or crimp splice protection (Item No.: 1019678) must be ordered separately. |
| Product properties | Type: Rail-mountable module Product type: Network distributor box Sensor type: Ethernet Connection profile: ST-Duplex No. of cable outlets: 2 No. of conductors: 12 Number of module slots: 6 Number of slots: 12 Type of the screw connection: M20 x 1.5 Housing type: DIN rail adapter Protective cover: yes Series: FDX 20 series Cable outlet: above and below |
| Electrical properties | Attenuation: ⤠0.3 dB Transmission medium: FO |
| Connection data | Connection technology Connection method: Splicing |

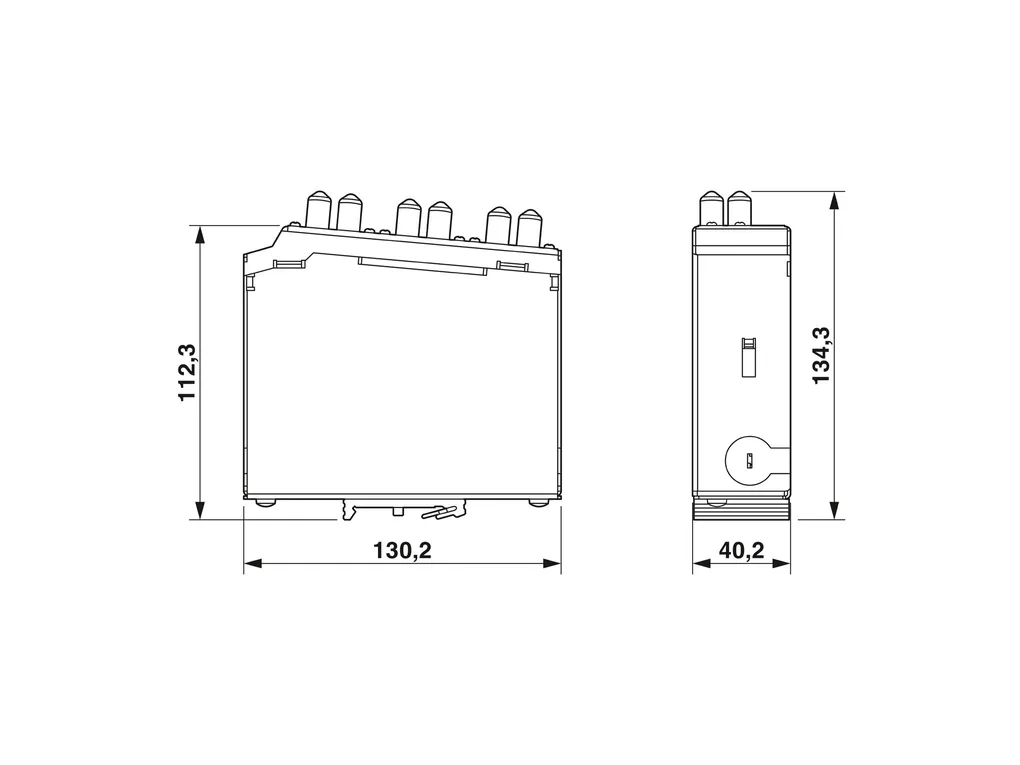

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ec3d9075c22edb4aa215ce8d7fae88a8/-S204x204-FJPG Width: 40 mm Height: 130 mm Depth: 115 mm Housing Housing width: 40 mm Mechanical characteristics Ferrule diameter: 2.50 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Ferrule material: Zirconia ceramics Housing surface material: Powder-coated, gray Housing material: Metal |
| Cable/line | Cable type: Multimode fiberglass 900µm Cable structure: semi-loose compact wires (STB) External cable diameter (): 6 mm ... 12 mm External cable diameter: ⤠12 mm (of 6mm) 6 mm ... 12 mm Wire diameter incl. insulation: 900 µm Individual wire diameter: 900 µm (250/900µm) Single wire, color: Assignment color-coded in accordance with IEC 60794-2 Halogen-free: yes Flame resistance: yes FO cable Number of fibers: 12 Fiber: GOF Fiber type: Multimode fiberglass 62.5/125µm Attenuation: ⤠0.3 dB (at 850 nm / 1300 nm) Return Loss: ⥠35 dB (at 850 nm / 1300 nm) Transmission medium: FO |
| Mechanical properties | Mechanical data Type of the screw connection: M20 x 1.5 Insertion/withdrawal cycles: ⥠500 |
| Characteristics | Attenuation: ⤠0.3 dB |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 (according to IEC 60529) IP20 Ambient temperature (operation): -25°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Ambient temperature (assembly): 0°C ... 50°C Resistance to UV radiation: yes |
| Standards and regulations | Resistance to UV radiation: yes Flame resistance: yes |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: Option for flexible replugging of DIN rail adapter Connection method: Splicing |
| ECLASS | ECLASS-11.0: 19170113 ECLASS-12.0: 19170113 ECLASS-13.0: 19170113 |
| ETIM | ETIM 9.0: EC002699 |
| UNSPSC | UNSPSC 21.0: 43223300 |
