| Notes | General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |

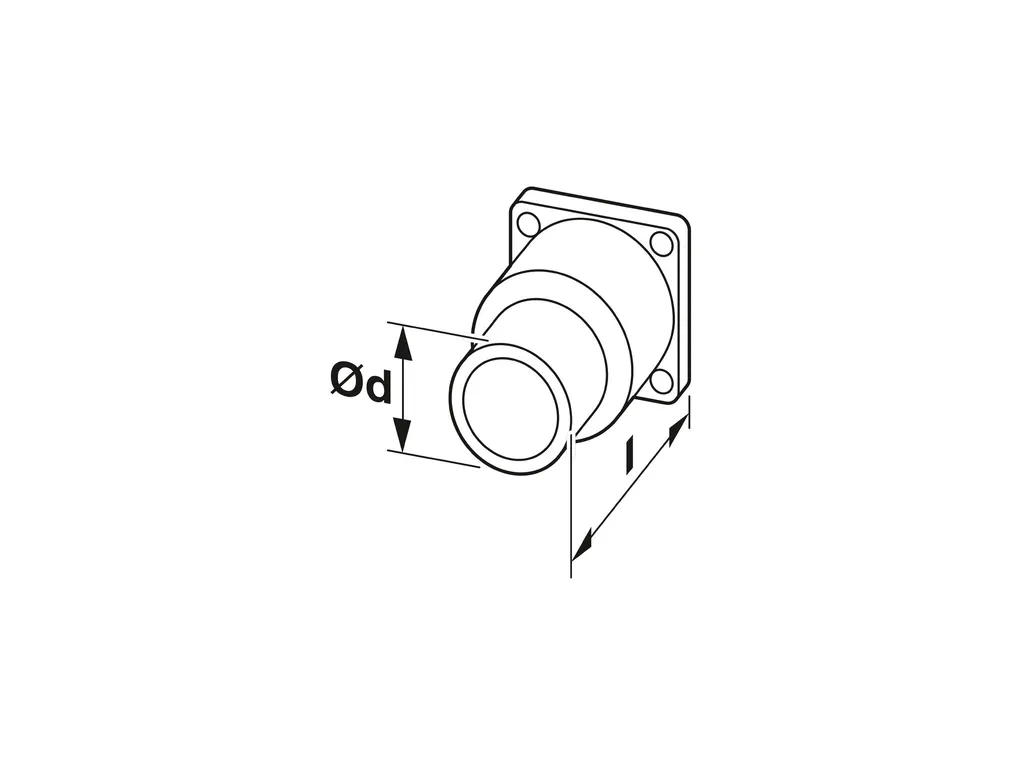

| Product properties | Product type: Panel mounting base Thread type: M12 |
| Material specifications | Material: Brass, nickel-plated Flammability rating according to UL 94: V0 Seal material: FKM Material of grip body: Brass, nickel-plated Material for screw connection: Brass, nickel-plated |
| Connector | Connection 1 Head design: Socket Head thread type: M12 Head locking type: Push-Pull |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection (when plugged in): IP67 (correctly plugged in and locked) Degree of protection: IP67 (correctly plugged in and locked) IP67, when in locked state Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-010 Note: Push-pull (type2) |
| Mounting | Mounting type: Front mounting M14 x 1 Connection method: THR- und Wellenlötkontakte |
| ECLASS | ECLASS-11.0: 27440224 ECLASS-12.0: 27440224 ECLASS-13.0: 27440224 |
| ETIM | ETIM 9.0: EC003556 |
| UNSPSC | UNSPSC 21.0: 39121400 |
