SACC-DSI-FSD-4CON-M16-L180 PP - Device connector, rear mounting

Device connector, rear mounting, 4-position, Socket, straight, M12-Push-Pull, coding: D, Rear mounting, M16 x 1.5, Wave soldering, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238102
Cod. Articolo: 1027696
Cod. Fornitore: 1027696
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Lock nut is included in the scope of delivery
Push-pull external locking
MountingMounting type: Rear mounting M16 x 1.5 With flat nut
Assembly instructions: With flat nut
Connection method: Wave soldering
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 4
Shielded: yes
Coding: D
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3

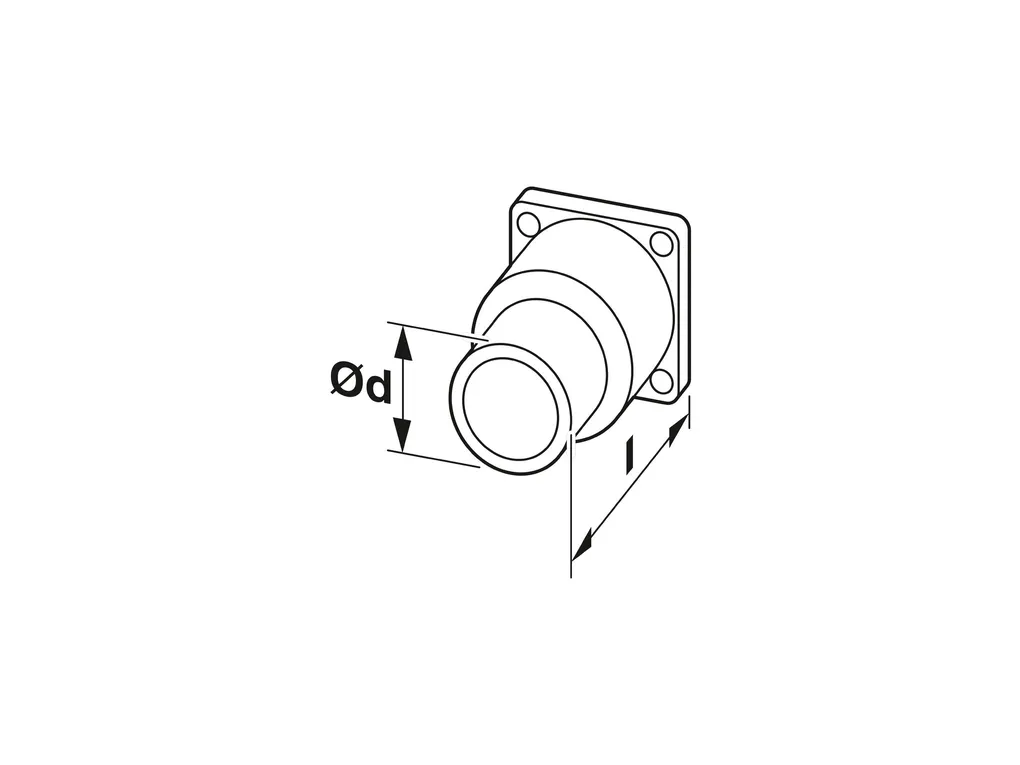

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9d11c5e183e47441b782fd1dd21a9541/-S204x204-FJPG
Length of the solder pin: 6 mm
Material specificationsMaterial: Brass, nickel-plated
Flammability rating according to UL 94: V0
Seal material: NBR/FKM
Material of grip body: Brass, nickel-plated
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 6.6
Material for screw connection: Brass, nickel-plated
Electrical propertiesRated surge voltage: 1.5 kV
Nominal voltage UN: 250 V
Nominal current IN: 4 A
Connection dataConductor connection
Connection method: Wave soldering
Contact connection type: Socket
Tightening torque: 3 Nm
4 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: Push-Pull
Coding: D
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-010
Note: Push-pull (type2)
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Descrizione
Sensor/actuator panel-mount connector, 4-pos., M12 push-pull, D-coded, rear/screw mounting with M16 thread, with straight solder connection
