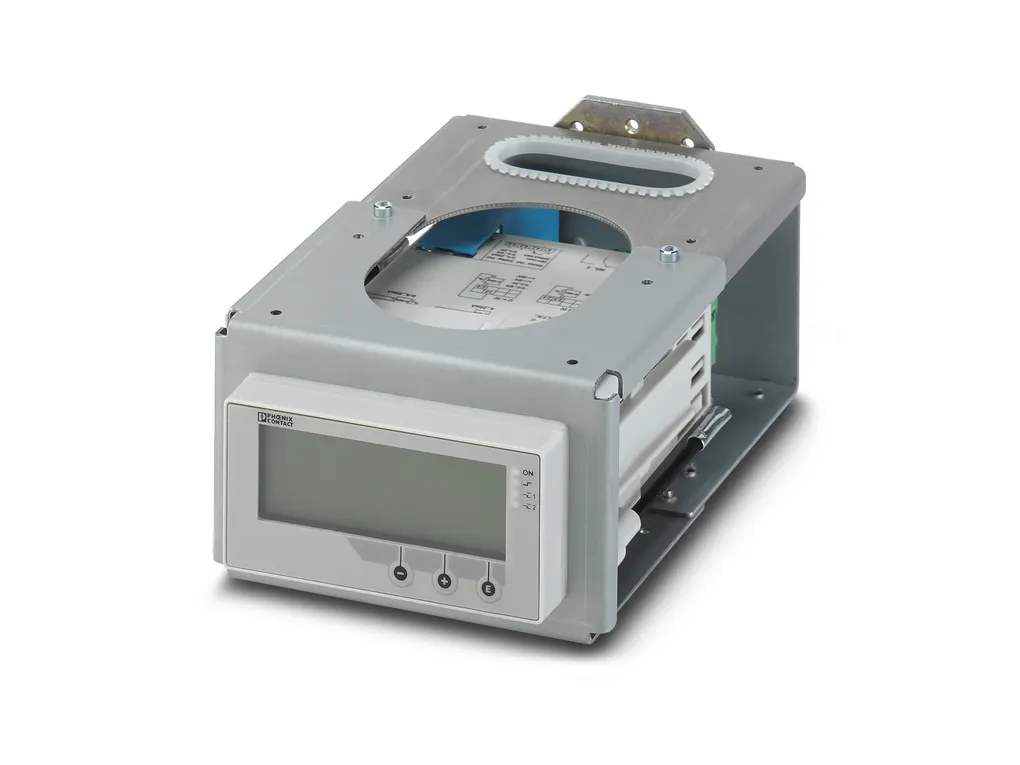

PHOENIX CONTACT 1032996
PHOENIX CONTACTNon disponibile

FA MCR-D-RM - DIN rail mounting frame

The DIN rail mounting frame can be used to mount a display on a DIN rail, e.g., in the control cabinet. The DIN rail mounting frame can be used with the following digital displays: FA MCR-(EX)-DS-I-I-OLP, FA MCR-(EX)-D-TUI-UI-2REL-UP
Cod. Articolo: 1032996
Cod. Fornitore: 1032996
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
Product propertiesProduct type: Assembly adapter
Connection dataTightening torque: 0.1 Nm ... 0.12 Nm
DimensionsWidth: 120 mm
Height: 73 mm
Depth: 125.2 mm (FA MCR-(EX)-DS-I-I-OLP)
157.4 mm (FA MCR-D-TUI-UI-2REL-UP)
174.4 mm (FA MCR-EX-D-TUI-UI-2REL-UP)
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -20°C ... 60°C
Ambient temperature (storage/transport): -40°C ... 85°C
Permissible humidity (operation): condensation permitted
Specifiche
ECLASSECLASS-11.0: 27142392
ECLASS-12.0: 27142392
ECLASS-13.0: 27142392
ETIMETIM 9.0: EC002295
UNSPSCUNSPSC 21.0: 31163000
Descrizione
The DIN rail mounting frame can be used to mount a display on a DIN rail, e.g., in the control cabinet. The DIN rail mounting frame can be used with the following digital displays: FA MCR-(EX)-DS-I-I-OLP, FA MCR-(EX)-D-TUI-UI-2REL-UP
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05952.pdf

Package_slip_01065.pdf

Technical_drawing_06155.pdf

Technical_drawing_06156.pdf

Technical_drawing_06157.pdf
