1071077 PHOENIX CONTACT - Technology Bsa

SPTAF 1/ 9-5,0-IL-EX - PCB terminal block

PCB terminal block, nominal current: 16 A, nominal cross section: 1.5 mm², number of rows: 1, number of positions per row: 9, product range: SPTAF 1/..-IL-EX, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.6 mm, number of solder pins per potential: 2, type of packaging: Tray

Cod. Articolo: 1071077

Cod. Fornitore: 1071077

PHOENIX CONTACT

Product properties	Product line: COMBICON Terminals S Product type: Printed circuit board terminal Product family: SPTAF 1/..-IL-EX Number of positions: 9 Pitch: 5 mm Number of rows: 1 Pin layout: Linear pinning Solder pins per potential: 2
Electrical properties	Nominal current I_N: 16 A Nominal voltage U_N: 137 V Degree of pollution: 3
Ex data	Ex approval Identification: 0344Ã¯ II 2G Ex eb IIC T6...T1 Gb EU-type examination certificate: SEV 19 ATEX 0159 U IECEx certificate: IECEx SEV 19.0026U
Connection data	Connection technology Nominal cross section: 1.5 mm² Conductor connection Connection method: Push-in spring connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² (When connecting and possibly adjusting a solid conductor of 1.5 mm², the mechanical lateral forces, which can affect the terminal block, have to be absorbed by lateral support.) 0.34 mm² ... 1.5 mm² (Push-in connection) Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 0.75 mm² (Conductor connection with open terminal point) 0.5 mm² ... 0.75 mm² (Push-in connection) Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 0.75 mm² (Conductor connection with open terminal point) 0.5 mm² ... 0.75 mm² (Push-in connection) Stripping length: 8 mm
Mounting	Mounting type: Wave soldering Pin layout: Linear pinning
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: hot-dip tin-plated Metal surface terminal point (top layer): Tin (2 - 4 µm Sn) Metal surface soldering area (top layer): Tin (2 - 4 µm Sn) Material data - housing Color (Housing): green (6021) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to EN60695-2-12: 850 Glow wire ignition temperature GWIT according to EN60695-2-13: 775 Temperature for the ball pressure test according to EN60695-10-2: 125°C Material data Ã¢ actuating element Color (Actuating element): orange (2003) Insulating material: PBT Insulating material group: IIIa CTI according to IEC 60112: 275 Flammability rating according to UL 94: V0
Notes	Note on application: Maximum permissible outer diameter of the wire insulation Ã¢¤ 3 mm Note on Ex protection: Certificate of conformity and EX certificate available upon request Further information is to be found in the installation notes.
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 5 mm Width [w]: 45 mm Height [h]: 10.6 mm Length [l]: 11 mm Installed height: 8 mm Solder pin length [P]: 2.6 mm Pin dimensions: 0.75 x 0.3 mm PCB design Hole diameter: 1.1 mm
Mechanical tests	Test for conductor damage and slackening Specification: IEC 60999-1:1999-11 Result: Test passed Repeated connection and disconnection Specification: IEC 60999-1:1999-11 Result: Test passed Pull-out test Specification: IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.2 mm² / solid / > 10 N 0.25 mm² / flexible / > 10 N 1.5 mm² / solid / > 40 N 1.5 mm² / flexible / > 40 N

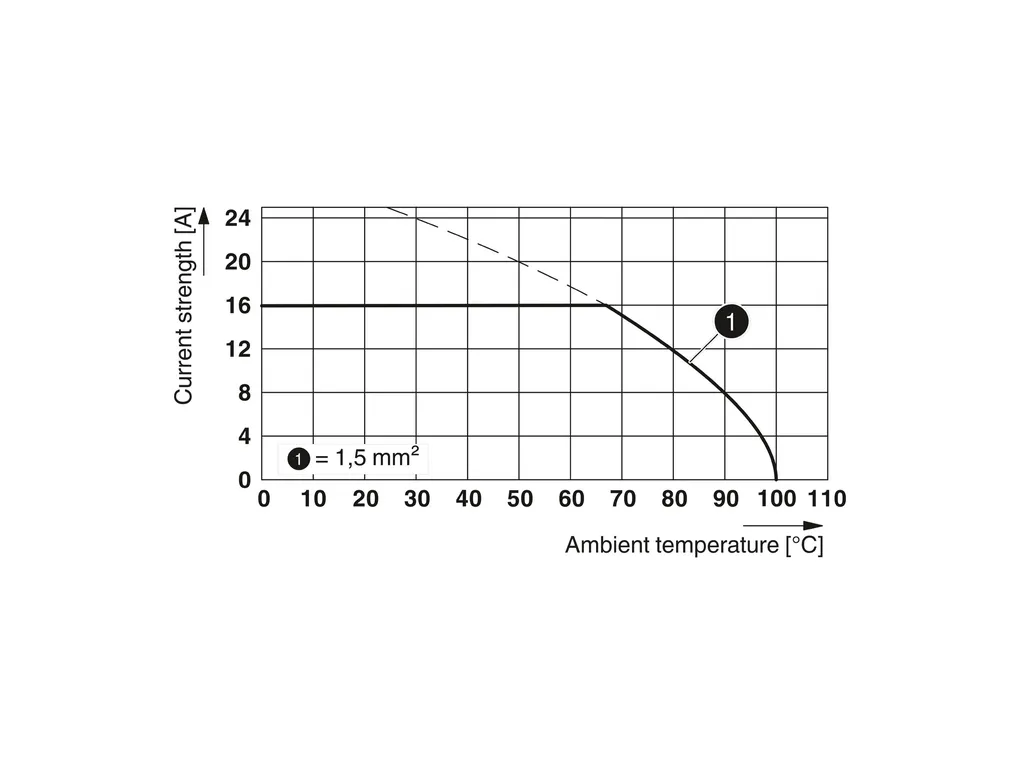

Electrical tests	Temperature-rise test Specification: IEC 60947-7-4:2013-08 Requirement temperature-rise test: The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. Short-time withstand current Specification: IEC 60947-7-4:2013-08 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >5MÃ©
Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min 5g (60.1Hz...150Hz) Amplitude: 0.35mm (10Hz...60.1Hz) Test duration per axis: 2.5 h Glow-wire test Specification: IEC 60695-2-10:2013-04 Temperature: 850°C Time of exposure: 5 s Aging Specification: IEC 60947-7-4:2013-08 Ambient conditions Ambient temperature (operation): -60°C ... 100°C Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Packaging specifications	Type of packaging: Tray
