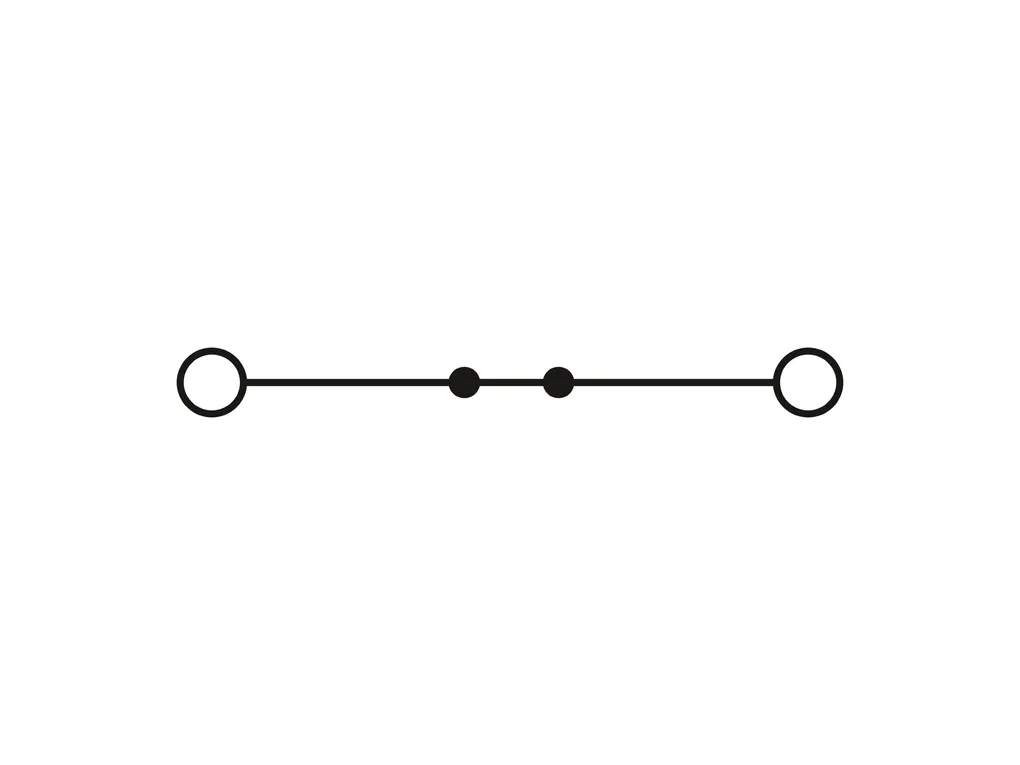

| Product properties | Product type: Feed-through terminal block Area of application: Railway industry Machine building Plant engineering Process industry Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 2.43 W |
| Connection data | Number of connections per level: 2 Nominal cross section: 16 mm² Level 1 above 1 below 1 Screw thread: M5 Tightening torque: 2.5 ... 3 Nm Stripping length: 14 mm Internal cylindrical gage: A7 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 1.5 mm² ... 25 mm² Cross section AWG: 14 ... 4 (converted acc. to IEC) Conductor cross section flexible: 1.5 mm² ... 25 mm² Conductor cross section, flexible [AWG]: 14 ... 4 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 1 mm² ... 16 mm² Flexible conductor cross section (ferrule with plastic sleeve): 1 mm² ... 16 mm² 2 conductors with same cross section, solid: 1 mm² ... 6 mm² 2 conductors with same cross section, flexible: 1 mm² ... 6 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 1 mm² ... 6 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.75 mm² ... 10 mm² Nominal current: 76 A Maximum load current: 101 A (with 25 mm² conductor cross section) Nominal voltage: 1000 V Note: Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. Nominal cross section: 16 mm² |
| Dimensions | Width: 12.2 mm End cover width: 2.2 mm Height: 55.5 mm Depth: 54.4 mm Depth on NS35/7,5: 55 mm Depth on NS35/15: 62.5 mm |
| Material specifications | Color: brown Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA |
| Mechanical properties | Mechanical data Open side panel: Yes |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
| Mounting | Mounting type: NS 35/7,5 NS35/15 |
| ECLASS | ECLASS-11.0: 27141120 ECLASS-13.0: 27250101 |
| ETIM | ETIM 9.0: EC000897 |
| UNSPSC | UNSPSC 21.0: 39121400 |
