1158981 PHOENIX CONTACT - Technology Bsa

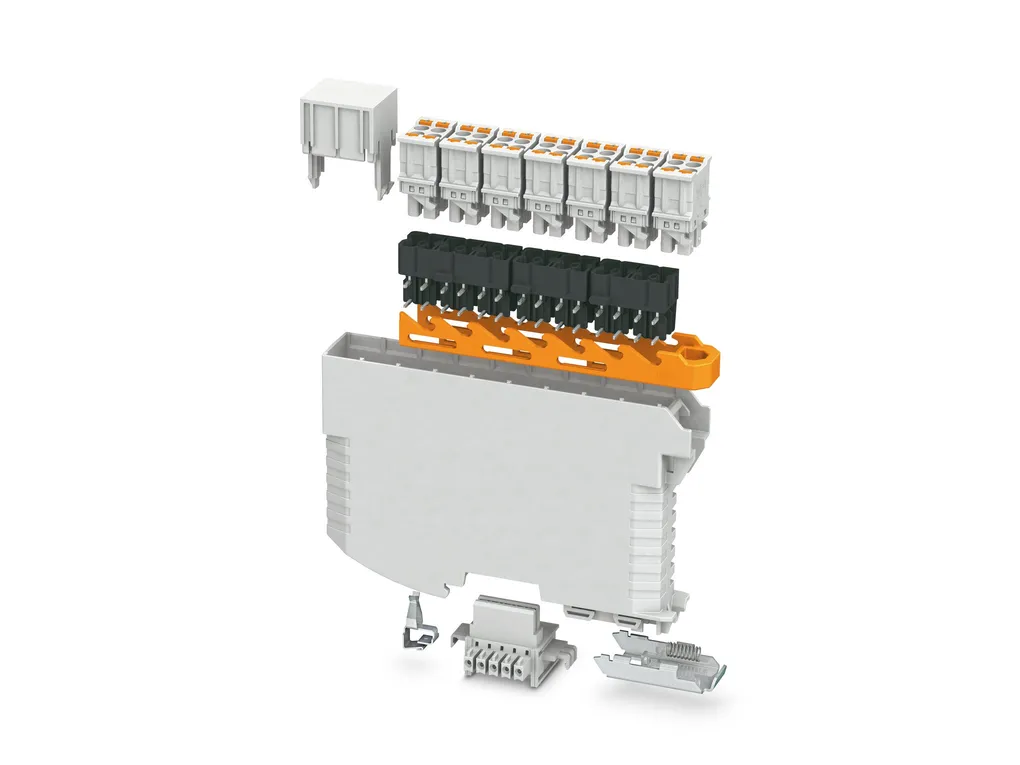

ME-IO 75,2 EB 10U TBUS 7035 - Mounting base housing

DIN rail housing, Lower housing part with metal foot catch, with vents, width: 75.87 mm, height: 120.6 mm, depth: 82.85 mm, color: light grey (7035), cross connection: DIN rail connector (optional), number of positions cross connector: 5 or 8

Cod. Articolo: 1158981

Cod. Fornitore: 1158981

PHOENIX CONTACT

Notes	General: Refer to the data sheet for the range in the download area. Material of contact pads for bus connector, galvanic gold (hard gold)
Product properties	Product type: Enclosure bottom part Max. number of positions: 192 (pitch: 3.45 mm) 128 (pitch: 5 mm) Type: Lower housing part with metal foot catch Housing type: DIN rail housing Ventilation openings present: yes Housing series: ME-IO
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/aca6bc240a07c14ca4022194123b18cc/-S204x204-FJPG Width: 75.87 mm Height: 120.6 mm Depth: 82.85 mm Depth from top edge of DIN rail: 76.25 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm
Material specifications	Color: light grey (7035) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide
Environmental and real-life conditions	Power dissipation single housing for 20°C Ambient temperature: 20°C Reduction factor: 1 Mounting position: vertical Power dissipation: 33.7 W Power dissipation single housing for 30°C Ambient temperature: 30°C Reduction factor: 0.82 Mounting position: vertical Power dissipation: 27.6 W Power dissipation single housing for 40°C Ambient temperature: 40°C Reduction factor: 0.62 Mounting position: vertical Power dissipation: 21 W Power dissipation single housing for 50°C Ambient temperature: 50°C Reduction factor: 0.46 Mounting position: vertical Power dissipation: 15.5 W Power dissipation single housing for 60°C Ambient temperature: 60°C Reduction factor: 0.3 Mounting position: vertical Power dissipation: 10.3 W Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min Amplitude: 0.15mm (10Hz...58.1Hz) Acceleration: 2g (58.1Hz...150Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850°C Time of exposure: 30 s Thermal stability / ball thrust test Specification: IEC 60695-10-2:2014-02 Temperature: 125°C Test duration: 1 h Force: 20 N Mechanical strength / tumbling barrel Specification: IEC 60068-2-31:2008-05 Height of fall: 50cm Frequency: 50 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Semi-sinusoidal Acceleration: 15g Shock duration: 11ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Test for substances that would hinder coating with paint or varnish Specification: VDMA24364:2018-05 Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMD1:1999-11 + AMD2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 %
PCB data	Number of PCB holders: 4 Type of PCB mount: Latching Total PCB surface: 34000 mm² Thickness of the PCB: 1.4 mm ... 1.8 mm
Mounting	Mounting type: DIN rail mounting Mounting position: Vertical (horizontal DIN rail)
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
