PHOENIX CONTACT 1163064
PHOENIX CONTACTNon disponibile

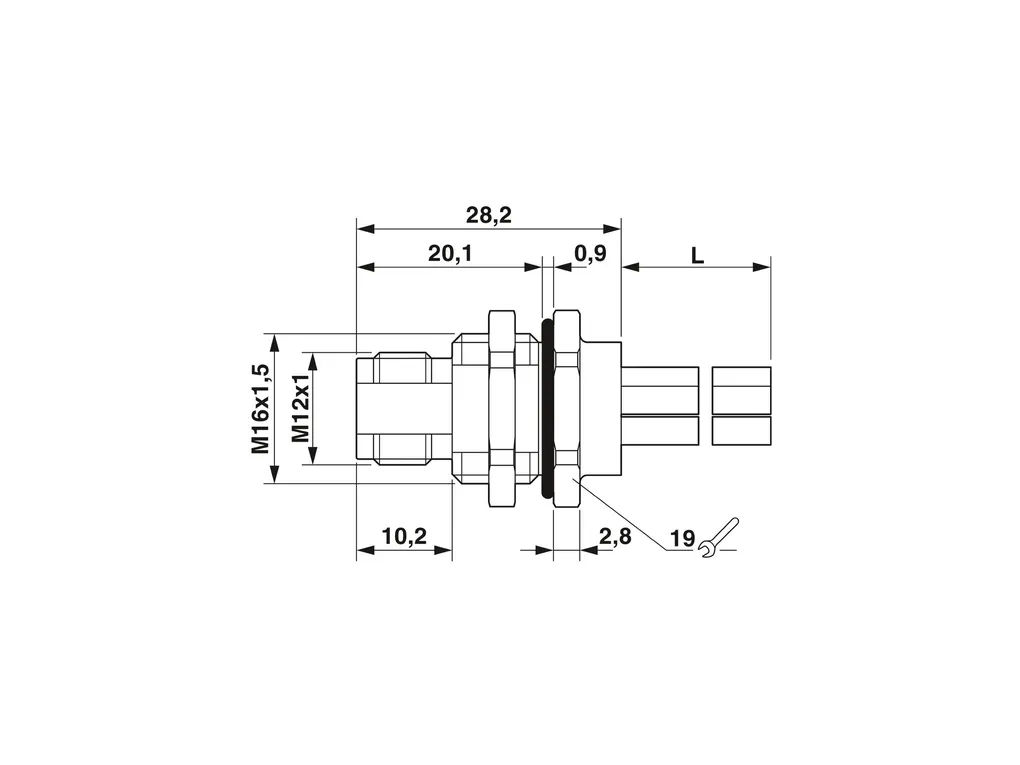

SACC-DSI-M12MSL-4FE-M16XL/1,0 - Device connector, rear mounting

Device connector, rear mounting, Power, 5-position, Pin, straight, M12, coding: L, Rear mounting, M16 x 1.5, Individual wires, cable length: 1 m, 2.50 mm2, PEX litz wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238570
Cod. Articolo: 1163064
Cod. Fornitore: 1163064
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
FE not connected to metal parts that can be touched, no protective function
Lock nut is included in the scope of delivery
MountingMounting type: Rear mounting M16 x 1.5 With flat nut
Assembly instructions: With flat nut
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Power
Number of positions: 5
No. of cable outlets: 1
Shielded: no
Coding: L
Thread type: M12
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA
Material for screw connection: Zinc die-cast, nickel-plated
Conductor material: Tin-plated Cu litz wires
Electrical propertiesRated voltage in acc. with IEC 61076-2-101: 63 V
Rated surge voltage: 1.5 kV
1.5 kV AC/DC
Nominal voltage UN: 63 VDC
Nominal current IN: 16 A
Test voltage: 1.5 kV
Test voltage Core/Core: 6 kV
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Pin
Conductor cross section: 2.5 mm²
Tightening torque: 0.8 Nm
1.3 Nm
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Coding: L
Cable/lineCable length: 1 m
Cable type: PEX litz wire
Signal type/category: Power
Single wire, color: brown 1, white 2, blue 3, black 4, pink FE
Cable cross section: 2.5 mm²
Conductor material: Tin-plated Cu litz wires
Material wire insulation: PE-X
Test voltage Core/Core: 6 kV
Halogen-free: according to IEC 60754-1
Flame resistance: in acc. with UL FT-2
Other resistance: Hydrolysis-resistant
Ambient temperature (operation): -25°C ... 90°C
-40°C ... 90°C (cable, fixed installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
IP65/IP67
Ambient temperature (operation): -40°C ... 85°C (without mechanical actuation)
-25°C ... 90°C
-40°C ... 90°C (cable, fixed installation)
Standards and regulationsFlame resistance: in acc. with UL FT-2
Other resistance: Hydrolysis-resistant
M12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-111
Note: In line with
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
