PHOENIX CONTACT 1187090
PHOENIX CONTACTNon disponibile

SACCBP-MS-5P-M16/1,0-PUR/VE100 - Device connector, rear mounting

Device connector, rear mounting, 5-position, PUR halogen-free, black-gray RAL 7021, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 1 m, 0.34 mm2, PUR halogen-free black
Cod. Articolo: 1187090
Cod. Fornitore: 1187090
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Safety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by PhoenixContact
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
MountingMounting type: Rear mounting M16 x 1.5 With flat nut
Assembly instructions: With flat nut
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 5
No. of cable outlets: 1
Shielded: yes
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: NBR
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Outer sheath, material: PUR
Conductor material: Bare Cu litz wires
Electrical propertiesRated surge voltage: 1.5 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 60 V
Nominal current IN: 4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed)
Max. conductor resistance: 57 Ω/km
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Pin
Conductor cross section: 5x 0.34 mm² (Signal line)
Tightening torque: 3 Nm
4 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
Max. bending cycles: 10000000
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: A
Connection 2
Head design: free cable end
Cable/lineCable length: 1 m
PUR halogen-free black[PUR]

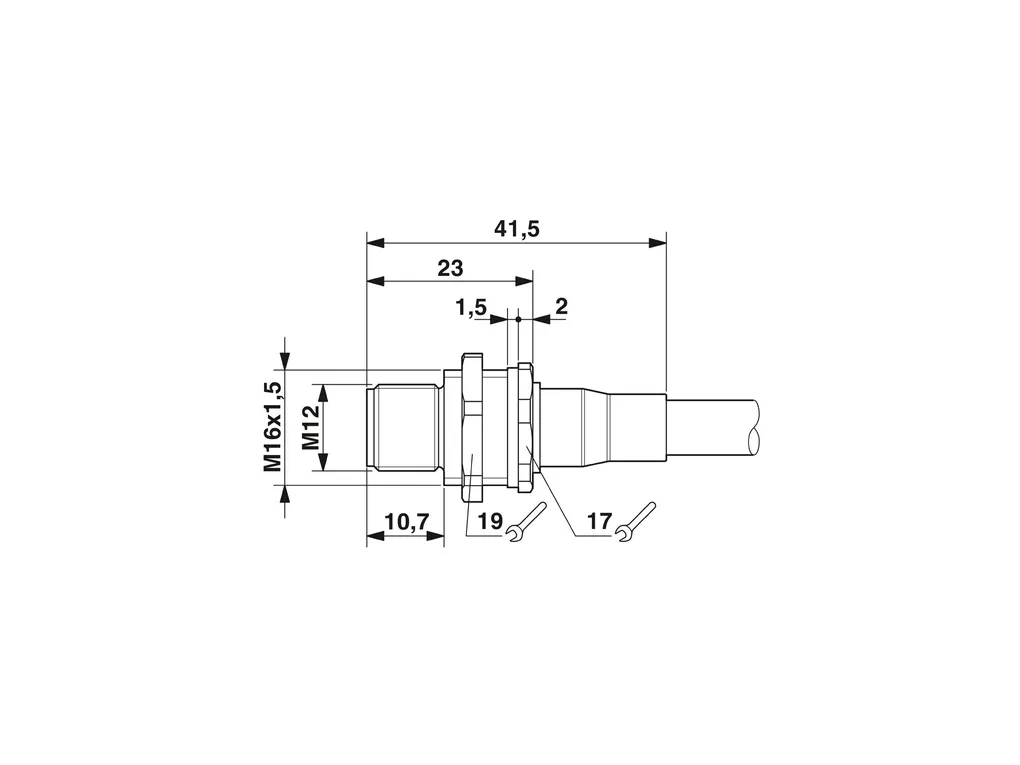

Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f6755140b03f3e4c93664b7e04b3af23/-S204x204-FJPG
Cable weight: 43 kg/km
UL AWM Style: 20549 / 10493 (80°C/300 V)
Number of positions: 5
Shielded: yes
Cable type: PUR halogen-free black[PUR]
Conductor structure signal line: 42x 0.10 mm
AWG signal line: 22
Conductor cross section: 5x 0.34 mm² (Signal line)
Wire diameter incl. insulation: 1.27 mm ±0.02mm (Signal line)
External cable diameter: 5.25 mm ±0.2mm
Outer sheath, material: PUR
External sheath, color: black-gray RAL 7021
Conductor material: Bare Cu litz wires
Material wire insulation: PP
Single wire, color: brown, white, blue, black, gray
Thickness, insulation: ≥ 0.21 mm
Thickness, outer sheath: approx. 0.5 mm
Overall twist: 5 wires around filler to the core
Optical shield covering: 80 %
Max. conductor resistance: max. 57 Ω/km (at 20°C)
Insulation resistance: 70 GΩ*km (at 20°C)
Nominal voltage, cable: 300 V (at 20°C)
Test voltage Core/Core: 3000 V (at 20°C)
Smallest bending radius, fixed installation: 26 mm
Smallest bending radius, movable installation: 52 mm (up to +60°C)
Max. bending cycles: 10000000
Halogen-free: in accordance with DINVDE0472 part815
in accordance with DINEN50267-2-1
Flame resistance: in accordance with UL758/1581 FT2
DINEN60332-2-2 (20s)
Resistance to oil: in accordance with DIN EN 60811-2-1
Other resistance: Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
Resistant to salt water
partly UV-resistant in accordance with DINENISO4892-2-A
abrasion-resistant
Special properties: Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Low adhesion surface
Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation)
-25°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
-25°C ... 85°C (Cable, flexible installation)
-40°C ... 85°C (cable, fixed installation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
