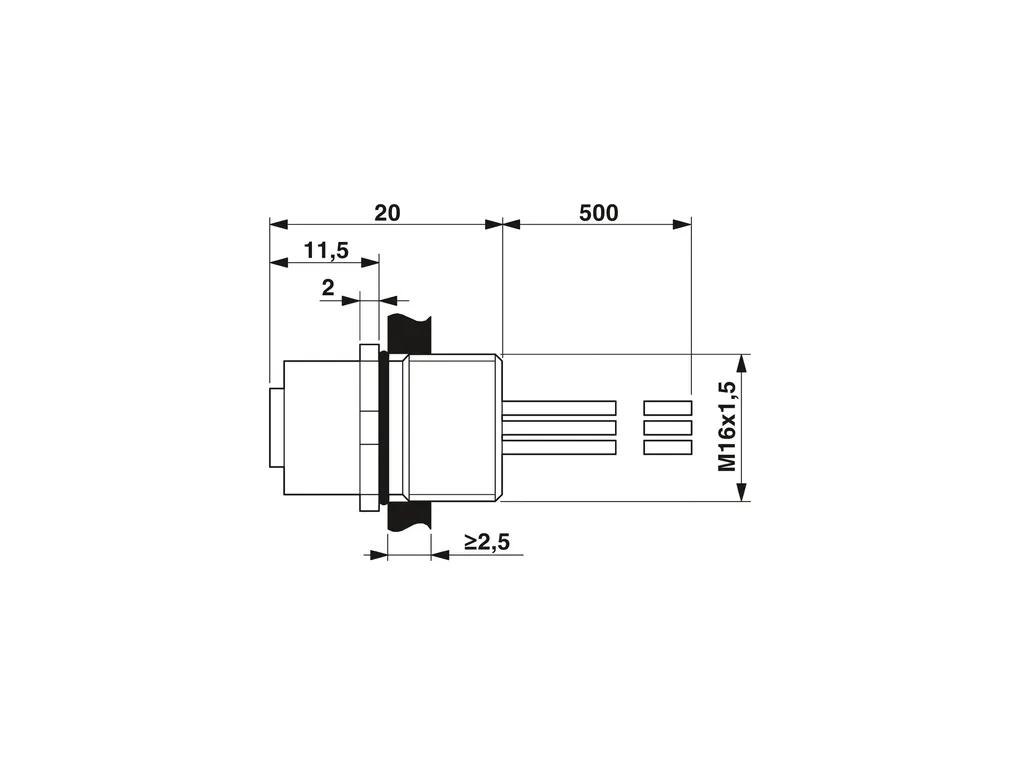

PHOENIX CONTACT 1401030
PHOENIX CONTACTNon disponibile

SACC-E-FS-12CON-M16/1,0 SCO - Device connector front mounting

Device connector front mounting, 12-position, Socket, straight, M12-SPEEDCON, coding: A, on free cable end, Front mounting, Individual wires, cable length: 1 m, 0.14 mm2, TPE litz wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238659
Cod. Articolo: 1401030
Cod. Fornitore: 1401030
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
NotesGeneral: Contact connection method: Crimp connection
MountingMounting type: Front mounting, M16 x 1.5 thread
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 12
No. of cable outlets: 1
Shielded: no
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: NBR
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Electrical propertiesContact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 V
Nominal current IN: 1.5 A
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Socket
Conductor cross section: 0.14 mm²
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: A
Connection 2
Head design: free cable end
Cable/lineCable length: 1 m
Cable type: TPE litz wire
Single wire, color: color-coded DIN47100
Cable cross section: 0.14 mm²
AWG signal line: 26
Material wire insulation: TPE
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -25°C ... 85°C (Socket)
-25°C ... 90°C (cable, fixed installation)
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 8.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00353.pdf

Approvals_01641.pdf

Design-In_00004.pdf

Manufacturer_declaration_05485.pdf

Manufacturer_declaration_07076.pdf

Technical_drawing_12160.pdf
