VS-VARAN-RJ45-Q - RJ45 connector

RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 6, CAT5, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 23, cable outlet: straight, VARAN

Cod. Articolo: 1402410

Cod. Fornitore: 1402410

PHOENIX CONTACT

Product properties	Type: RJ45 Product type: Data connector (cable side) Sensor type: VARAN Number of positions: 6 Connection profile: RJ45 No. of cable outlets: 1 Shielded: no Cable outlet: straight Positions/contacts: 8P6C Insulation characteristics Overvoltage category: I Degree of pollution: 2
Electrical properties	Rated voltage (III/3): 72 V (DC) Rated current: 1.75 A Contact resistance: < 20 mÃ© (Contact) < 100 mÃ© (shield) > 10 mÃ© (Wire Ã¢ IDC) < 0.005 Ã© (Litz wires Ã¢ IDC) Frequency range: 100 MHz Insulation resistance: > 500 MÃ© (100 V) Contact resistance per contact pair: < 20 Ã© Transmission medium: Copper Transmission characteristics (category): CAT5 Transmission speed: 100 Mbps
Connection data	Connection technology Connection method: Insulation displacement connection Connection cross section AWG: 26 ... 23 (flexible) 26 ... 23 Conductor cross section: 0.14 mm² ... 0.25 mm² (solid) 0.14 mm² ... 0.25 mm² (flexible) Cable outlet, angle: 180

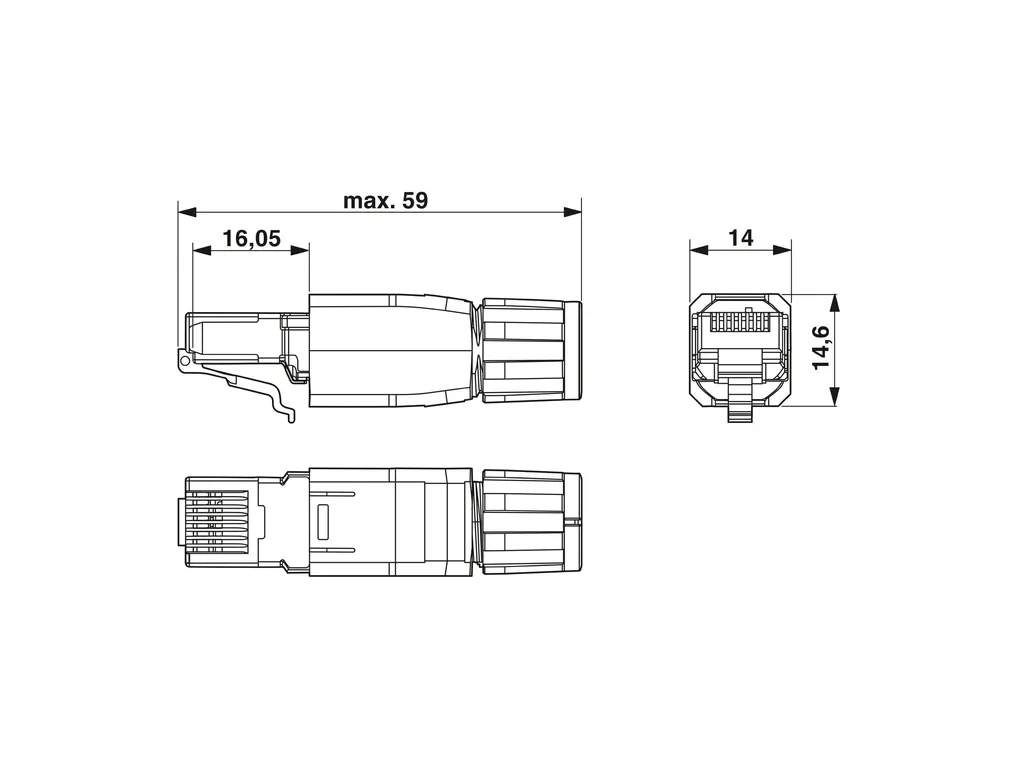

Dimensions	Width: 14 mm Height: 14.6 mm Length: 56 mm
Material specifications	Material: Plastic Flammability rating according to UL 94: V0 Cable seal material: NBR Contact material: CuSn Contact surface material: Au/Ni Contact carrier material: PC Locking latch material: PC Material for screw connection: PA Housing material: Plastic
Cable/line	External cable diameter (): 4.5 mm ... 8 mm External cable diameter: 4.5 mm ... 8 mm Test voltage Core/Core: 1000 V Test voltage Core/Shield: 1500 V Halogen-free: no
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢¥ 750 Insertion force per signal contact: < 20.00 N Extraction force per signal contact: < 20 N
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -10°C ... 60°C Ambient temperature (storage/transport): -40°C ... 70°C
Mounting	Mounting type: For field assembly Connection method: Insulation displacement connection
