| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 3.01, Order No. 2252 |
| Product properties | Type: RJ45 Product type: Data connector (cable side) Sensor type: Ethernet Number of positions: 8 Connection profile: RJ45 No. of cable outlets: 1 Shielded: yes Cable outlet: straight Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/3): 72 V (DC) Rated current: 1.75 A Nominal voltage UN: 48 V Nominal current IN: 1.75 A Transmission medium: Copper Transmission characteristics (category): CAT5 Transmission speed: 1 Gbps |
| Connection data | Connection technology Connection method: IDC fast connection Connection cross section AWG: solid flexible |

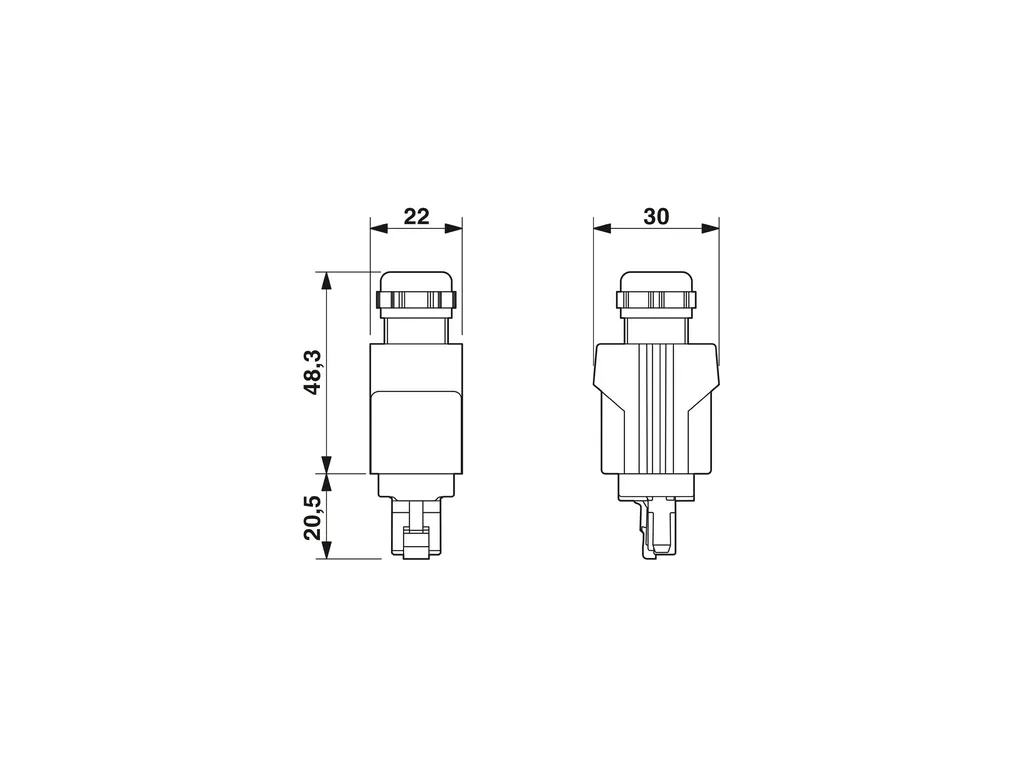

| Dimensions | Width: 22 mm Height: 30 mm Length: 57.7 mm |
| Material specifications | Color: silver Flammability rating according to UL 94: V0 Housing surface material: nickel-plated Cable seal material: TPE Contact material: Copper alloy Contact surface material: Gold over nickel Contact carrier material: PC O-ring material: NBR Housing material: Metal |
| Cable/line | External cable diameter (): 5 mm ... 8 mm External cable diameter: 5 mm ... 8 mm Cable cross section: 0.14 mm² |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 70°C |
| Standards and regulations | Standards/specifications: IEC PAS61076-3-117 |
| Mounting | Connection method: IDC fast connection |
| ECLASS | ECLASS-11.0: 27440101 ECLASS-12.0: 27440113 ECLASS-13.0: 27440113 |
| ETIM | ETIM 9.0: EC002636 |
| UNSPSC | UNSPSC 21.0: 39121400 |
