| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |

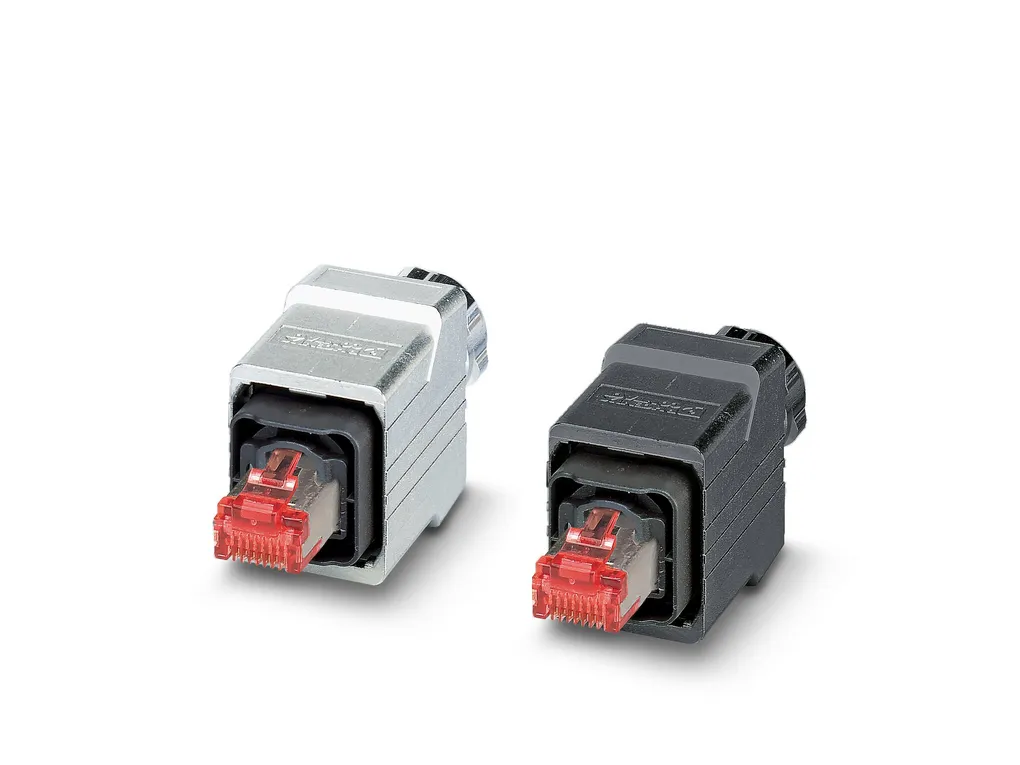

| Product properties | Type: RJ45 Product type: Data connector (cable side) Number of positions: 4 Connection profile: RJ45 8(4) No. of cable outlets: 1 Shielded: yes Cable outlet: straight Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/3): 72 V (DC) Rated current: 1.75 A Contact resistance: 0.001 é (Wire â IDC) 0.005 é (Litz wires â IDC) Transmission medium: Copper Transmission characteristics (category): CAT5 Transmission speed: 100 Mbps |
| Connection data | Connection technology Connection method: IDC fast connection Connection cross section AWG: 26 ... 22 (solid) 26 ... 22 (flexible) Conductor cross section: 0.13 mm² ... 0.32 mm² (solid) 0.14 mm² ... 0.36 mm² (flexible) |
| Dimensions | Width: 22 mm Height: 30 mm Length: 57.7 mm |
| Material specifications | Color: black Flammability rating according to UL 94: V0 Cable seal material: TPE Contact material: Copper alloy Contact surface material: Gold over nickel Contact carrier material: PC O-ring material: NBR Housing material: Plastic |
| Cable/line | External cable diameter (): 5 mm ... 8 mm Cable cross section: 0.14 mm² |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 70°C |
| Standards and regulations | Standards/specifications: IEC PAS61076-3-117 |
| Mounting | Connection method: IDC fast connection |
| ECLASS | ECLASS-11.0: 27440101 ECLASS-12.0: 27440113 ECLASS-13.0: 27440113 |
| ETIM | ETIM 9.0: EC002636 |
| UNSPSC | UNSPSC 21.0: 39121400 |
