SACC-E-M12MS-12CON-M16/0,5 VA - Device connector front mounting

Device connector front mounting, Universal, 12-position, Pin, straight, M12-Standard, coding: A, on free cable end, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.14 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238714

Cod. Articolo: 1405238

Cod. Fornitore: 1405238

PHOENIX CONTACT

Notes	General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Contact connection method: Crimp connection

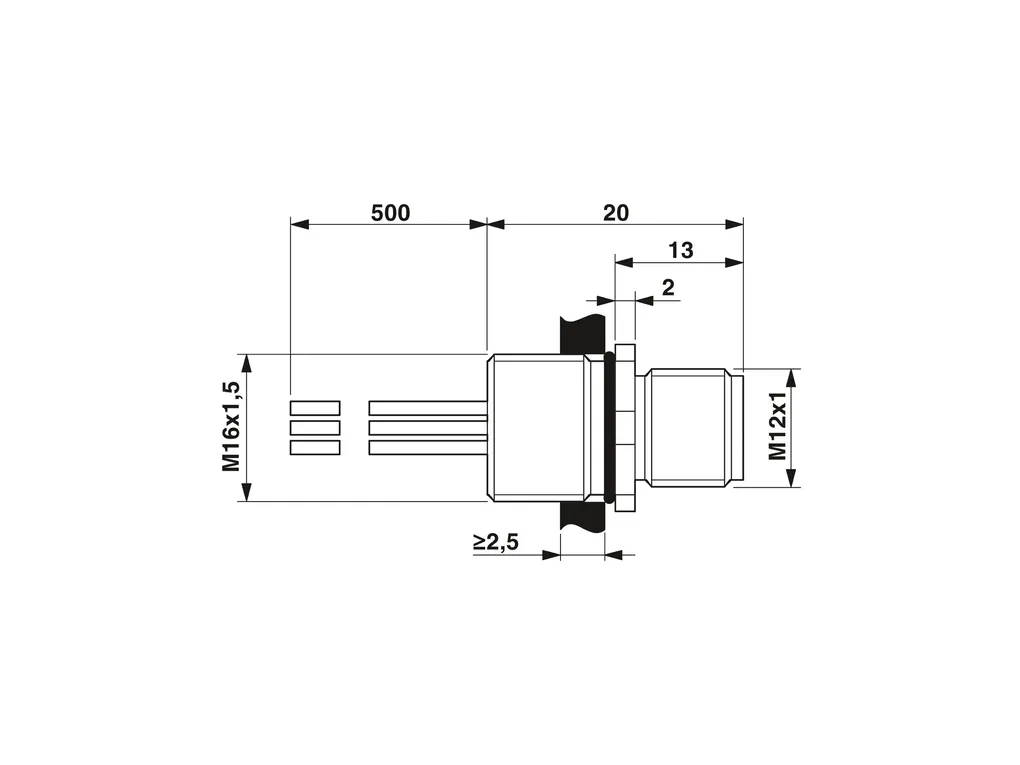

Mounting	Mounting type: Front mounting M16 x 1.5 Connection method: Individual wires
Product properties	Product type: Circular connectors (device side) Sensor type: Universal Number of positions: 12 Application: Signal No. of cable outlets: 1 Shielded: no Coding: A Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Seal material: FKM Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Stainless steel Conductor material: Tin-plated Cu litz wires
Electrical properties	Rated surge voltage: 0.8 kV Contact resistance: Ã¢¤ 3 mÃ© Insulation resistance: Ã¢¥ 100 MÃ© Nominal voltage U_N: 30 V (AC) 30 V (DC) Nominal current I_N: 1.5 A Max. conductor resistance: 142 Ã©/km
Connection data	Conductor connection Connection method: Individual wires Contact connection type: Pin Conductor cross section: 0.14 mm² Tightening torque: 3 Nm 4 Nm
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100
Connector	Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Head locking type: Standard Coding: A Connection 2 Head design: free cable end
Cable/line	Cable length: 0.5 m Cable type: TPE litz wire Signal type/category: Universal Wire diameter incl. insulation: 1.1 mm ±0.05 mm Single wire, color: brown, blue, white, green, pink, yellow, black, gray, red, violet, gray/pink, red/blue Cable cross section: 0.14 mm² Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Material wire insulation: TPE Thickness, insulation: 0.21 mm (Core insulation) Nominal voltage, cable: 300 V Test voltage, cable: 2000 VAC Cable resistance: Ã¢¤ 142 Ã©/km Cable insulation resistance: Ã¢¥ 20 MÃ©*km Ambient temperature (operation): -40°C ... 85°C (cable, fixed installation) -25°C ... 85°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65/IP67/IP69/IP69K IP65/IP67/IP69K Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) -25°C ... 85°C (Cable, flexible installation) -40°C ... 85°C (cable, fixed installation)
Standards and regulations	Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
