PHOENIX CONTACT 1405599
PHOENIX CONTACTNon disponibile

SACCBP-FS-8CON-M16/10,0-PUR SCO - Device connector, rear mounting

Device connector, rear mounting, 8-position, PUR, black-gray RAL 7021, Socket, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 10 m, 0.25 mm2, PUR halogen-free black, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238732
Cod. Articolo: 1405599
Cod. Fornitore: 1405599
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Lock nut is included in the scope of delivery
MountingMounting type: Rear mounting M16 x 1.5 With flat nut
Assembly instructions: With flat nut
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 8
No. of cable outlets: 1
Shielded: yes
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Outer sheath, material: PUR
Conductor material: Bare Cu litz wires
Electrical propertiesRated surge voltage: 0.8 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 V
Nominal current IN: 2 A
Max. conductor resistance: 78 Ω/km
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Socket
Conductor cross section: 0.25 mm²
Tightening torque: 3 Nm
4 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
Max. bending cycles: 4000000
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: A
Connection 2
Head design: free cable end
Cable/lineCable length: 10 m
PUR halogen-free black[PUR]

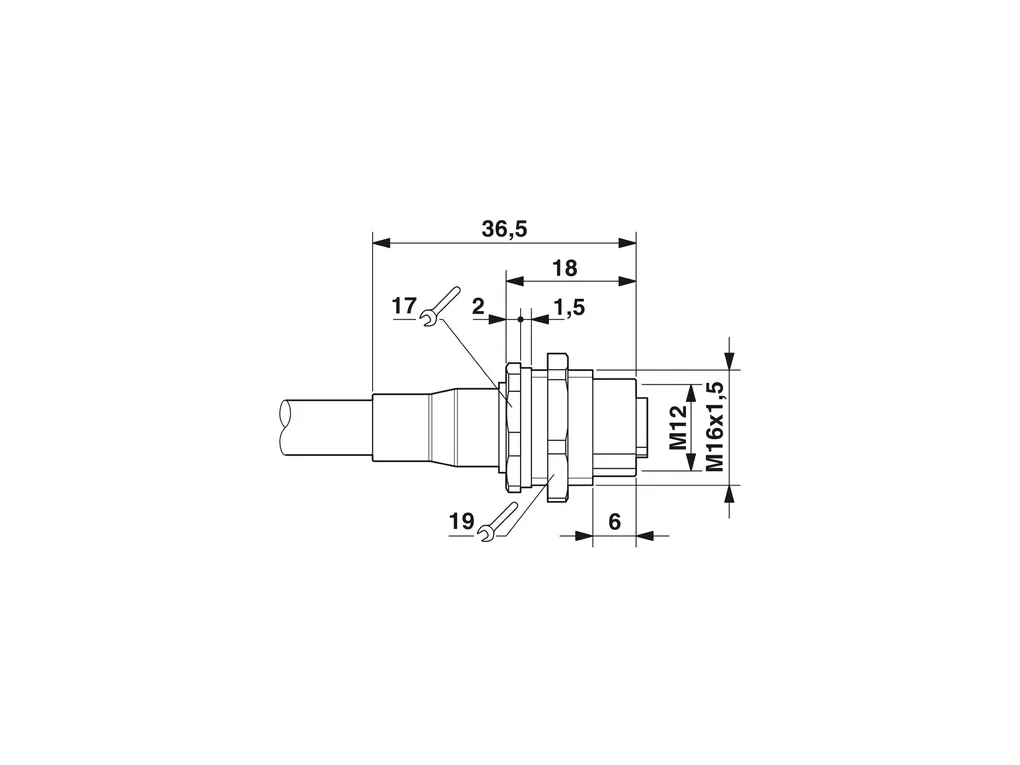

Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3f57b5317f5d4b4fb418a4409e500605/-S204x204-FJPG
Cable weight: 53 kg/km
UL AWM Style: 20549 / 10493 (80°C/300 V)
Number of positions: 8
Shielded: yes
Cable type: PUR halogen-free black[PUR]
Conductor structure signal line: 32x 0.10 mm
AWG signal line: 24
Conductor cross section: 8x 0.25 mm² (Signal line)
Wire diameter incl. insulation: 1.17 mm ±0.02mm
External cable diameter: 5.9 mm ±0.2mm
Outer sheath, material: PUR
External sheath, color: black-gray RAL 7021
Conductor material: Bare Cu litz wires
Material wire insulation: PP
Single wire, color: brown, white, green, yellow, gray, pink, blue, red
Thickness, insulation: approx. 0.2 mm
Thickness, outer sheath: approx. 0.5 mm
Overall twist: 8 wires around filler to the core
Optical shield covering: 85 %
Max. conductor resistance: ≤ 78 Ω/km (at 20°C)
Insulation resistance: ≥ 1 GΩ*km (at 20°C)
Nominal voltage, cable: ≤ 300 VAC
Test voltage: ≥ 3000 VAC (Spark test)
Test voltage Core/Shield: ≥ 2000 VAC (for 60 s)
Minimum bending radius, fixed installation: 5 x D
Minimum bending radius, flexible installation: 10 x D
Max. bending cycles: 2000000
Halogen-free: in accordance with DINVDE0472 part815
according to IEC 60754-1
Flame resistance: in acc. with UL FT-2
according to UL758/1581 (horizontal)
in accordance with UL758/1581 FT2
According to DIN EN60332-2-2 (20 s)
Resistance to oil: in accordance with IEC 60811-404
Other resistance: hydrolysis and microbe resistant
Resistant to salt water
low-abrasion
partly UV-resistant in accordance with DINENISO4892-2-A
Special properties: Flexible cable conduit capable
Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation)
-25°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
-25°C ... 85°C (Cable, flexible installation)
-40°C ... 85°C (cable, fixed installation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
Specifiche
ECLASSECLASS-11.0: 27440103
ECLASS-12.0: 27440103
ECLASS-13.0: 27440103
ETIMETIM 8.0: EC003570
UNSPSCUNSPSC 21.0: 39121400
