NBC-R4AC/10G-R4AC/10G-94F/6,0 - Patch cable

Patch cable, CAT6_A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 6.0m

Cod. Articolo: 1408366

Cod. Fornitore: 1408366

PHOENIX CONTACT

Product properties	Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 Shielded: yes
Signaling	Status display: No Status display present: No
Electrical properties	Rated voltage (III/3): 72 V (DC) Nominal voltage U_N: 48 V Nominal current I_N: 0.5 A Transmission medium: Copper Transmission characteristics (category): CAT6_A Transmission speed: 10 Gbps
Mechanical properties	Mechanical data Insertion force per signal contact: 50.00 N Extraction force per signal contact: 30 N
Connector	Connection 1 Type: Plug straight RJ45 Shielded: yes Insertion/withdrawal cycles: Ã¢¥ 750 750 Degree of protection: IP20 Number of positions: 8 Connection 2 Type: Plug straight RJ45 Shielded: yes Insertion/withdrawal cycles: Ã¢¥ 750 Number of positions: 8 Degree of protection: IP20

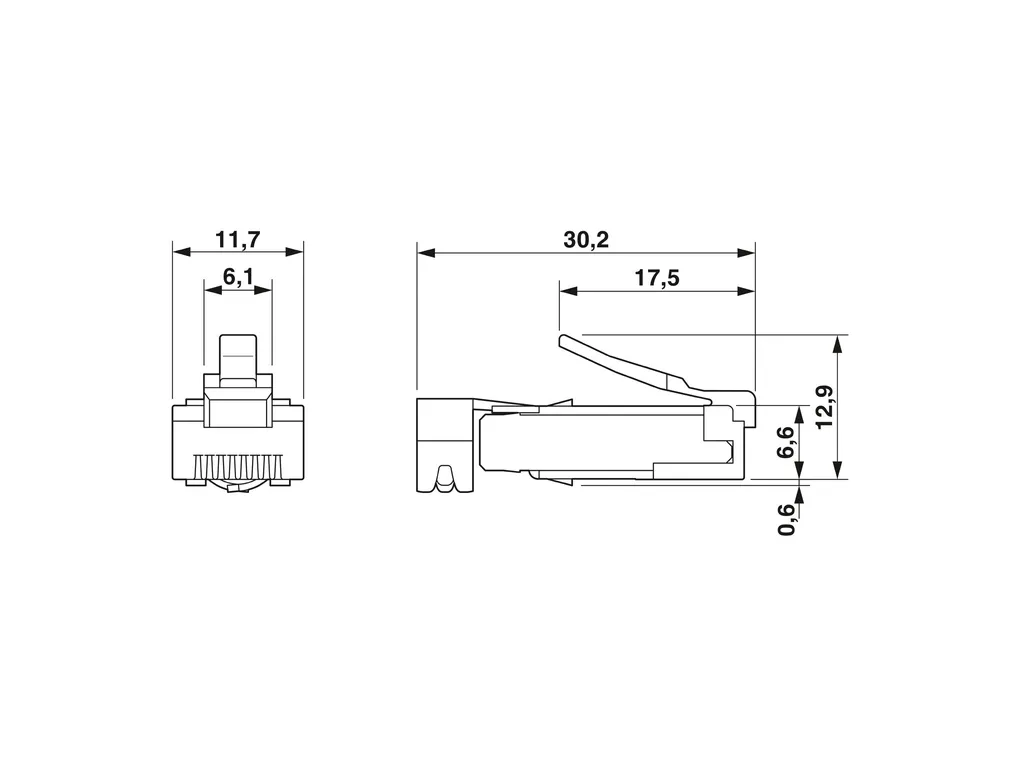

Cable/line	Cable length: 6.00 m Ethernet 10 Gbit[94F] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0314c1656ba7d3438a5ae0749b98c42e/-S204x204-FJPG Shielded: yes UL AWM Style: 20963 (80°C/30 V) Cable weight: 42 kg/km Cable type: Ethernet 10 Gbit Short symbol: 02YSC11Y Cable type (abbreviation): 94F Signal type/category: Ethernet CAT6_A, 10 Gbps Cable structure: 4x2xAWG26/7; S/FTP External cable diameter: 6.4 mm ±0.2mm Outer sheath, material: PUR External sheath, color: water blue RAL5021 Thickness, outer sheath: 0.65 mm Conductor material: Bare Cu litz wires Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 4x 2x 0.14 mm² Material wire insulation: Foamed PE Wire diameter incl. insulation: 1.04 mm Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Twisted pairs: 2 cores to the pair Type of pair shielding: Aluminum-lined foil Overall twist: 4 pairs for core Shielding: Tinned copper braided shield Optical shield covering: 70 % Nominal voltage, cable: Ã¢¤ 100 V Test voltage Core/Core: 700 V (50Hz, 1min.) Test voltage Core/Shield: 700 V (50Hz, 1min.) Cable insulation resistance: Ã¢¥ 500 MÃ©*km Wave impedance: 100 Ã© ±5Ã© (at 100 MHz) Loop resistance: Ã¢¤ 290.00 Ã©/km Cable capacity: 47 nF/km Signal runtime: 5.13 ns/m Tensile strength: Ã¢¤ 100 N Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Damping: 3.1 dB (with 1 MHz) 5.7 dB (at 4 ÃHz) 8 dB (at 8ÃHz) 8.9 dB (at 10 MHz) 11.2 dB (at 16 MHz) 12.6 dB (at 20ÃHz) 14.1 dB (at 25MHz) 15.8 dB (at 31.25ÃHz) 22.5 dB (at 62.5ÃHz) 28.7 dB (at 100 MHz) 41.4 dB (at 200 MHz) 46.6 dB (at 250MHz) 51.4 dB (at 300MHz) 60.1 dB (at 400MHz) 67.9 dB (at 500MHz) Near end crosstalk attenuation (NEXT): 75.3 dB (with 1 MHz) 66.3 dB (at 4 ÃHz) 61.8 dB (at 8ÃHz) 60.3 dB (at 10 MHz) 57.2 dB (at 16 MHz) 55.8 dB (at 20ÃHz) 54.3 dB (at 25MHz) 52.8 dB (at 31.25ÃHz) 48.4 dB (at 62.5ÃHz) 45.3 dB (at 100 MHz) 40.8 dB (at 200 MHz) 39.3 dB (at 250MHz) 38.1 dB (at 300MHz) 38.1 dB (at 400MHz) 38.1 dB (at 500MHz) Power-summated near end crosstalk attenuation (PSNEXT): 72.3 dB (with 1 MHz) 63.3 dB (at 4 ÃHz) 58.8 dB (at 8ÃHz) 57.3 dB (at 10 MHz) 54.2 dB (at 16 MHz) 52.8 dB (at 20ÃHz) 51.3 dB (at 25MHz) 49.9 dB (at 31.25ÃHz) 45.4 dB (at 62.5ÃHz) 42.3 dB (at 100 MHz) 37.8 dB (at 200 MHz) 36.3 dB (at 250MHz) 35.1 dB (at 300MHz) 33.3 dB (at 400MHz) 31.8 dB (at 500MHz) Return attenuation (RL): 20 dB (with 1 MHz) 23 dB (at 4 ÃHz) 24.5 dB (at 8ÃHz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20ÃHz) 24.2 dB (at 25MHz) 23.3 dB (at 31.25ÃHz) 20.7 dB (at 62.5ÃHz) 19 dB (at 100 MHz) 16.4 dB (at 200 MHz) 15.6 dB (at 250MHz) 15.6 dB (at 300MHz) 15.6 dB (at 400MHz) 15.6 dB (at 500MHz) Shield attenuation: Ã¢¥ 80 dB (at 30 ... 100 MHz) Halogen-free: according to IEC 60754-1 Resistance to oil: in accordance with DINEN60811-2-1 Flame resistance: according to IEC 60332-1-2 Ambient temperature (operation): -20°C ... 80°C (Cable, flexible installation) -40°C ... 80°C (cable, fixed installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 70°C (RJ45 connector) -20°C ... 80°C (cable, fixed installation)
