| Notes | General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Lock nut is included in the scope of delivery |

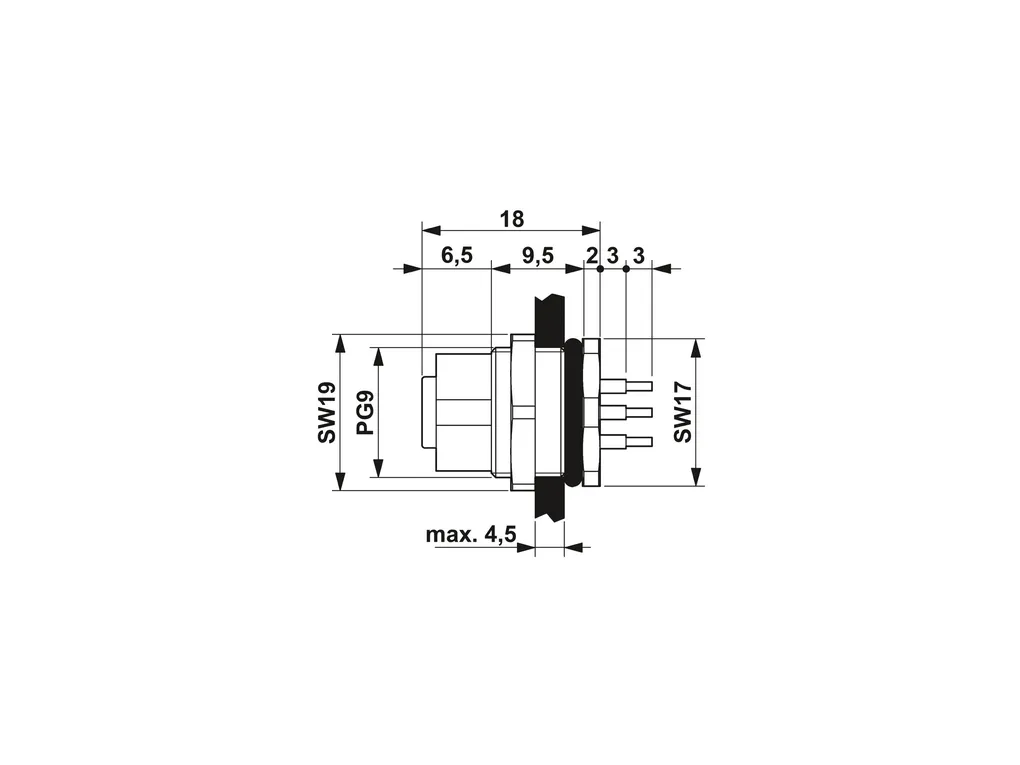

| Mounting | Mounting type: Rear mounting Connection method: Wave soldering |
| Product properties | Product type: Circular connectors (device side) Number of positions: 5 Coding: A Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 |
| Electrical properties | Nominal voltage UN: 60 V Nominal current IN: 4 A |
| Connection data | Conductor connection Connection method: Wave soldering Contact connection type: Socket |
| Connector | Connection 1 Head design: Socket Head thread type: M12 Coding: A |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
| ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
| ETIM | ETIM 8.0: EC002635 |
| UNSPSC | UNSPSC 21.0: 39121400 |
