| Notes | General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Product properties | Product type: Contact insert Sensor type: Ethernet Number of positions: 8 Application: Hybrid Seal present: no Shielded: yes Coding: Y Thread type: M12 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Contact resistance: ⤠3 mé Insulation resistance: 100 Mé Nominal voltage UN: 48 VAC (Power and data) 50 VDC (Power and data) Nominal current IN: 0.5 A (Data) 6 A (Power) Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) |
| Interfaces | Signal type/category: Ethernet CAT5 (IEC 11801:2002) |

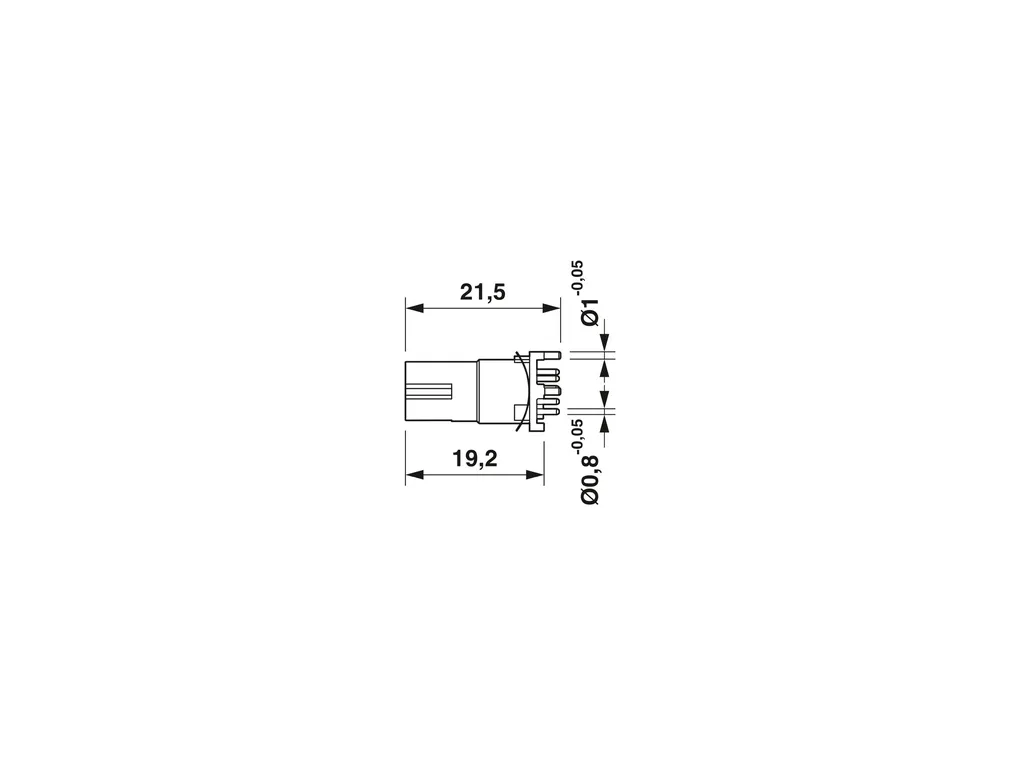

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/56bca5434576e240ac5e4d5969fdbed0/-S204x204-FJPG Length of the solder pin: 2.3 mm |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: CuZn Contact surface material: Au Contact carrier material: PPA |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: Y |
| Cable/line | Signal type/category: Ethernet CAT5 (IEC 11801:2002) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection (when plugged in): IP67 (correctly plugged in and locked) Degree of protection: IP67 (correctly plugged in and locked) IP67, when plugged in Ambient temperature (operation): -40°C ... 90°C |
| Mounting | Mounting type: PCB mounting Connection method: THR solder connection |
| Packaging specifications | Type of packaging: Belt Delivery state: with assembly pad |
| ECLASS | ECLASS-11.0: 27440223 ECLASS-12.0: 27440116 ECLASS-13.0: 27440223 |
| ETIM | ETIM 9.0: EC003557 |
| UNSPSC | UNSPSC 21.0: 39121400 |
