| Notes | General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Lock nut is included in the scope of delivery |
| Product properties | Product type: Panel mounting base Application: Railway applications Thread type: M12 |
| Material specifications | Material: Brass, nickel-plated Zinc die-cast (nickel-plated) Seal material: FKM Material for screw connection: Zinc die-cast, nickel-plated |
| Connector | Connection 1 Head design: Socket Head thread type: M12 |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection (when plugged in): IP67 (correctly plugged in and locked) Degree of protection: IP67 (correctly plugged in and locked) IP67, when in locked state Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) |
| Standards and regulations | M12 Standard designation: M12 connector Shock, vibration Standards/specifications: IEC 61076-2-101 EN50155 Note: In line with |

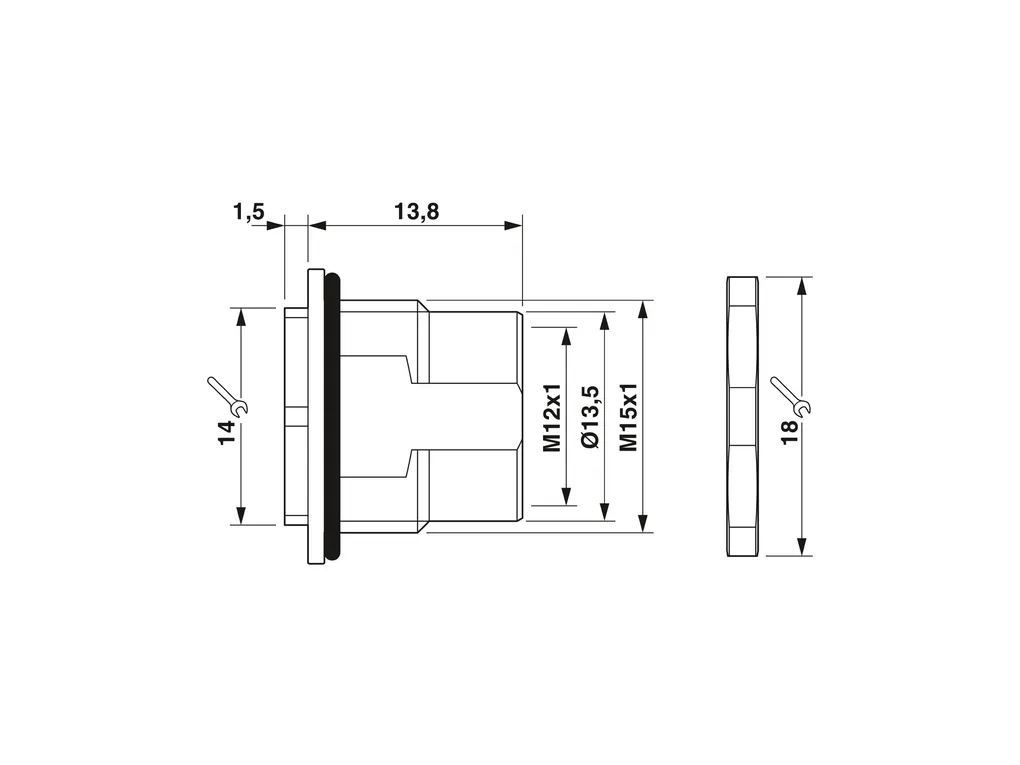

| Mounting | Mounting type: Rear mounting M15 x 1 Spacing between the top edge of the PCB and the back of the front plate: 6 mm Assembly instructions: Spacing between the top edge of the PCB and the back of the front plate: 6 mm Connection method: THR solder connection |
| ECLASS | ECLASS-11.0: 27440224 ECLASS-12.0: 27440224 ECLASS-13.0: 27440292 |
| ETIM | ETIM 9.0: EC002943 |
| UNSPSC | UNSPSC 21.0: 31171600 |
