| Product properties | Sensor type: CAN Bus/DeviceNet⢠Number of positions: 9 Connection profile: D-SUB 9 Shielded: yes Cable outlet: straight Insulation characteristics Overvoltage category: III Degree of pollution: 2 |
| Electrical properties | Transmission medium: Copper Max. conductor resistance: 78.4 é/km |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠200 Max. bending cycles: 5000000 |
| Material specifications | Color: Bare metallic Flammability rating according to UL 94: V0 Outer sheath, material: PUR Conductor material: Tin-plated Cu litz wires |
| Connector | Connection 1 Type: Plug straight Degree of protection: IP20 Connection 2 Type: Socket straight Degree of protection: IP20 |

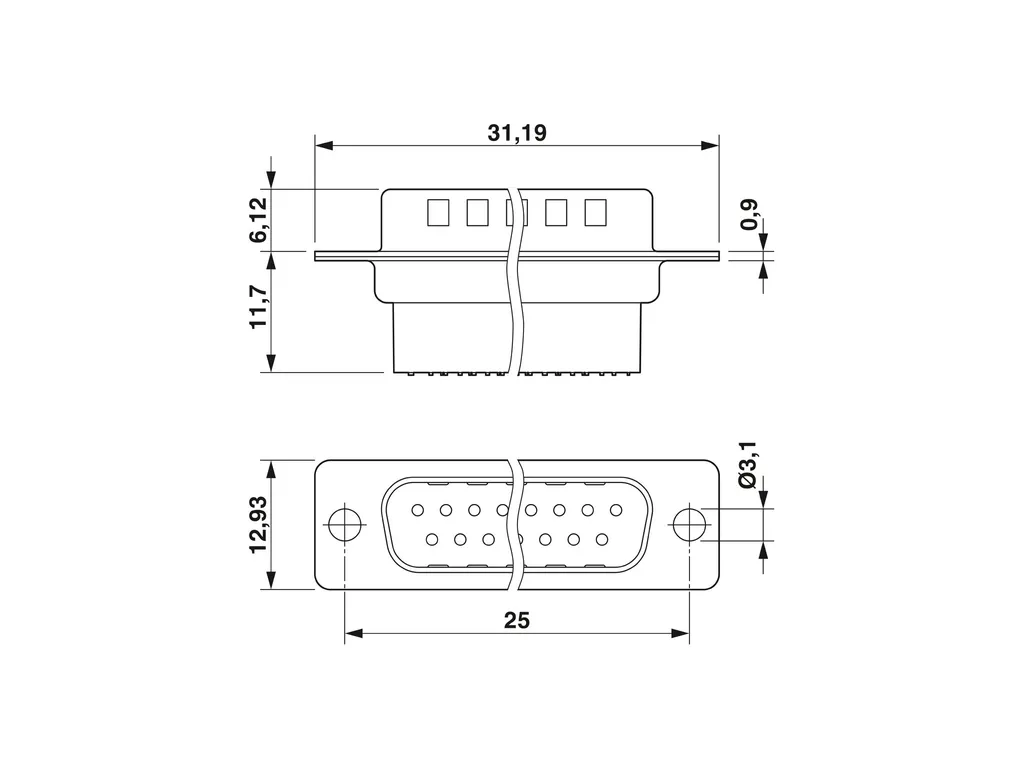

| Cable/line | CANopen Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fc78069afd463243880387c2e14a096e/-S204x204-FJPG Shielded: yes UL AWM Style: 21198 (80°C/300 V) Cable weight: 90 kg/km Cable type: CANopen®/DeviceNetâ¢, PUR, violet Cable type (abbreviation): 920 Signal type/category: CANopen® DeviceNet⢠Cable structure: 2xAWG24/19+2xAWG22/19 External cable diameter: 6.7 mm ±0.3mm Outer sheath, material: PUR External sheath, color: red lilac RAL 4001 Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 19x 0.13 mm AWG signal line: 24 Conductor structure, voltage supply: 19x 0.15 mm Conductor cross section: 2x 0.25 mm² (Data cable) AWG power supply: 22 Material wire insulation: Foamed PE (Data cable) PE (Power supply) Wire diameter incl. insulation: 1.95 mm ±0.05 mm (Data cable) 1.4 mm ±0.05 mm (Power supply) Single wire, color: red-black, blue-white Twisted pairs: 2 cores to the pair Type of pair shielding: Plastic-coated aluminum foil, aluminum side outside Overall twist: 2 pairs around a drain wire in the center to the core Shielding: Tinned copper braided shield Optical shield covering: 80 % Nominal voltage, cable: ⤠300 V (Peak value, not for high-power applications) Test voltage Core/Core: 2000 V (50Hz, 1min.) Test voltage Core/Shield: 2000 V (50Hz, 1min.) Cable insulation resistance: ⥠5 Gé*km (Data cable) ⥠5 Gé*km (Power supply) Wave impedance: 120 é ±10% (with 1 MHz) Loop resistance: ⤠181.80 é/km (Data cable) ⤠114.80 é/km (Power supply) Cable capacity: nom. 40 nF/km (Data cable) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Number of bending cycles: 5000000 Minimum bending radius, drag chain applications: 10 x D Bending radius: 70 mm Traversing path: 4.5 m Traversing rate: 3 m/s Acceleration: 3 m/s² Ambient temperature (operation): -20°C ... 60°C (cable, drag chain applications) -30°C ... 70°C (Cable, flexible installation) -30°C ... 70°C (Cable, flexible installation) -40°C ... 80°C (cable, fixed installation) Damping: ⤠22.9 dB/km (with 1 MHz) ⤠16.4 dB/km (At 500 kHz) ⤠9.5 dB/km (At 125 kHz) Halogen-free: in accordance with DINVDE0472 part815 according to IEC 60754-1 Flame resistance: UL1581, Section 1060 and UL2556, Section 9.3 (FT1) UL1581, Section 1100 and UL2556, Section 9.1 (HFT/FT2) IEC 60332-1-2 in accordance with ISO6722-1 5.22 (UN ECE-R 118.01) Other resistance: Low adhesion |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C -20°C ... 75°C |
| ECLASS | ECLASS-11.0: 27060307 ECLASS-12.0: 27060307 ECLASS-13.0: 27060307 |
| ETIM | ETIM 8.0: EC002599 |
| UNSPSC | UNSPSC 21.0: 26121600 |
